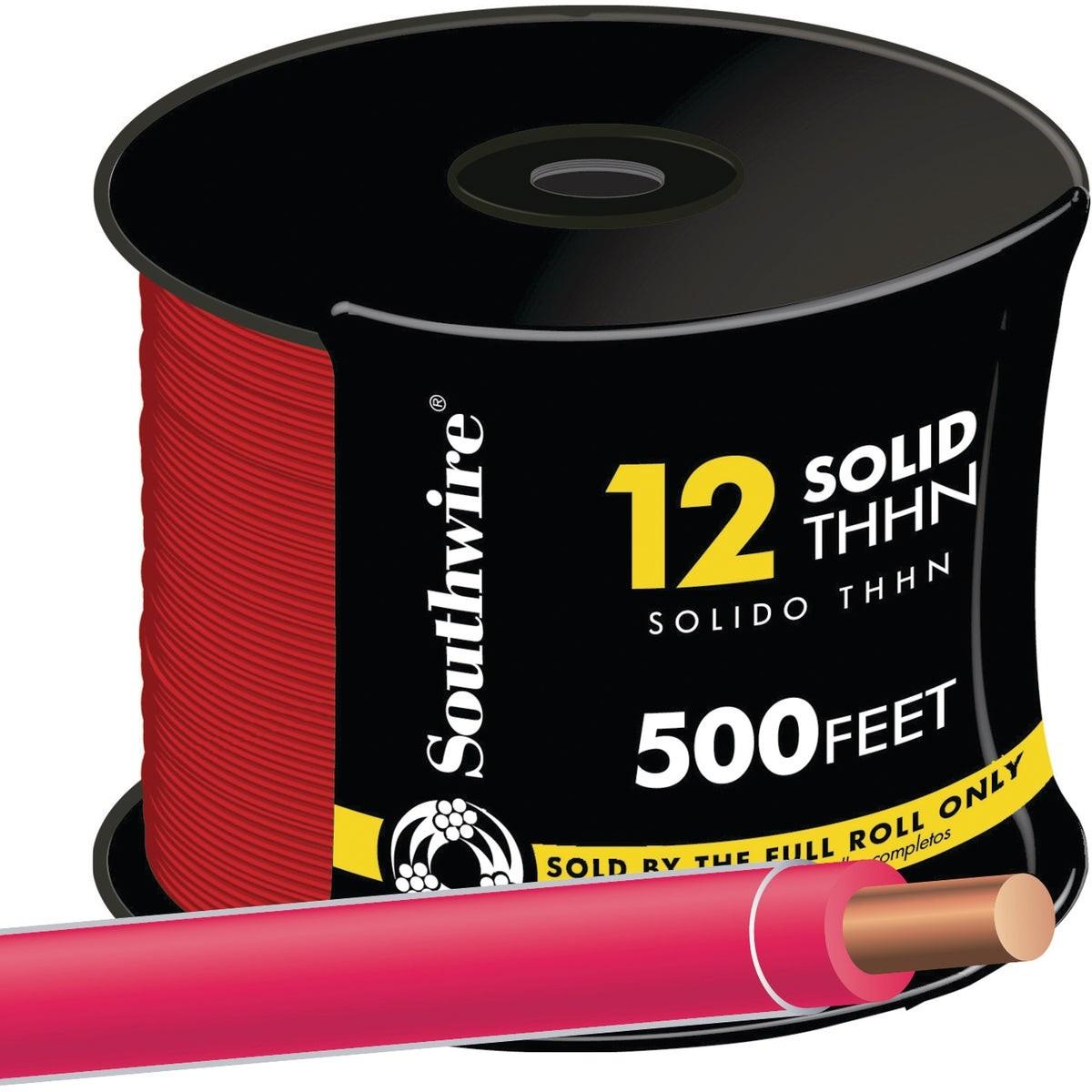

Southwire 11589958 Thhn Wire 12 Awg Solid Red 500 Ft

Product Description

The SOUTHWIRE 11589958 is a 500-foot roll of 12 AWG solid red THHN building wire rated for general-purpose power, lighting, and control wiring applications. The conductor is solid copper with flame-retardant PVC insulation and a nylon outer jacket, rated at 600 volts and 90 degrees C. The nylon jacket adds mechanical protection and makes pulling through conduit easier. This wire is installed by licensed electricians in residential and light commercial construction and renovation projects.

This wire is suited for use in conduit and raceways in standard building wiring applications. The 12 AWG solid conductor is a common choice for branch circuits including lighting runs and general-purpose receptacle circuits. The red jacket color supports phase identification and circuit organization in multi-wire installations.

Key Features

• Solid copper conductor — 12 AWG
• 600-volt rating with 90 degrees C thermal rating
• Flame-retardant PVC insulation with nylon jacket
• Resistant to oil, gasoline, chemicals, and abrasion
• Suitable for installation in conduit and raceways
• UL listed for general-purpose building wire applications

Compatibility

Designed for use in conduit and raceway systems in residential and commercial building wiring where THHN or THWN-rated 12 AWG solid wire is specified.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before making any connections. This wire is rated for conduit and raceway use — do not install as open or exposed wiring where not permitted by code. Verify conduit fill calculations before pulling to avoid exceeding allowable fill ratios.

Technical Specifications

• Conductor Size: 12 AWG
• Conductor Type: Solid Copper
• Wire Type: THHN
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation: Flame-Retardant PVC with Nylon Jacket
• Color: Red
• Length: 500 feet
• Weight: 12.225 pounds
• UL Listed: Yes

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 11589958
