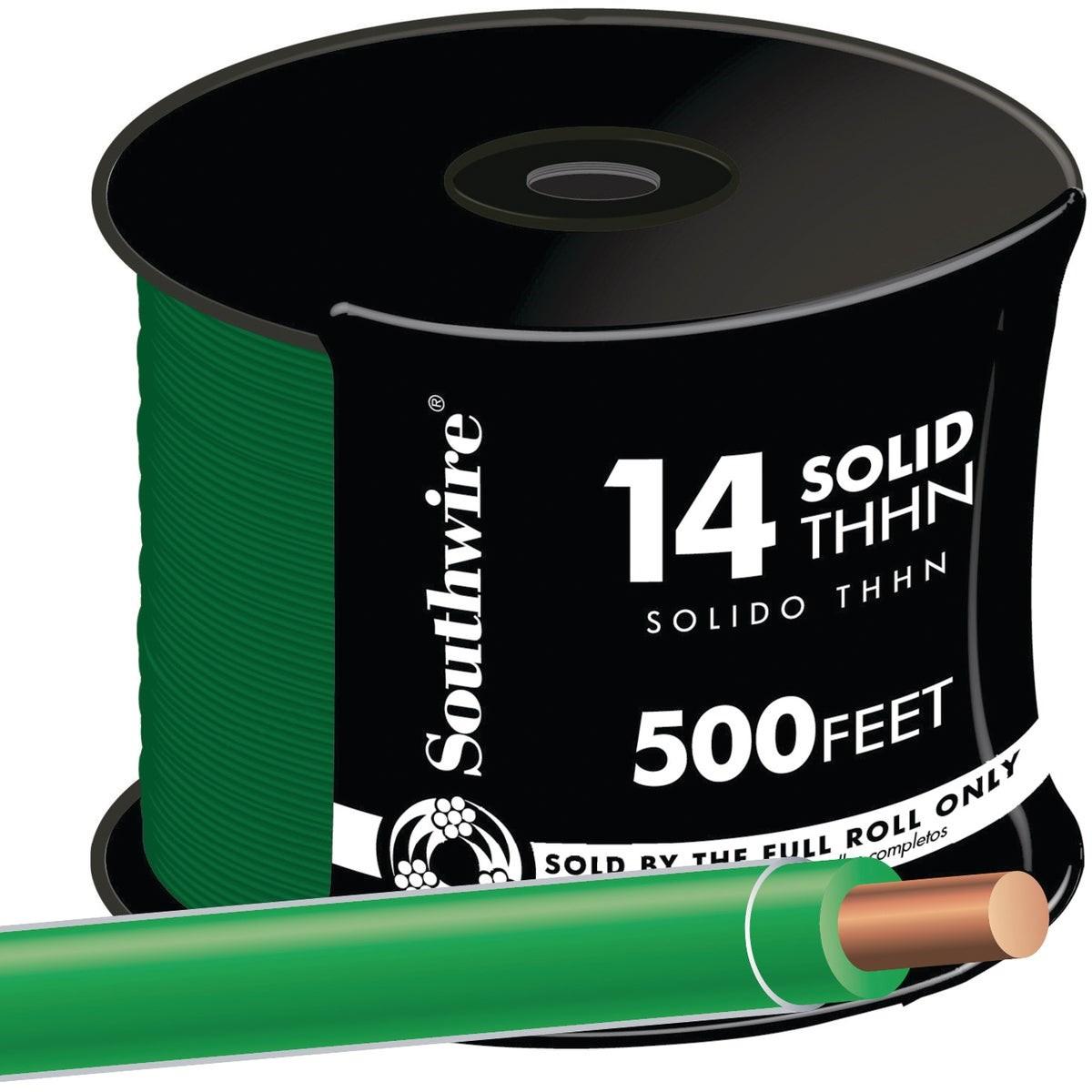

Southwire 11583258 Solid Thhn Wire 14 Awg 500 Ft Green

Product Description

The SOUTHWIRE 11583258 is a 500-foot roll of 14 AWG solid green THHN building wire rated for 600 volts and 90 degrees C. It is constructed with solid copper conductors, flame-retardant PVC insulation, and a nylon outer jacket. This wire is designed for power distribution, lighting circuits, and control wiring in commercial and residential construction. Licensed electricians install this wire during rough-in and finish wiring phases. The solid conductor format is well-suited for terminal connections requiring a firm, stable contact point. The green color coding identifies it as an equipment grounding conductor in standard electrical installations.

This wire is used in residential and commercial building wiring applications where a code-compliant grounding conductor is required. It is suitable for installation inside conduit and raceways as specified by NEC guidelines. The 500-foot roll length is practical for larger jobs, reducing the number of splices needed on long runs. It performs reliably in environments where exposure to oil, gasoline, chemicals, or abrasion is a concern, making it appropriate for industrial conduit runs as well as standard construction wiring.

Key Features

• 600-volt rating supports standard branch circuit and feeder applications
• Rated to 90 degrees C for use in higher-temperature environments
• Solid copper conductor provides stable terminal and lug connections
• Flame-retardant PVC insulation with nylon jacket resists oil, gasoline, chemicals, and abrasion
• Green jacket identifies the conductor as an equipment ground per NEC color conventions
• UL listed for use in conduit and raceway installations

Compatibility

Designed for use as an equipment grounding conductor in conduit and raceway wiring systems where 14 AWG solid THHN wire is specified per NEC requirements.

Installation Notes

This wire is installed by licensed electricians in accordance with the National Electrical Code. De-energize all circuits and verify zero voltage with a meter before working on any connected wiring. Pull wire through conduit or raceways using appropriate wire-pulling lubricant to avoid jacket damage on long runs. Do not exceed the wire's 600-volt and 90-degree-C ratings for the intended circuit application.

Technical Specifications

• Wire Gauge: 14 AWG
• Conductor Type: Solid Copper
• Wire Type: THHN
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation Material: Flame-Retardant PVC with Nylon Jacket
• Color: Green
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 7.95 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 11583258
