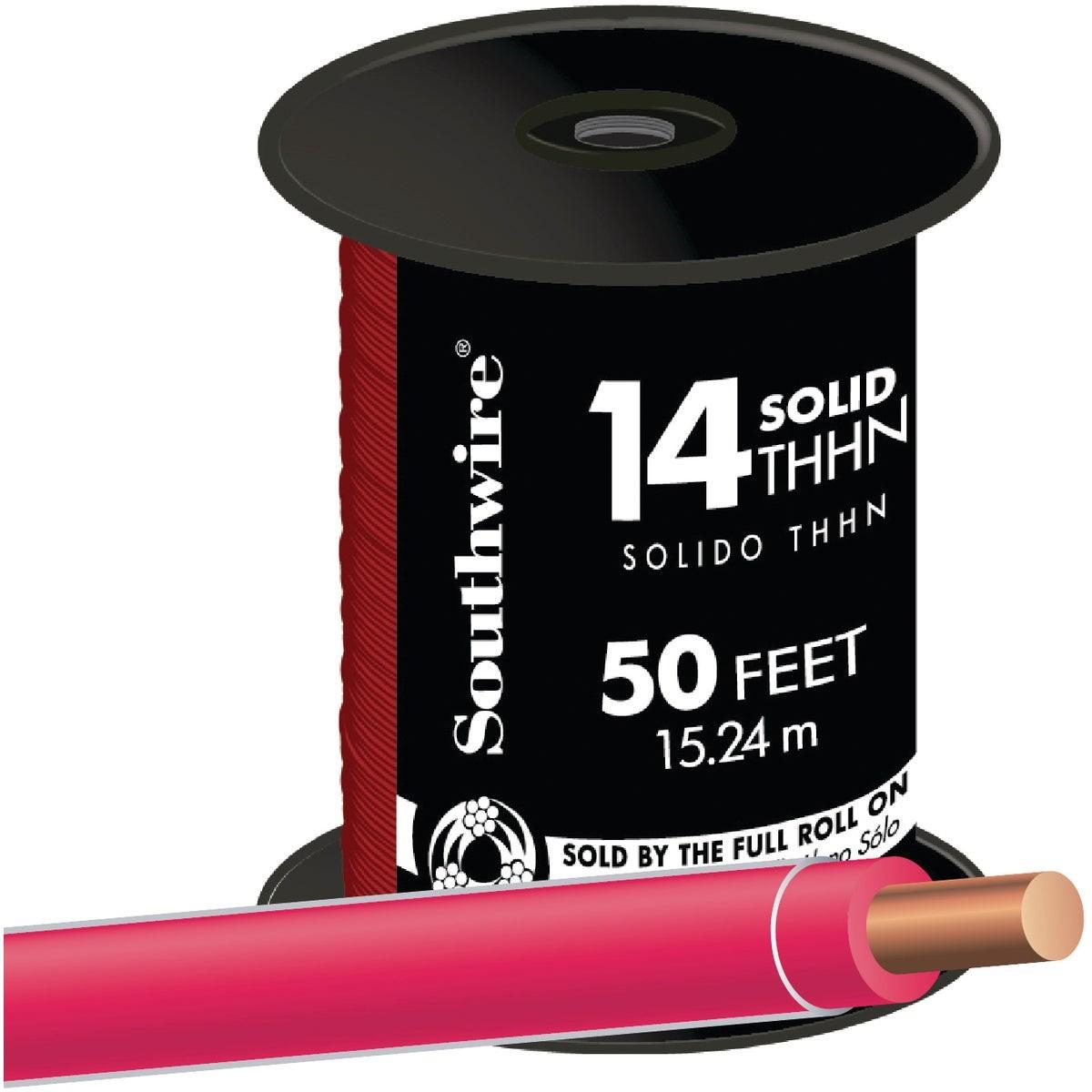

Southwire 11581683 14 Awg Solid Thhn Wire 600V 50 Ft Red

Product Description

The SOUTHWIRE 11581683 is a 50-foot coil of 14 AWG solid copper THHN building wire with a red PVC insulation and nylon jacket, rated for 600 volts and 90 degrees C. It is a general-purpose, single-conductor wire used for power distribution, lighting circuits, and control wiring in residential and commercial construction. The solid copper conductor delivers reliable conductivity, while the flame-retardant PVC insulation and nylon jacket provide mechanical protection and resistance to oil, gasoline, chemicals, and abrasion. Licensed electricians install this wire during new construction, renovation, and panel work.

This wire is suited for use in conduit and raceways in both residential and light commercial applications. Common installation scenarios include branch circuit wiring, lighting runs, and low-load control circuits where 14 AWG solid conductor is the specified gauge. The red jacket color supports standard color-coding practices used in multi-wire branch circuit and 3-way switch installations. Its small diameter makes it easy to pull through tight conduit runs.

Key Features

• 600-volt rating for standard building wire applications
• Rated to 90 degrees C for use in dry and damp locations per THHN designation
• Solid copper conductor for reliable conductivity and secure terminations
• Flame-retardant PVC insulation with nylon jacket resists oil, gasoline, chemicals, and abrasion
• UL listed for compliance with national electrical standards
• Red jacket color supports circuit identification and color-coding practices

Compatibility

Designed for use in conduit and raceway systems as general-purpose 14 AWG solid THHN building wire for power, lighting, and control wiring circuits.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit at the panel before pulling or terminating wire. THHN wire must be routed through approved conduit or raceways and is not rated for direct burial or free-air installation outside of conduit. Verify conductor ampacity requirements against the circuit load and breaker rating before installation.

Technical Specifications

• Gauge: 14 AWG
• Conductor Type: Solid Copper
• Wire Type: THHN
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation: Flame-retardant PVC with Nylon Jacket
• Color: Red
• Length: 50 feet
• Weight: 0.943 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 11581683
