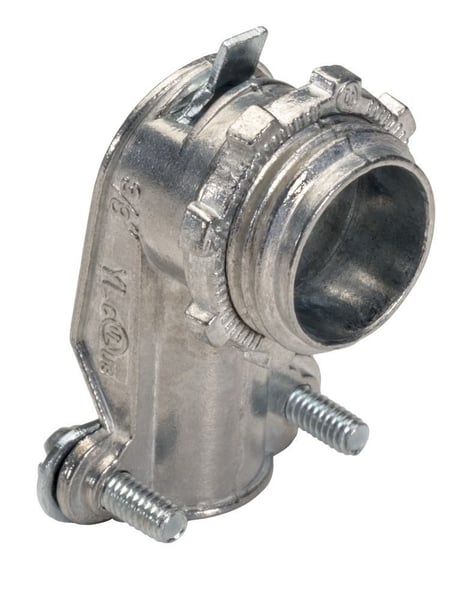

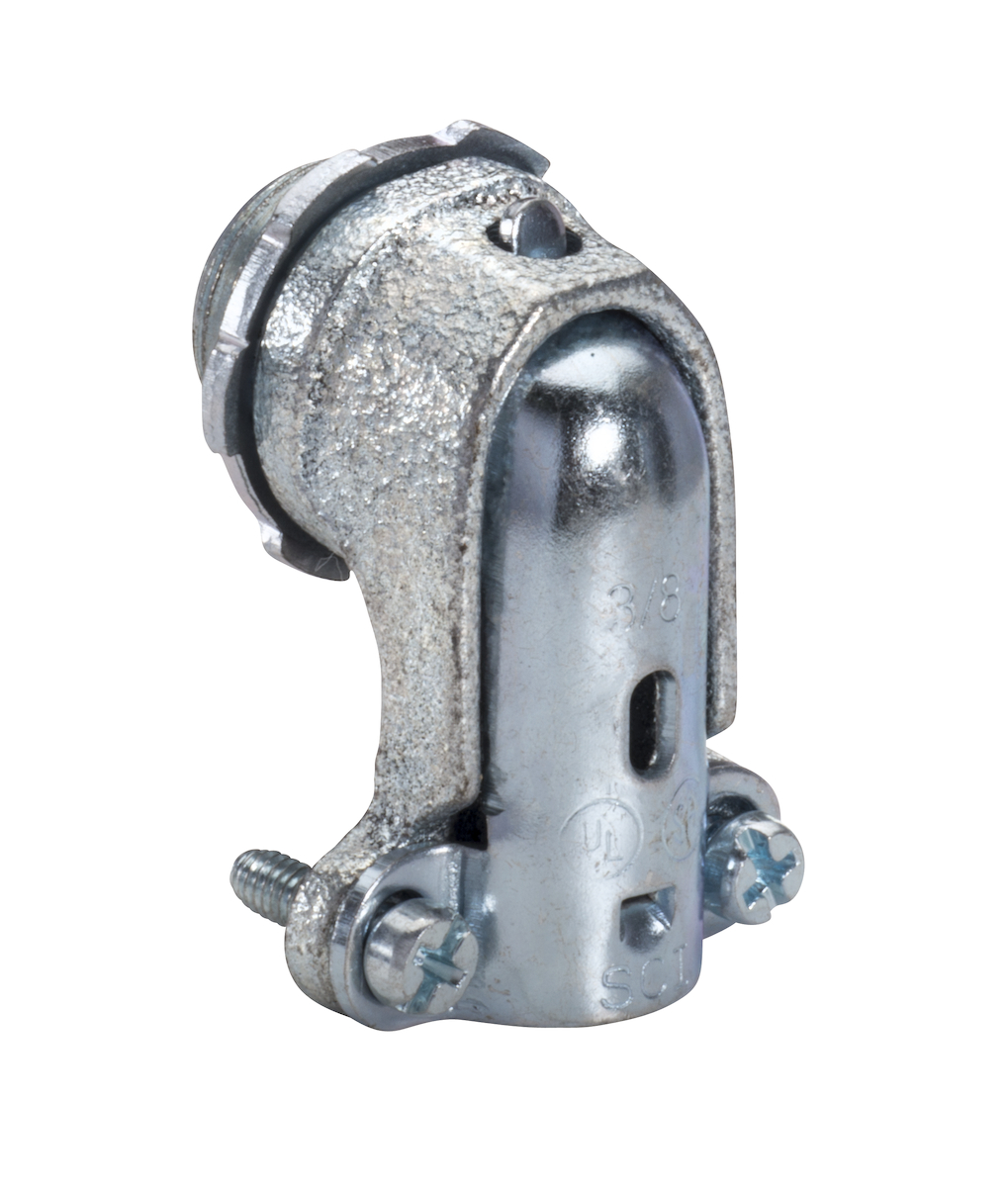

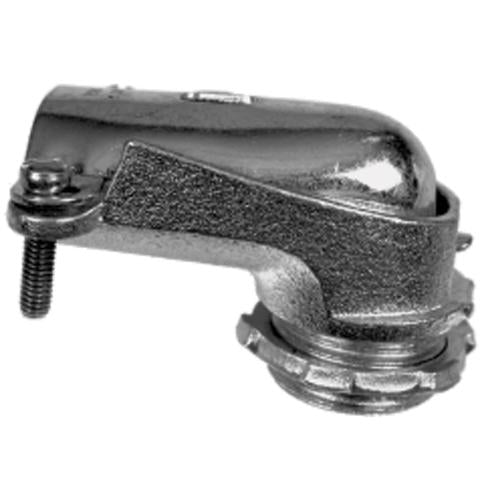

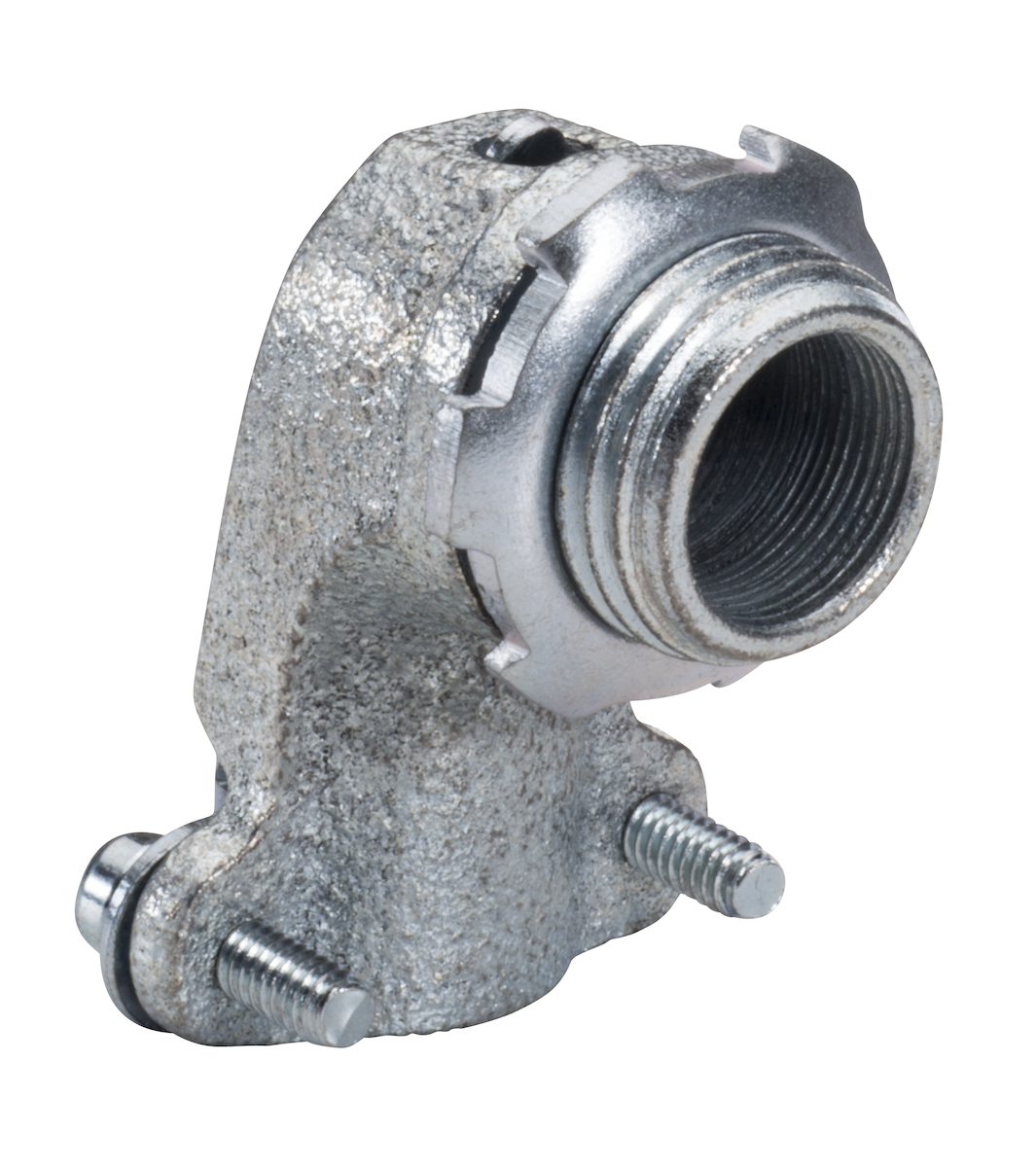

Southwire 107M flexible conduit connector 90 degree

Product Description

The SOUTHWIRE 107M is a flexible conduit connector designed for connecting flexible metal conduit to a box or enclosure. It features a squeeze-type assembly for easy installation. Recommended for use in dry locations when bonding flexible metal conduit. Suitable for commercial, industrial, and residential applications.

• UL and CSA approved
• Malleable iron construction
• 90-degree angle

Product Highlights

Durable and corrosion-resistant, the SOUTHWIRE 107M ensures product integrity and longevity.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 107M
• Country of Origin: MUL

Technical Specifications

• Approval: UL, CSA
• Cable/Conduit Type: Flex Conduit
• Installation: (4) Screw, Squeeze
• Manufacturer Name: Southwire
• Material: Malleable Iron
• Product UPC: 751338105706
• Throat Type: Non-Insulated
• Type: 90 Degree
• Trade Size: 2-1/2 in
• Application: Use to connect flexible metallic conduit, AC and steel MC cable to a steel outlet box or other metal enclosure, indoor use only
• Standard & Approvals: CSA Certified, UL Listed, UL 514B, UL File No. E170258, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
• Connection Type: Threaded x Squeeze
• Angle: 90 deg
• Knockout Size: 2-1/2 in
• Finish: Zinc Plated
• Mfg Standards/Approvals: UL 514B Listed, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA E148716 Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D, RoHs Compliant
• Number of Conductors: 1
