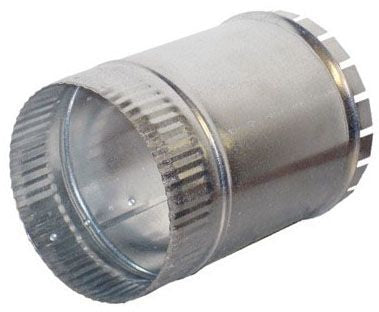

Snappy t27-8 Crimped Starting Collar 8x6 Inch Galvanized

Product Description

The SNAPPY t27-8 is a galvanized round crimped starting collar designed to connect flexible duct to a trunk line, plenum, or register box in residential and light commercial HVAC ductwork systems. The collar measures 8 inches by 6 inches and features a factory-crimped end that allows the flex duct to slide over and seat securely. The galvanized steel construction provides corrosion resistance in attic, crawlspace, and mechanical room environments. HVAC installers and sheet metal technicians use this collar as the starting point for flex duct runs in supply and return air distribution systems.

This starting collar is suited for residential forced-air systems where flexible duct is run from a main trunk or air handler plenum to individual supply boots or registers. The 8-inch by 6-inch sizing accommodates standard flex duct transitions in both new construction and retrofit applications. The crimped end is designed to accept flex duct directly, reducing the need for additional fittings at the connection point.

Key Features

• Factory-crimped end allows flex duct to slide over and seal without additional reducers
• Galvanized steel construction resists corrosion in attic and crawlspace installs
• 8 inches by 6 inches fitting size accommodates standard flex duct transitions
• Lightweight at 0.80 pounds for easy single-hand positioning during install
• Compatible with round flexible duct in forced-air supply and return systems

Compatibility

Designed as an OEM-style starting collar for use with standard round flexible duct in residential and light commercial forced-air HVAC ductwork systems.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal installer. Power down and lock out the air handling unit before beginning any ductwork connection. Secure the flex duct to the crimped end with an approved metal draw band and seal all joints with UL 181-listed mastic or foil tape in accordance with local mechanical codes. Do not over-compress the flex duct inner liner when seating it onto the collar, as this reduces airflow capacity.

Technical Specifications

• Fitting Size: 8 inches x 6 inches
• Material: Galvanized Steel
• Weight: 0.80 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: t27-8
