Snappy p17c-606 Center End Register Boot 6x10 in

Product Description

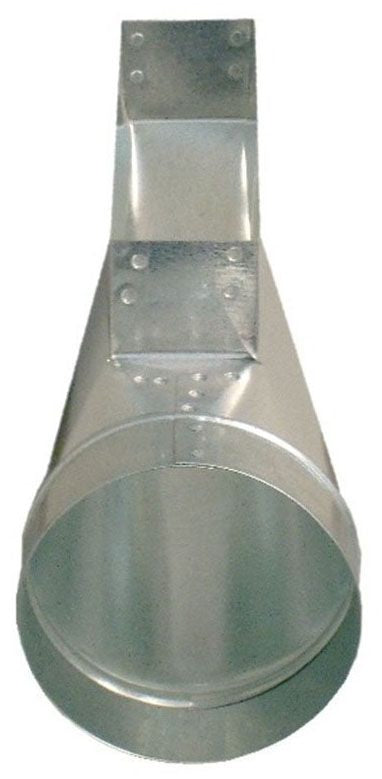

The SNAPPY p17c-606 is a galvanized steel center end register boot designed to connect round duct to a floor, ceiling, or wall register opening. The boot features a 6-inch round collar inlet and transitions to a 6 x 10 inch rectangular face, making it a standard fit for residential forced-air duct systems. The galvanized steel construction resists corrosion in typical HVAC environments. HVAC installers use this fitting where duct runs terminate at a register or grille, providing a clean, secure transition from round trunk or branch duct to a rectangular register opening.

This register boot is suited for new construction and replacement work in residential and light commercial forced-air heating and cooling systems. It is positioned at the end of a duct run and connects directly behind the register face. The center-end configuration allows the register to sit flush against the finished surface while the 6-inch collar connects to the branch duct feeding the zone.

Key Features

• 6-inch round collar inlet connects directly to standard 6-inch round branch duct
• 6 x 10 inch rectangular face opening accommodates standard register and grille sizes
• Center-end design positions duct connection at the center end of the boot for straight-run termination
• Galvanized steel construction provides corrosion resistance in conditioned-space duct applications
• Lightweight at 0.80 pounds, simplifying handling during ceiling, wall, or floor installation

Compatibility

Designed as an OEM-style replacement or new-construction fitting for residential and light commercial forced-air duct systems using 6-inch round branch duct terminating at a 6 x 10 inch register opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal installer. The system should be de-energized and the air handler shut down before connecting or sealing duct fittings. Seal all joints with UL 181-rated duct mastic or approved metal foil tape per local mechanical code requirements. Secure the collar to the branch duct with sheet metal screws and verify the register face opening aligns with the finished surface before final fastening.

Technical Specifications

• Collar Diameter: 6 inches
• Fitting Face Size: 6 x 10 inches
• Type: Center End Register Boot
• Material: Galvanized Steel
• Weight: 0.80 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: p17c-606
