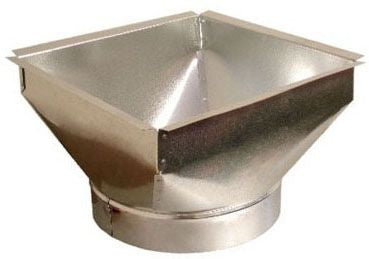

Snappy 82-081208 Galvanized Funnel Floor Register Pan

Product Description

The SNAPPY 82-081208 is a galvanized funnel floor register pan designed for residential and light commercial HVAC duct installations. This fitting connects a rectangular duct opening to a floor register, providing a clean transition that directs conditioned air up through the floor surface. The pan measures 8 inches by 12 inches at the fitting size with an 8-inch pan depth, giving technicians the clearance needed in standard floor joist cavities. Constructed from galvanized steel, the pan resists corrosion in the damp subfloor environments common in crawlspace and slab-on-grade installations. HVAC installers and sheet metal workers use this component during new construction and duct renovation work.

This funnel pan is suited for floor register applications in forced-air heating and cooling systems where the supply duct terminates at a floor-level register. The 8-inch by 12-inch fitting size matches standard floor register openings of the same nominal dimension. The 8-inch depth accommodates typical framing depths found in residential floor assemblies. It is commonly installed during rough-in on new builds or as a replacement fitting when existing pans are damaged or corroded.

Key Features

• Galvanized steel construction resists corrosion in subfloor and crawlspace environments
• 8-inch by 12-inch fitting size matches standard nominal floor register openings
• 8-inch pan depth suits typical residential floor joist cavity clearances
• Funnel design channels airflow from the duct up through the floor register opening
• Lightweight at 0.80 pounds for easy single-technician handling during installation

Compatibility

Designed as an OEM-style replacement or new-construction fitting for residential and light commercial forced-air HVAC systems requiring an 8-inch by 12-inch galvanized funnel floor register pan.

Installation Notes

Installation is typically performed by licensed HVAC technicians or sheet metal workers during duct rough-in or service calls. Shut down the air handling system before modifying or replacing duct components. Secure the pan to the subfloor framing with appropriate fasteners and seal all joints with duct mastic or listed metal duct tape in accordance with local mechanical codes and SMACNA standards. Do not use standard cloth duct tape, which is not rated for HVAC duct sealing.

Technical Specifications

• Fitting Size: 8 inches x 12 inches
• Pan Depth: 8 inches
• Material: Galvanized Steel
• Weight: 0.80 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 82-081208
