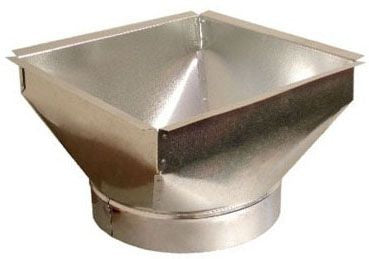

Snappy 82-081008 Galvanized Funnel Floor Register Pan

Product Description

The SNAPPY 82-081008 is a galvanized steel funnel floor register pan designed for use in residential and light commercial HVAC duct systems. This fitting connects supply ductwork to a floor register opening, directing conditioned air from the duct into the occupied space. The pan measures 8 inches x 10 inches at the opening with an 8-inch depth, providing the funnel geometry needed to transition from a round or rectangular duct run to a standard floor register cutout. Weighing 0.80 pounds, it is lightweight enough for single-technician handling. HVAC installers and sheet metal workers are the primary trades that specify and install this component during new construction and retrofit projects.

This funnel pan is suited for floor register installations in forced-air heating and cooling systems. It is typically installed in subfloor framing cavities where a duct run terminates at a floor-level supply register. The 8 inches x 10 inches opening dimension matches standard floor register sizing, and the 8-inch depth accommodates typical joist bay depths. The galvanized finish helps resist moisture and corrosion in environments where condensation or subfloor humidity may be present.

Key Features

• Galvanized steel construction for corrosion resistance in subfloor and crawl space environments
• 8 inches x 10 inches opening fits standard floor register cutout dimensions
• 8-inch pan depth accommodates typical floor joist bay installations
• Lightweight at 0.80 pounds for easy single-hand positioning during install
• Funnel geometry transitions duct airflow smoothly to the floor register opening

Compatibility

Designed as an OEM-style replacement or new-construction fitting for residential and light commercial forced-air HVAC systems requiring an 8 inches x 10 inches galvanized funnel floor register pan with 8-inch depth.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal installer. Shut down the air handler and close the system before fitting and securing the pan to the duct run. Secure the pan to framing or ductwork using sheet metal screws and apply foil-backed duct tape or mastic sealant at all joints to maintain system air tightness per applicable mechanical codes. Avoid compressing or deforming the pan opening, as this will restrict airflow to the register.

Technical Specifications

• Fitting Size: 8 inches x 10 inches
• Pan Depth: 8 inches
• Item Weight: 0.80 pounds
• Material: Galvanized Steel

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 82-081008
