Snappy 80-081206 Floor Register Pan 8x12 6 Inch Depth

Product Description

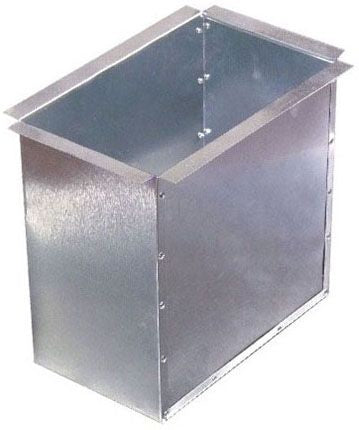

The SNAPPY 80-081206 is a galvanized blind floor register pan designed for use in residential and light commercial HVAC duct systems. This floor pan provides a finished transition point between the subfloor opening and the floor register, directing conditioned air up through the floor surface. Constructed from galvanized steel, the pan measures 8 inches by 12 inches with a 6-inch depth, making it suitable for standard floor duct boot applications. HVAC installers and sheet metal contractors use this pan during new construction or system retrofits where a floor-mounted supply register is required.

This floor register pan fits into framed floor openings and connects to the supply duct branch below. The 6-inch depth accommodates typical floor joist cavities and standard duct connections in residential forced-air systems. It is appropriate for use with matching 8-inch by 12-inch floor registers in single-family homes, manufactured housing, and light commercial applications where floor supply air distribution is the preferred design layout.

Key Features

• Galvanized steel construction resists corrosion in floor cavity environments
• 8 inches by 12 inches fitting size matches standard floor register openings
• 6-inch depth suits typical joist bay and duct branch configurations
• Blind pan design provides a clean, sealed transition between duct and register
• Lightweight at 0.80 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement or new-installation floor register pan for residential and light commercial forced-air HVAC systems using 8-inch by 12-inch floor supply openings.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Shut down the air handling system before cutting floor openings or connecting duct branches. Secure the pan to the framed floor opening using sheet metal screws and seal all joints with UL-listed duct tape or mastic sealant to prevent air leakage. Follow applicable local mechanical codes and SMACNA duct construction standards during installation.

Technical Specifications

• Fitting Size: 8 inches x 12 inches
• Pan Depth: 6 inches
• Material: Galvanized Steel
• Item Weight: 0.80 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 80-081206
