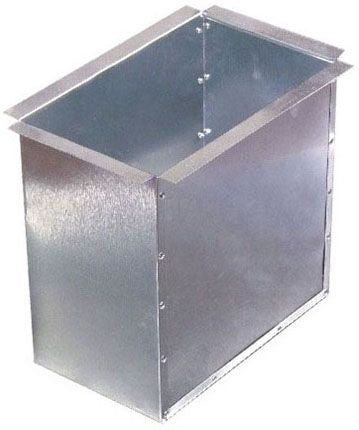

Snappy 80-061006 Blind Floor Register Pan 6x10 6in Deep

Product Description

The SNAPPY 80-061006 is a galvanized blind floor register pan designed for residential and light commercial HVAC duct systems. It provides a finished transition point at the floor level where a boot connects to a floor register opening. The pan measures 6 inches by 10 inches with a 6-inch depth, giving the installer adequate depth to route ductwork below the subfloor. The galvanized steel construction resists moisture and corrosion in crawlspace and under-floor environments. HVAC sheet metal installers and duct fabricators use this pan when rough-framing duct openings prior to register installation.

This floor pan is suited for new construction and retrofit applications in residential forced-air systems. It is installed at the termination point of a branch duct run, flush with or recessed into the subfloor. The 6 x 10 inch opening size corresponds to standard nominal register and grille sizing, making it a common fit for first-floor supply air outlets. Installers working with conventional trunk-and-branch sheet metal duct systems will find this pan straightforward to fit between floor joists in standard joist-bay layouts.

Key Features

• Galvanized steel construction for corrosion resistance in under-floor and crawlspace environments
• 6 inch by 10 inch nominal opening matches standard floor register sizing
• 6-inch pan depth provides clearance for below-subfloor duct routing
• Blind pan design creates a clean, closed base for the register boot transition
• Lightweight at 0.80 pounds for easy single-technician handling during installation

Compatibility

Designed as an OEM-style replacement and new-construction component for standard residential forced-air floor duct systems using 6 inch by 10 inch floor register openings.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal installer. Shut down the air handling system before modifying any duct connections. The pan should be secured to the subfloor framing using appropriate sheet metal screws, and all joints should be sealed with listed duct sealant or mastic per local mechanical code requirements. Do not use the pan as a structural support for flooring materials.

Technical Specifications

• Fitting Size: 6 inches x 10 inches
• Pan Depth: 6 inches
• Material: Galvanized Steel
• Item Weight: 0.80 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 80-061006
