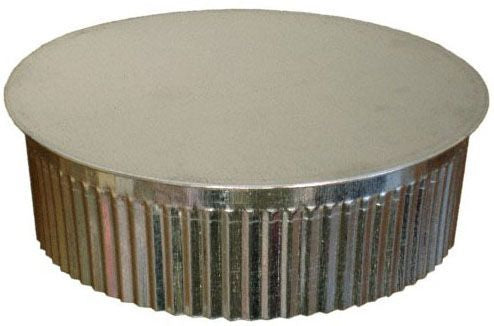

Snappy 65-07 Galvanized Crimp Cap 7 Inch Duct Fitting

Product Description

The SNAPPY 65-07 is a 7-inch galvanized sheet metal crimp cap designed for use in residential and light commercial duct systems. Fabricated from 26-gauge galvanized steel, this crimped tee cap provides a secure, formed fit at duct termination or branch points. The crimped end allows it to slide over or into standard round duct collars without the need for additional fasteners in most applications. HVAC installers and sheet metal workers rely on this type of fitting when capping off unused duct openings or completing branch runs in forced-air systems.

This fitting is suited for round duct branch terminations in residential forced-air heating and cooling systems. It is commonly installed during new construction rough-in, system modifications, or service calls where an unused duct port needs to be sealed. The 26-gauge galvanized construction handles standard ductwork environments and is compatible with the typical installation conditions found in attics, crawlspaces, and mechanical rooms.

Key Features

• 7-inch fitting size fits standard round duct openings of that diameter
• 26-gauge galvanized steel construction resists corrosion in typical duct environments
• Crimped end design allows for secure slip fit onto mating duct collars
• Lightweight at 0.50 pounds for easy single-hand installation in tight spaces
• Consistent formed profile supports proper sealing with mastic or foil tape

Compatibility

Designed as an OEM-style replacement and standard fitting for 7-inch round galvanized ductwork systems in residential and light commercial forced-air applications.

Installation Notes

Installation is typically performed by licensed HVAC technicians or sheet metal workers. Power down the air handling unit and ensure the system is de-pressurized before accessing duct branches. Secure the cap with sheet metal screws and seal all joints with UL 181-rated foil tape or mastic sealant per local mechanical code requirements. Do not overtighten fasteners on 26-gauge material, as the gauge is susceptible to deformation.

Technical Specifications

• Fitting Size: 7 inches
• Gauge: 26 gauge
• Material: Galvanized steel
• Weight: 0.50 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 65-07
