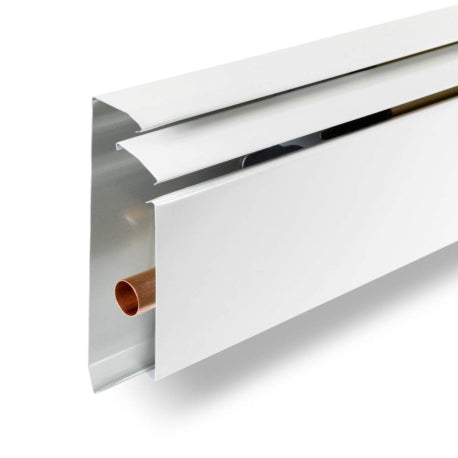

Slant-Fin 101-401-020 Fine/Line 30 Baseboard 2ft

Product Description

The Slant-Fin 101-401-020 is a 2ft long complete Fine/Line 30 series baseboard assembly. It features a pre-installed 3/4" (E-75) aluminum finned copper element and a sleek design with rounded corners. The baseboard is individually packed to prevent scratching and damage. End caps are sold separately.

• Up to 610 BTU's/ft of length (180°F standard, at 4 GPM)
• Comes with 3/4" (E-75) aluminum finned copper element pre-installed
• Fully assembled, ready to install

Product Highlights

The Fine/Line 30 baseboard series offers a super-quiet operation and easy installation, making it a great choice for efficient and quiet heating.

Product Information

Standard Information

• Brand: SLANT-FIN
• Manufacturer Part Number: 101-401-020
• Country of Origin: USA

Technical Specifications

• Total length: 24"
• Height: 7-7/8"
• Depth (front cover to wall): 2-11/16"
• Heating Element: E-75 (3/4" sweat), included - with 2-5/16" x 2-1/8" aluminum fins, spaced 55 pcs/ft
• BTU's: varies by supply temperature and flow rate - averages ~610 BTUh per linear ft (180 °F temperature @ 4GPM)
• Enclosure & brackets material: galvanized steel
• Front panel thickness: 20-gauge
• Finish: Nu-white enamel
