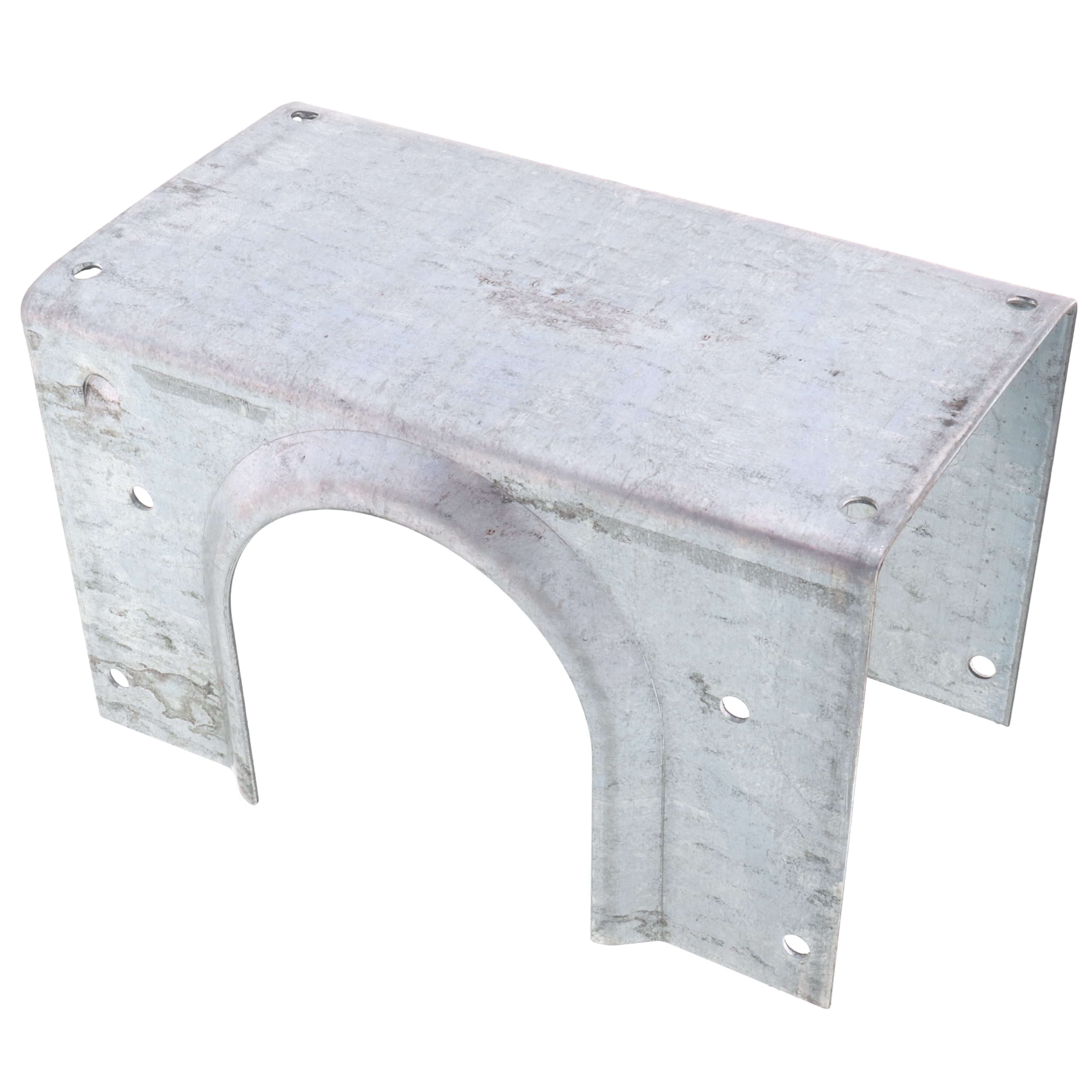

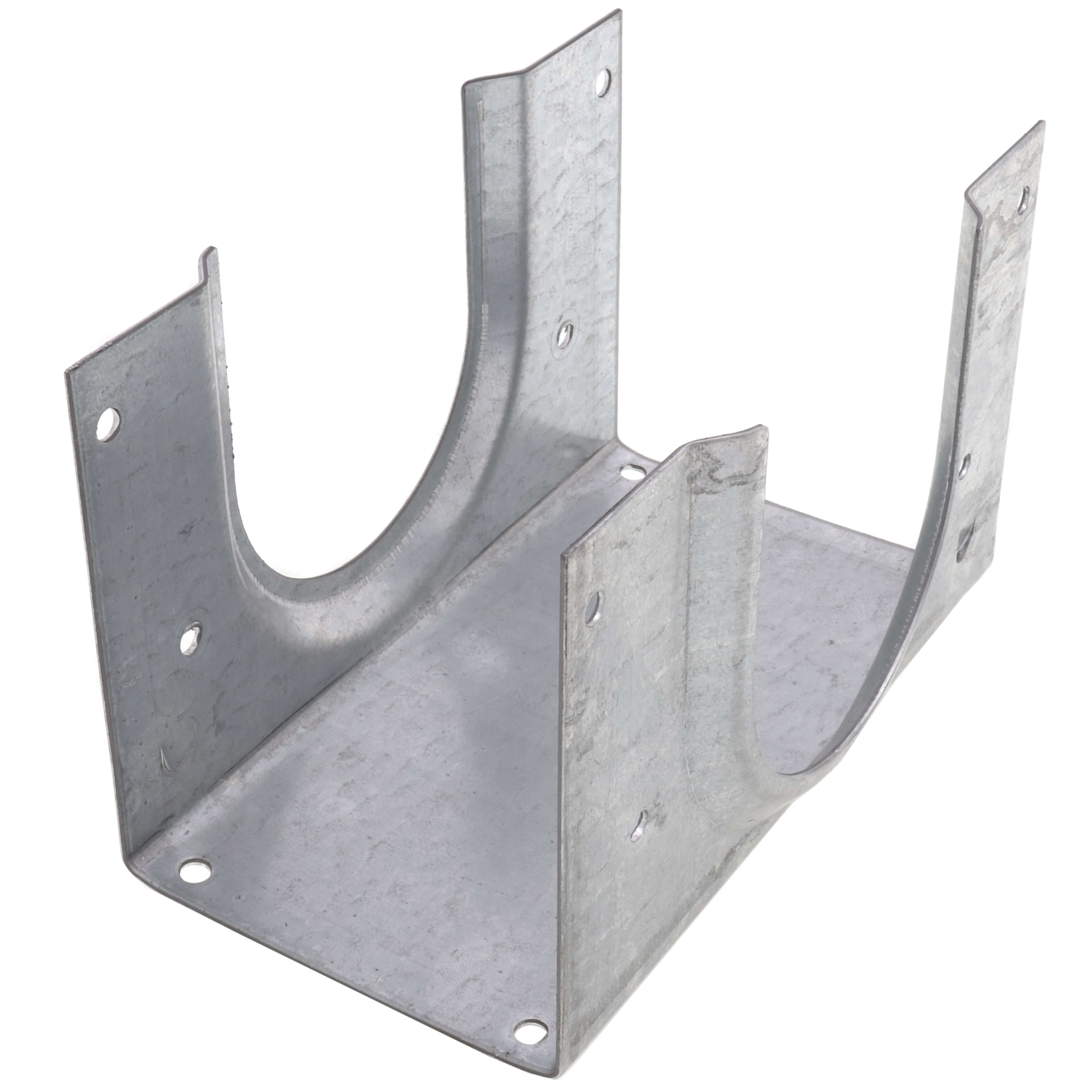

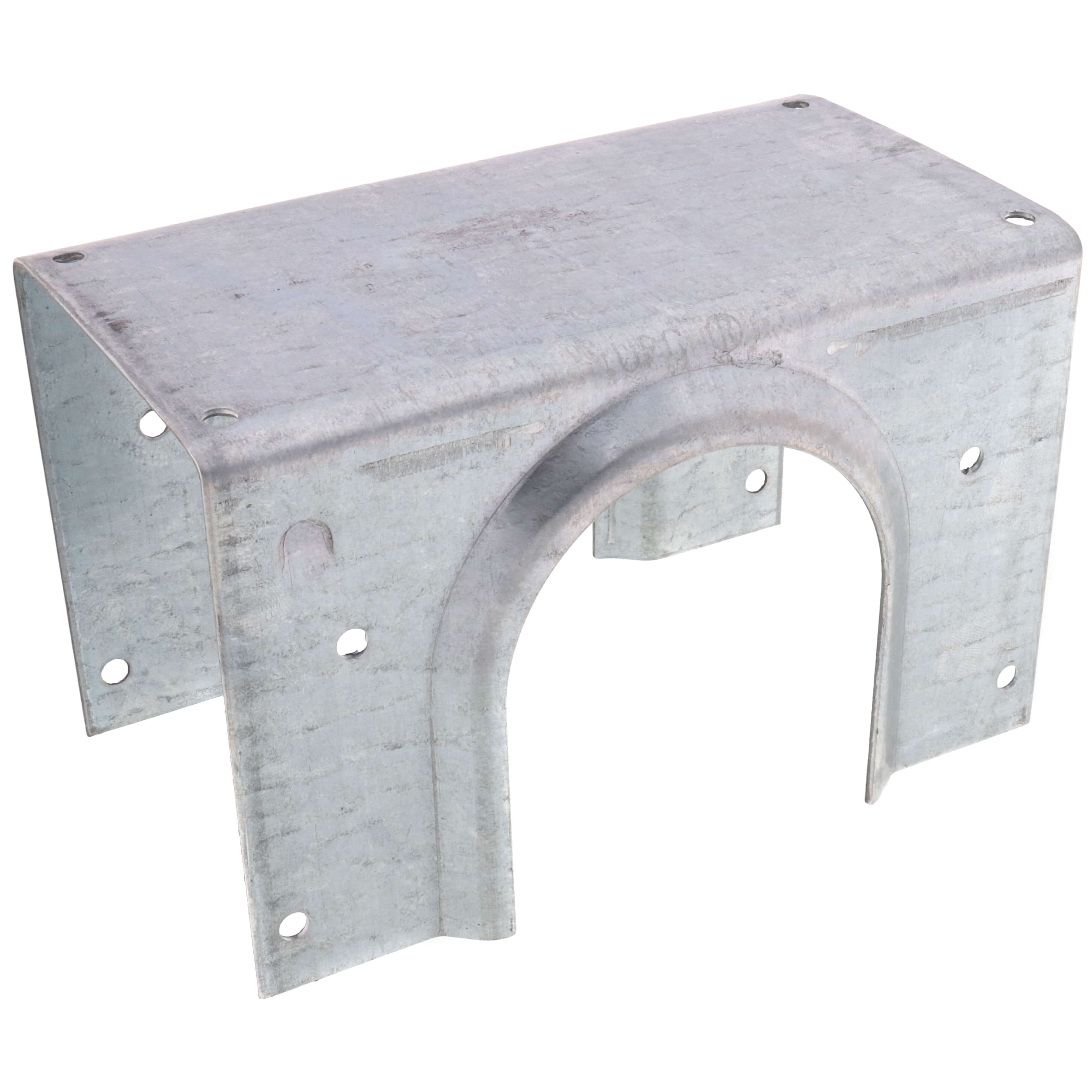

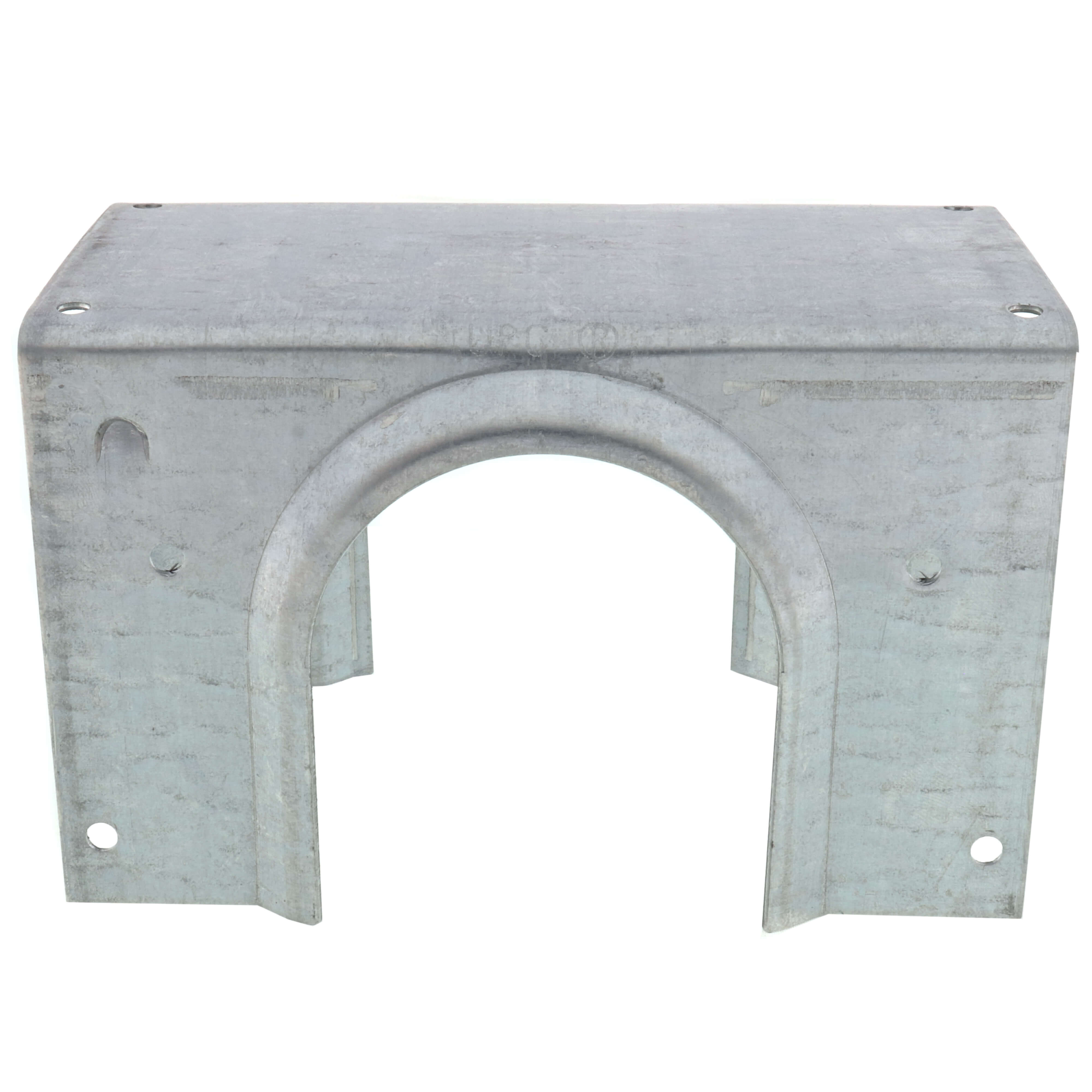

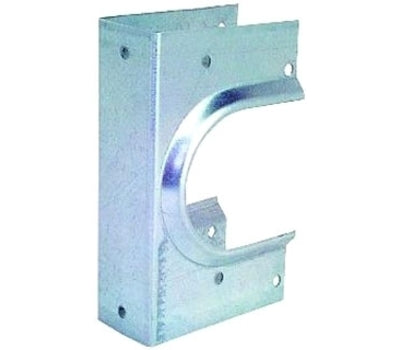

Sioux Chief 533-2 Plateshoe2

Product Description

The Plateshoe2 533-2 from SIOUX CHIEF is designed to conform to national plumbing code requirements. It is used to reinforce studs that have been bored or notched to allow for DWV piping. The stud shoe is secured to the joist with nails or screws. It is not a total replacement of removed construction materials.

• Designed to conform to national plumbing code requirements
• Used to reinforce studs that have been bored or notched to allow for DWV piping
• Secured to joist with nails or screws

Product Highlights

This stud shoe is made of steel and provides support for plumbing applications. It conforms to national plumbing code requirements.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 533-2
• Country of Origin: US

Technical Specifications

• Material: Steel
• Batteries Included?: No
• Batteries Required?: No
• Type: U
• Applications: For double studs
• Standards/Certifications: IRC 602.6 approved
• Gauge: 16 ga
• Maximum Load Rating: 810 lbs
• Pipe opening: 2-1/2"
• For use with: any piping that is 2" Schedule 40 or smaller
• Brand: SIOUX CHIEF
• Item Number: 533-2
• Width: 3 in
• Finish: Zinc
• Height: 5-3/8 in
• Length: 3.38 in
• Product Type: Double Stud Shoe
• Catalog Number: 533-2
• Specifications Met: IRC 602.6
• Series: 533
• Depth: 3.38 in
• Load Capacity: 810 lb
• Manufacturer: SIOUX CHIEF
• Manufacturer #: 533-2
• Applicable Standard: IRC 602.6
• Application: For Double Studs
• Stud Size: 3.12" Diameter
