SIOUX 696-2313CF OxBox Washing Machine Outlet Box

Product Description

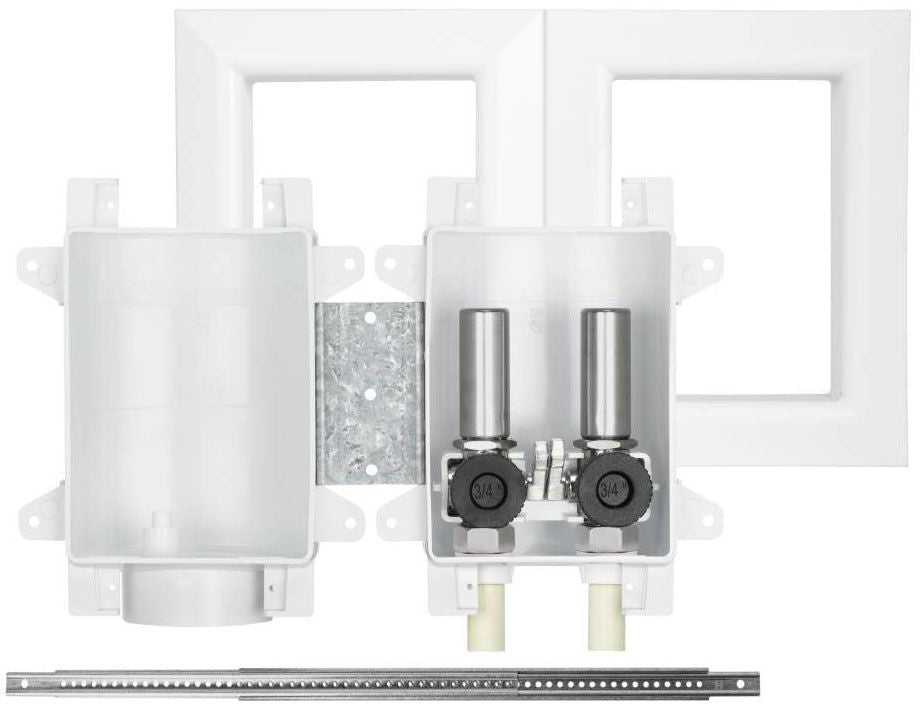

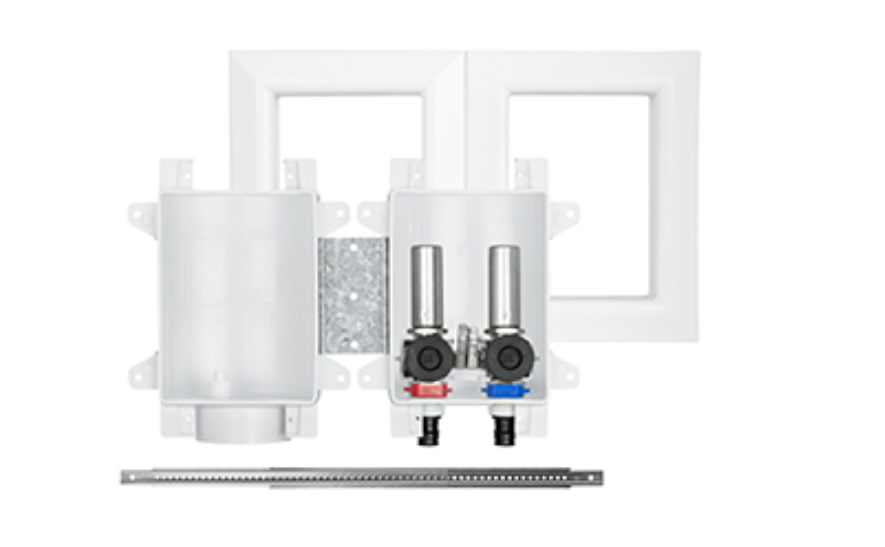

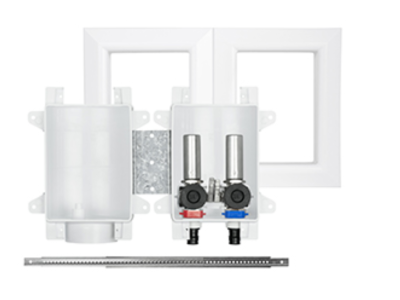

The SIOUX 696-2313CF OxBox is a washing machine outlet box for installation in stud bays. It has separate supply and drain boxes for efficient water management. This unit includes quarter-turn ball valves with hose connections and MiniRester water hammer arresters for enhanced performance.

• Includes water hammer arresters to reduce noise.
• Features durable quarter-turn ball valves.
• Designed for washing machine supply and drain applications.

Product Highlights

This outlet box is suitable for residential and commercial installations. It features a 1/2 inch male CPVC pipe connection for the supply and a 2 inch hub for the drain. A debris cover is included for valve protection, ensuring longevity and reliability.

Product Information

Standard Information

• Brand Name: SIOUX
• MPN: 696-2313CF

Technical Specifications

• Connection Type: 1/2 CPVC Male
• Outlet Size: 2 inch
• Includes Water Hammer Arresters: Yes
• Valve Type: Dual Lever
• Valve Included: Yes
• Valve Details: 1/4 TURN, FORGED BRASS (BODY)
• Fire Rated: No
• Box Size: 4 inch width x 3-1/2 inch depth x 5-1/2 inch height
• Face Plate Size: 11-1/2 inch width x 7-1/4 inch height
• Supply Connection: 1/2 inch nominal, 2 inch open circuit
• Drain Connection: 2 inch hub, schedule 40
• Arrester Body Material: Stainless steel, C69300 NL brass
• Bracket/Box Clip: Galvanized steel
• Model: 696
• Drain Placement: Side drain
• Applicable Standard: NSF 372, UPC, ASSE 1010, IAPMO, ASME A112.18.1
• Width: 11.50 inches
• Height: 7.25 inches
• Depth: 3.50 inches
