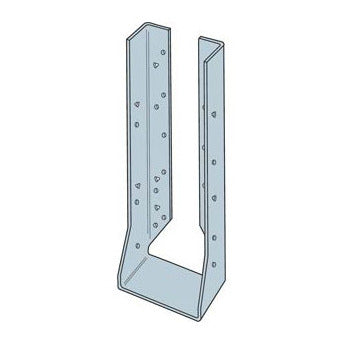

Simpson Strong-Tie HUC610Z Concealed Flange U Hanger

Product Description

Simpson Strong-Tie HUC610Z is a heavy-duty face-mount joist hanger designed for supporting floor and roof joists. It measures two and a half inches by five and a half inches with a depth of seven and five-eighths inches. This joist hanger is made from fourteen-gauge steel and features ZMAX® coating for added corrosion resistance. The configuration includes both triangle and round holes for maximum load capacity. To achieve optimal performance, it is recommended to fill all holes with common nails.

• Compatible with various joist sizes
• Supports maximum loads when correctly installed
• Ideal for schools and other structures requiring strong connections

Product Highlights

These joist hangers provide structural strength and integrity, ensuring safety and durability in construction projects.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part #: 137HUC610Z

Technical Specifications

• Load: Uplift (160) 1345 lb, Floor (100) 2085 lb, Snow (115) 2350 lb, Roof (125) 2520 lb
• Gauge: 14
• Finish: ZMAX® Coated
• Fastener Size: (14) 0.162 x 3-1/2 in (Header), (6) 0.162 x 3-1/2 in (Joist)
