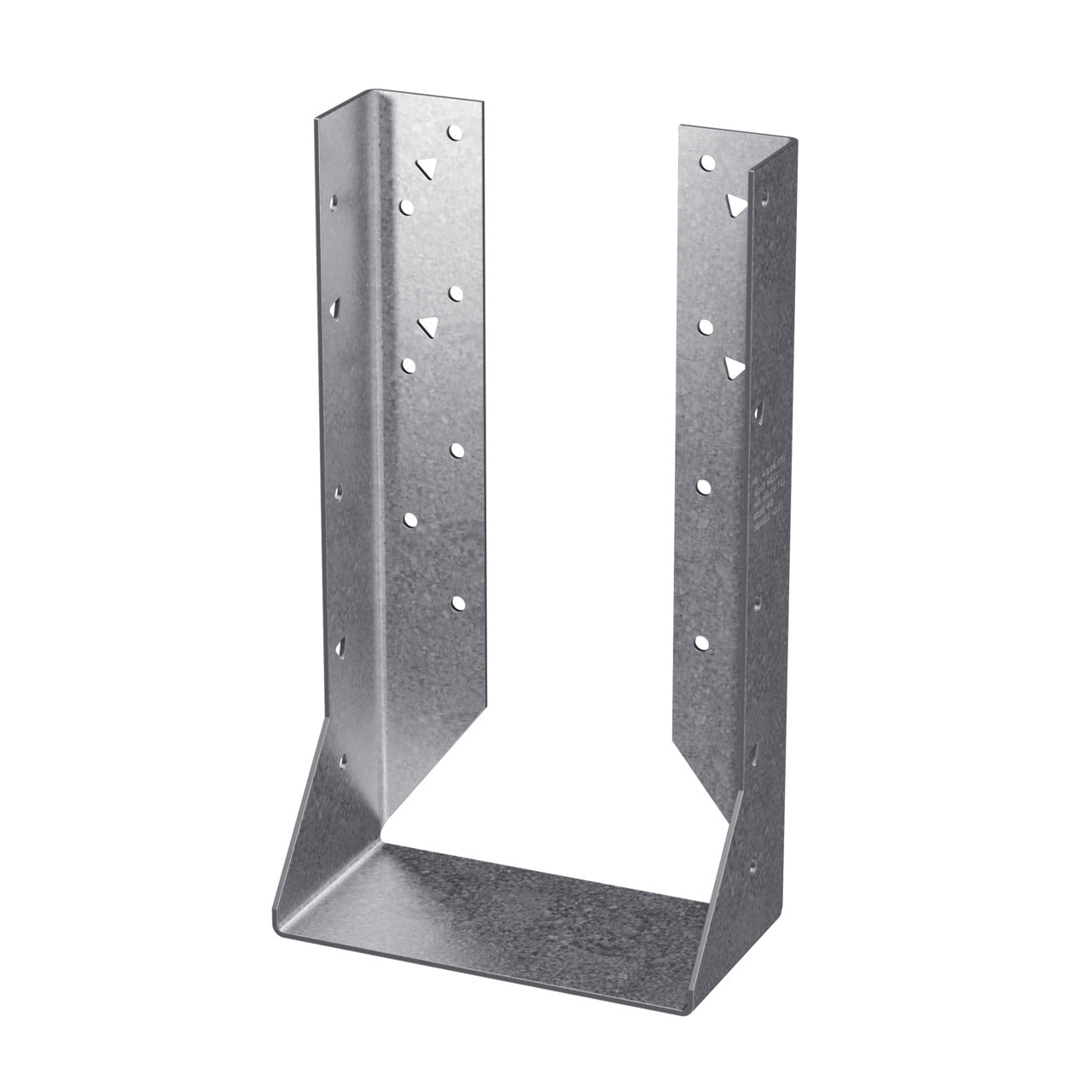

Simpson Strong-Tie HUC2103 Concealed Flange U Hanger

Product Description

The Simpson Strong-Tie HUC2103 is a heavy-duty face-mount joist hanger designed for robust support in construction applications. Built from galvanized steel, this connector features triangle and round holes for fastener installation. It is suitable for schools and other structures requiring high strength and longevity.

• Designed for maximum weight support.
• Utilizes common nails for installation.
• Meets industry standards for safety and reliability.

Product Highlights

This joist hanger provides exceptional load-bearing capabilities, ensuring structures remain secure and safe for use.

Product Information

Standard Information

• Material: Steel
• Finish: Galvanized

Technical Specifications

• Load Ratings: Uplift (GFCMU) 1135 lb, Down (GFCMU) 3500 lb, Concrete Uplift 1135 lb, Down 4920 lb
• Gauge: 14
• Fastener Size: (14) 1/4 x 2-3/4 in (GFCMU Titen 2), (14) 1/4 x 1-3/4 in (Concrete Titen 2), (6) 0.148 x 3 in (Joist)
• Nominal Product Depth: 0 inches
