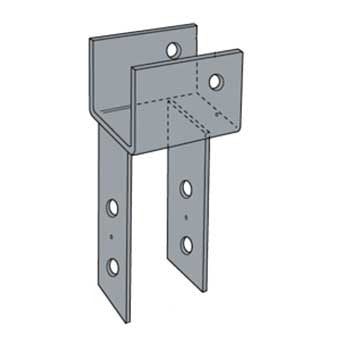

Simpson Strong-Tie ECC66 End Column Cap 7 ga

Product Description

The Simpson Strong-Tie ECC66 is a durable end column cap made from painted steel. This cap measures seven and one-half inches by five and one-half inches by six and one-half inches. The ECC66 ensures a secure connection for timber beams and posts in various construction applications.

• Constructed from painted steel
• Designed for engineered wood beam and post connections
• Resists uplift forces and lateral displacement

Product Highlights

The ECC66 is engineered to provide support for wood framing members, making it ideal for both residential and commercial applications.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: ECC66

Technical Specifications

• Load Capacity: Down (100) 18905 lb
• Color: Gray
• Gauge: 7
• Cap Type: End
• Material: Steel
• Beam Width Compatibility: Five and one-quarter inches, five and one-half inches
• Leg Spacing: Five and one-half inches
• Fastener Size: (Two) five-eighths inches stainless steel bolts for beam, (Two) five-eighths inches stainless steel bolts for post
