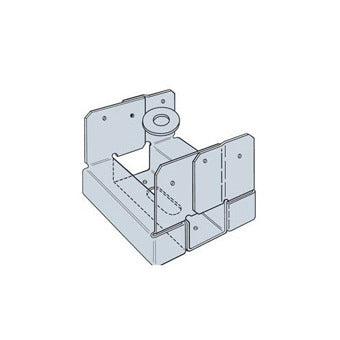

Simpson Strong-Tie CPT66Z CPTZ Series Concealed Post Base

Product Description

The Simpson Strong-Tie CPT66Z is a concealed post base designed for a clean look and effective support. It offers a one inch standoff height above concrete. This height helps prevent decay at the post end and meets code requirements for posts exposed to weather, water, or in basements. The CPT66Z integrates seamlessly into a system of concealed connectors including CBTZ and CJT.

• Load rated for uplift, download, and lateral load.
• Includes essential components for efficient post connection.
• Set includes six power drivers for various fasteners.

Product Highlights

The CPT66Z is engineered for durability and ease of installation. It features a ZMAX coating for enhanced corrosion resistance.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137CPT66Z

Technical Specifications

• Load Rating: Uplift (160) 3580 lb, Down (100) 19840 lb
• Finish: ZMAX Coated
• Pad Size: 6 x 6 inches
• Thickness: 12 gauge
• Fastener Size: (2) 1/2 inch Anchors, (3) 1/2 x 4-3/4 inch Dowel Pins
• Nominal Product Depth: 0 inches
