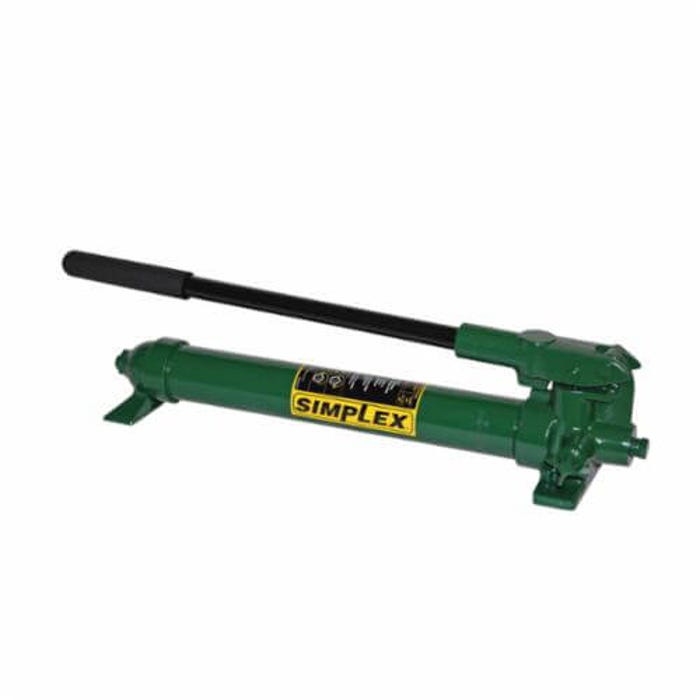

Simplex p41 Hydraulic Hand Pump 2-speed 10000 Psi

Product Description

The SIMPLEX p41 is a heavy-duty hydraulic hand pump designed for high-pressure hydraulic systems requiring reliable manual actuation. Part of the P-Series lineup, this pump delivers 2-speed, 1-stage operation that allows the operator to move fluid quickly at low pressure and then shift to high-pressure output to reach the 10000 psi working pressure. The unit ships ready for use with a 40 cubic-inch oil-fluid tank, a 3/8-inch NPTF outlet port, and an overall length of 23 inches. It measures 5.75 inches in width and 5.75 inches in height. Hydraulic technicians and industrial maintenance professionals rely on this pump to power cylinders, jacks, and presses in field and shop environments.

The p41 is suited for industrial maintenance, heavy equipment service, construction tooling, and hydraulic cylinder applications where a portable, manually operated pressure source is required. Its compact footprint and self-contained oil reservoir make it practical for both bench use and field service. The 2-speed mechanism reduces operator fatigue during high-volume stroke cycles before transitioning to the high-pressure stage for final load actuation.

Key Features

• 2-speed, 1-stage operation for fast low-pressure advance and high-pressure output up to 10000 psi
• 40 cubic-inch integrated oil-fluid reservoir eliminates need for a separate hydraulic power unit
• 3/8-inch NPTF outlet port for secure, leak-resistant hydraulic hose connection
• Compact overall dimensions: 23 inches long, 5.75 inches wide, 5.75 inches tall
• Heavy-duty P-Series construction rated for demanding industrial and field service use

Compatibility

Designed as an OEM-style replacement or direct-use manual pump for single-acting or double-acting hydraulic cylinders and tools rated at or below 10000 psi with a 3/8-inch NPTF port connection.

Installation Notes

Installation and operation should be performed by a qualified hydraulic technician familiar with high-pressure fluid systems. Before connecting or disconnecting hydraulic lines, relieve all system pressure and ensure the connected cylinder or tool is fully de-energized. Use thread sealant rated for hydraulic oil service on all NPTF fittings and verify connections are leak-free before applying load. Do not exceed the rated 10000 psi system pressure.

Technical Specifications

• Series: P
• Operation Type: 2-Speed 1-Stage
• Maximum Working Pressure: 10000 psi
• Tank Capacity: 40 cubic inches
• Fluid Type: Oil
• Outlet Port: 3/8 inch NPTF
• Overall Length: 23 inches
• Overall Width: 5.75 inches
• Overall Height: 5.75 inches

Standard Information

• Brand: SIMPLEX
• Manufacturer Part Number: p41
