Siemens WS3800CU powmod ws 3ph 4w 800a

Product Description

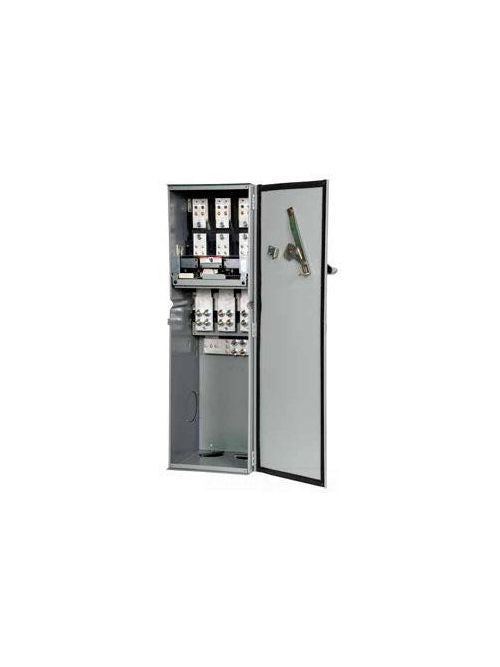

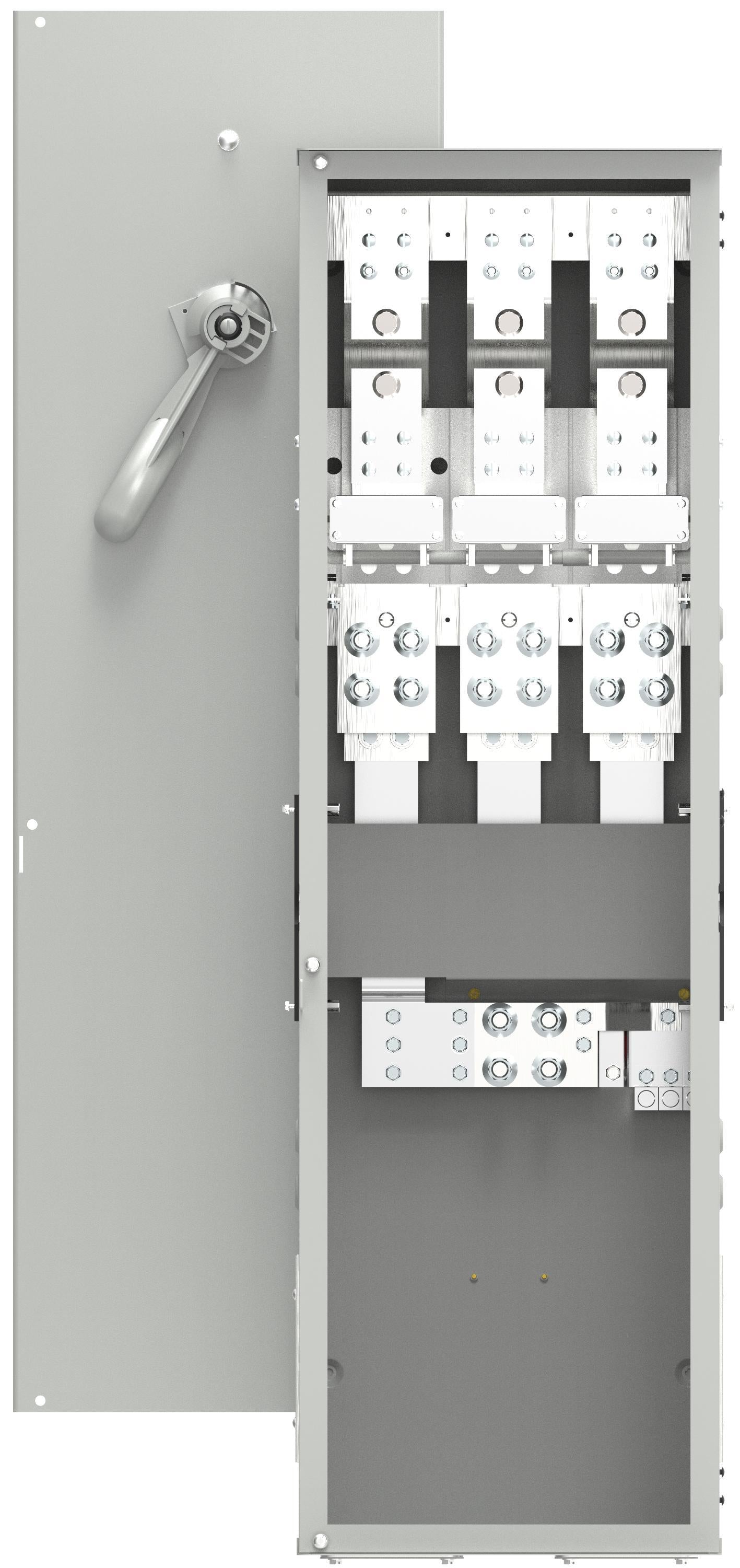

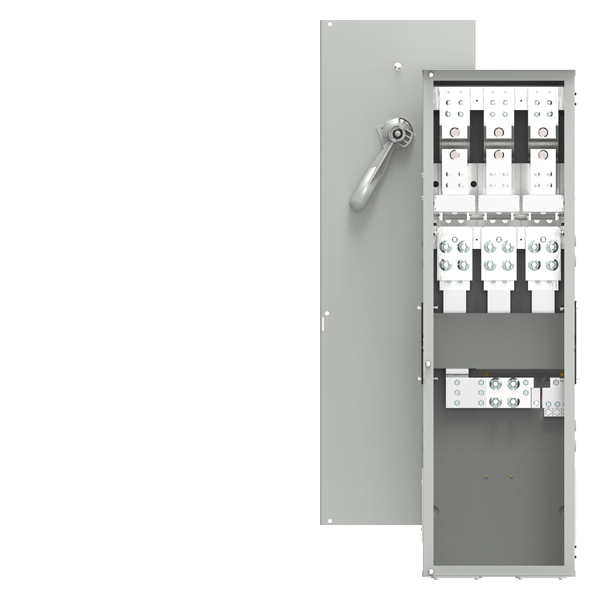

The Siemens WS3800CU POWMOD WS is a standard switch main, designed for low voltage power distribution. This 3-phase, 4-wire system is rated for 240V at 800A with a 100K interrupt rating. It features a NEMA Type 3R enclosure and supports top/bottom service feed. Note: Fuses are not included.

• Front Mounted Handle Saves Space by Eliminating Handles Mounted on the Side
• Standard Switch Modules (Type WS) are Designed for Flexibility, Space Savings and Durability
• REACH Compliant

Product Highlights

Designed for flexibility and durability, the WS3800CU power mod offers space-saving features and is suitable for garden-style, meter rise, and high-rise applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: WS3800CU
• Country of Origin: USA

Technical Specifications

• Circuit Configuration: 3-Phase 4-Wire
• Current Rating: 800 Amp
• Voltage Rating: 240 Volt AC
• Interrupting Rating: 100 Kiloamp
• Enclosure Type: NEMA 3R
• Feed Location: Top/Bottom
• Width: 15.19 Inch
• Depth: 16.31 Inch
• Height: 50.13 Inch
• Approval: UL 98
• Service Type: Overhead/Underground
• Application: Garden-Style, Meter Rise, High Rise
• Enclosure Material: Galvanized G90 Steel
• Country Of Origin: USA
• Connection Type: Bolt-On
• Number of Poles: 1 Pole
• TC Connection: BOLT-ON
• Trip Range: Thermal Magnetic
• Type: BLF/GFCL
• Voltage: 240 Volt
• Brand: Siemens
• Sub Brand: MURRAY
• Fuse Type: Class T
• Current Type: AC
• Maximum Amperage: 800A
• Number of Phases: 3
• Model: WS3800CU
• Features: POWER MOD
• MPN: WS3800CU
