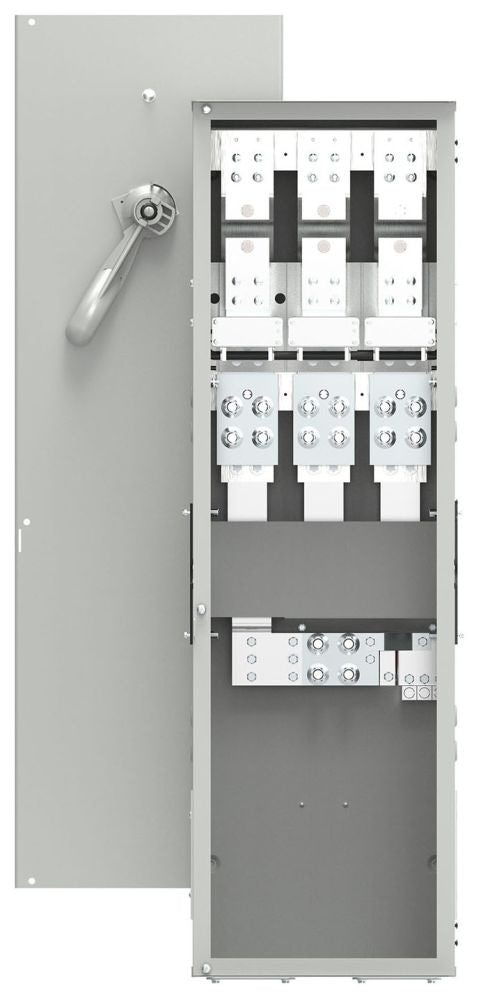

Siemens WS3600CU Power Module 3-phase 4-wire 600A

Product Description

The SIEMENS WS3600CU is a 600-amp, three-phase, four-wire power module designed for use in commercial and industrial electrical distribution systems. This unit serves as a core building block within modular switchboard assemblies, providing high-capacity power distribution in a structured, field-configurable format. Rated at 600A across a three-phase, four-wire configuration, the WS3600CU is built to handle substantial load demands in demanding service environments. Licensed electricians and electrical contractors are the primary installers of this equipment, typically working within engineered switchboard or distribution board designs.

The WS3600CU is suited for commercial and industrial applications where three-phase power distribution at 600 amps is required. It fits within modular WS-series switchboard configurations, making it applicable for use in facilities such as manufacturing plants, large commercial buildings, data centers, and institutional facilities. This module is typically specified during new construction or major electrical service upgrades where high-capacity distribution infrastructure is being installed or expanded.

Key Features

• 600-amp continuous rating for high-capacity three-phase distribution
• Three-phase, four-wire configuration supports both line and neutral connections
• Modular WS-series power module design for switchboard integration
• Substantial build at 147.82 pounds, reflecting industrial-grade construction
• Compact footprint relative to capacity: 15.189 inches x 16.311 inches x 50.130 inches

Compatibility

Designed as an OEM-style modular component for use within SIEMENS WS-series switchboard assemblies requiring three-phase, four-wire, 600-amp power module configurations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. The electrical service must be fully de-energized and locked out using proper lockout/tagout procedures before handling or installing this module. Given the unit weight of approximately 147.82 pounds, appropriate lifting equipment and a minimum two-person crew are recommended for safe positioning within the switchboard enclosure. Consult the manufacturer documentation and engineered drawings for proper bus alignment, torque schedules, and final inspection requirements.

Technical Specifications

• Amperage Rating: 600A
• Phase Configuration: 3-Phase, 4-Wire
• Length: 15.189 inches
• Width: 16.311 inches
• Height: 50.130 inches
• Weight: 147.82 pounds
• Package Quantity: 1 per Pack
• UPC: 04089215350

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: WS3600CU
