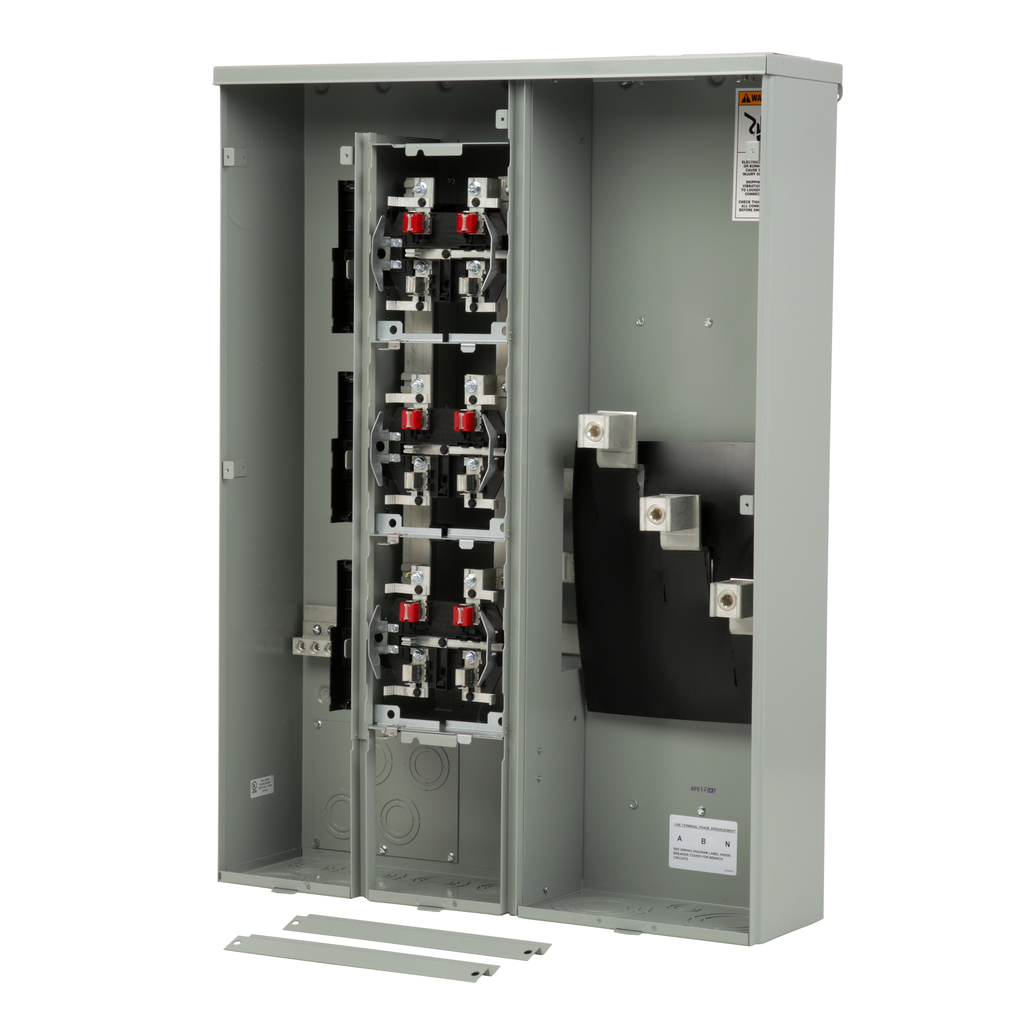

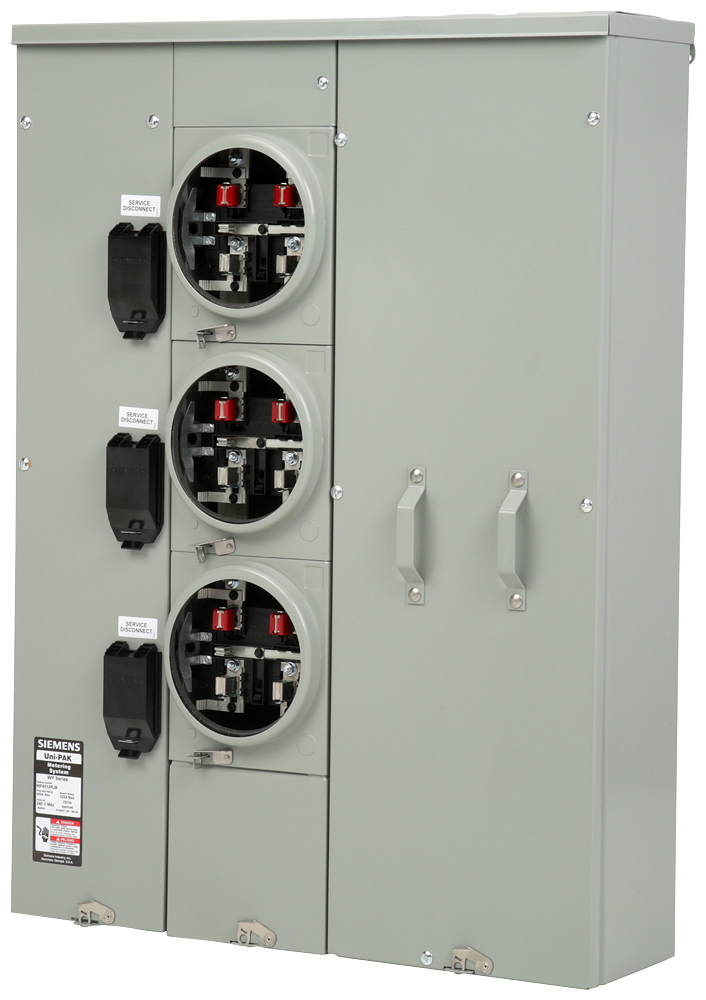

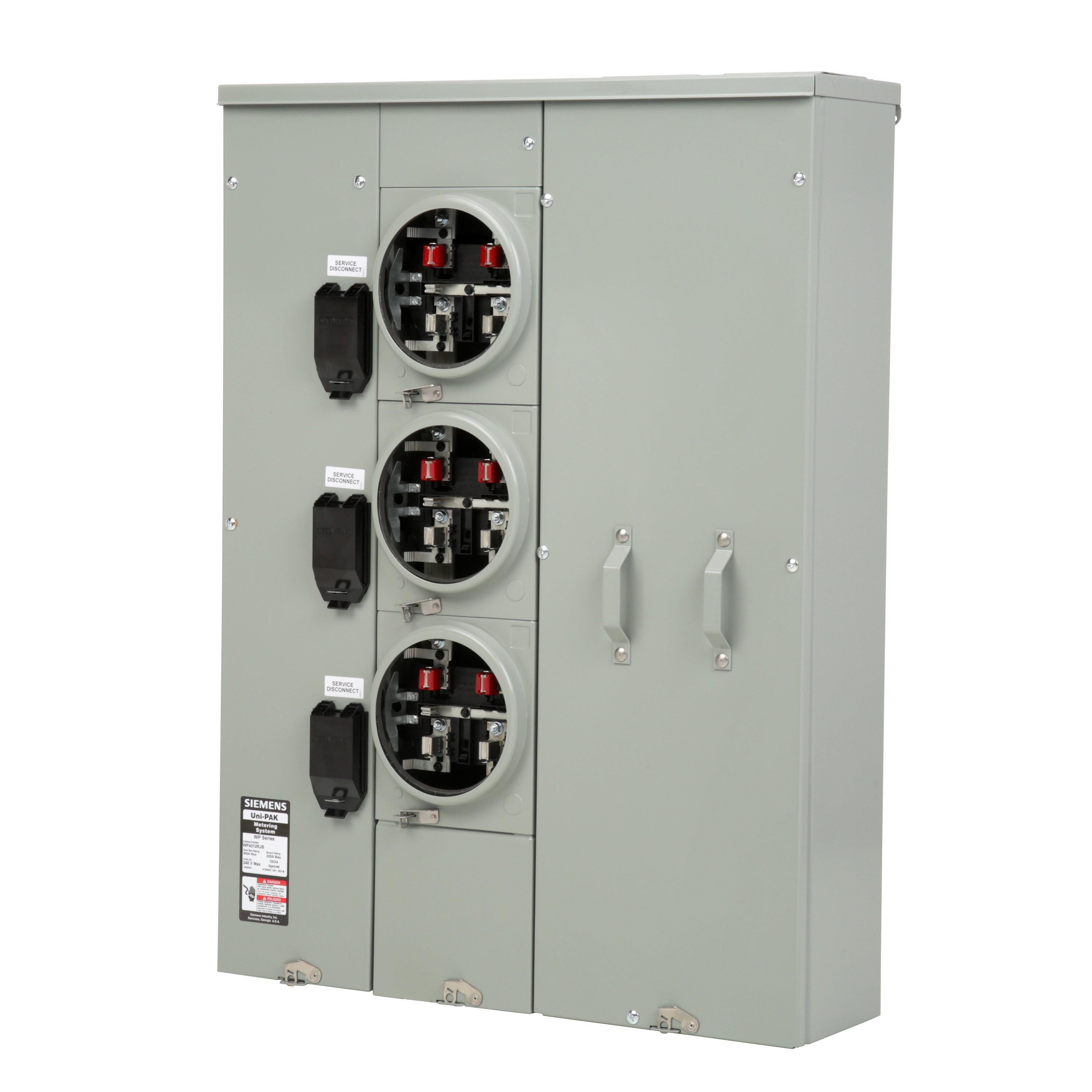

Siemens WP4312RJB uni-pak Meter Socket 400 A

Product Description

The Siemens WP4312RJB UNI-PAK Meter Socket is a 3-position meter socket from the WP Series. Rated for 120/240 V AC and 400 A, it is suitable for bottom/top feed applications. It features 5 jaws, accepts wire sizes from 1/0 to 3/0 AWG, and has a ringless cover with insulated insulation. Designed for surface mounting.

• Individual split covers with barrel lock compatibility
• Horn bypass factory installed
• Completely self-contained meter centers

Product Highlights

Compact, pre-bussed, and easy to handle, this meter socket is ideal for service entrance equipment and small buildings.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: WP4312RJB
• Country of Origin: USA

Technical Specifications

• Brand: Siemens
• Part Number #: WP4312RJB
• SKU #: 2352642
• Insulation: Insulated
• Series: WP Series
• Wire Size: 1/0 to 3/0 AWG, 1/0 AWG to 250 kcmil, 1/0 AWG to 750 kcmil
• Amperage: 400 Amp
• Applications: SERVICEENTRANCEEQUIPMENT
• Cable Entry: TOPANDBOTTOM
• Enclosure: RINGLESS
• Insulated?: Yes
• Mounting Type: SURFACE MOUNTING
• Number of Phases: 1 Phase
• Size: 3
• Type: METERSTACK
• Voltage: 120/240 Volt
• Sub Brand: Uni-PAK
• Mounting Style: Wall
• Maximum Amperage: 400 A
• Material: Metal
• Number of Poles: 2
• Model: WP4312RJB
• Country of Origin: United States
• Manufacturer Part Number: WP4312RJB
• Manufacturer: SIEMENS
