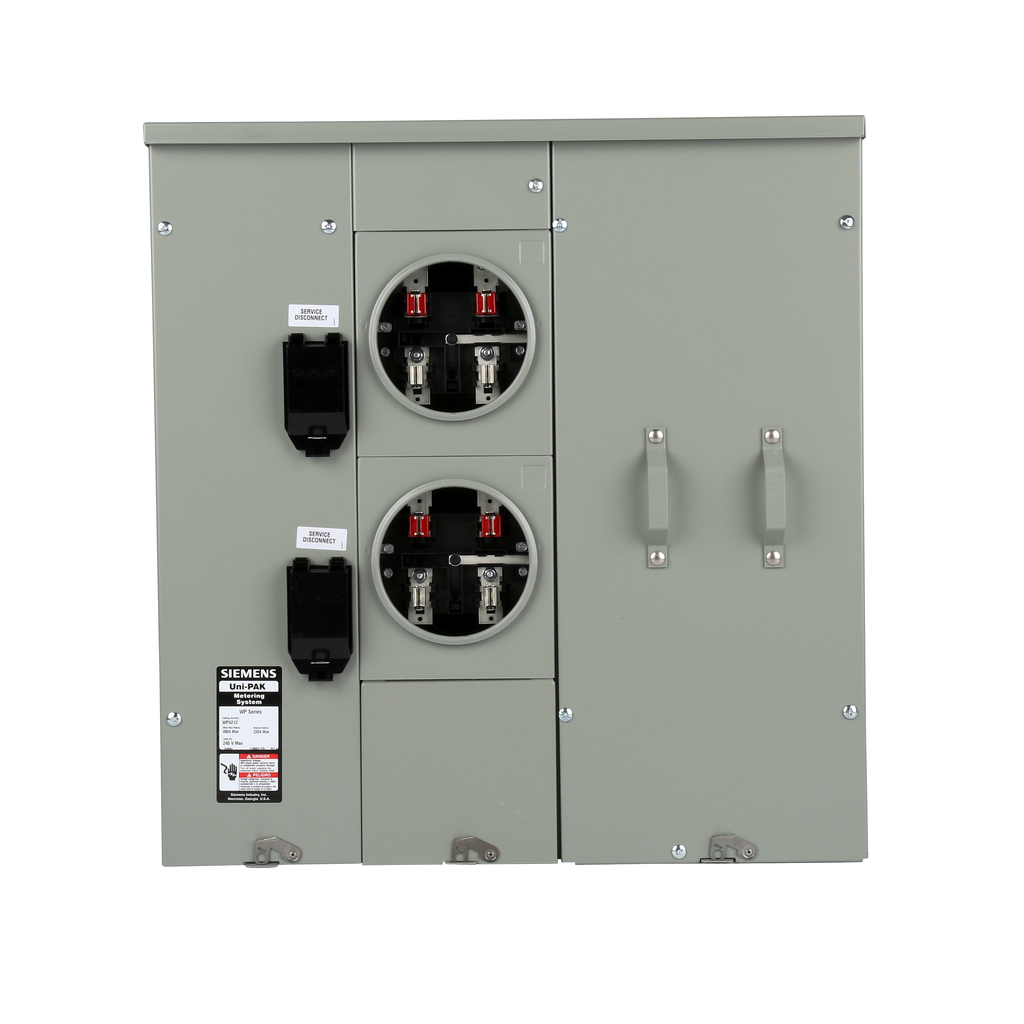

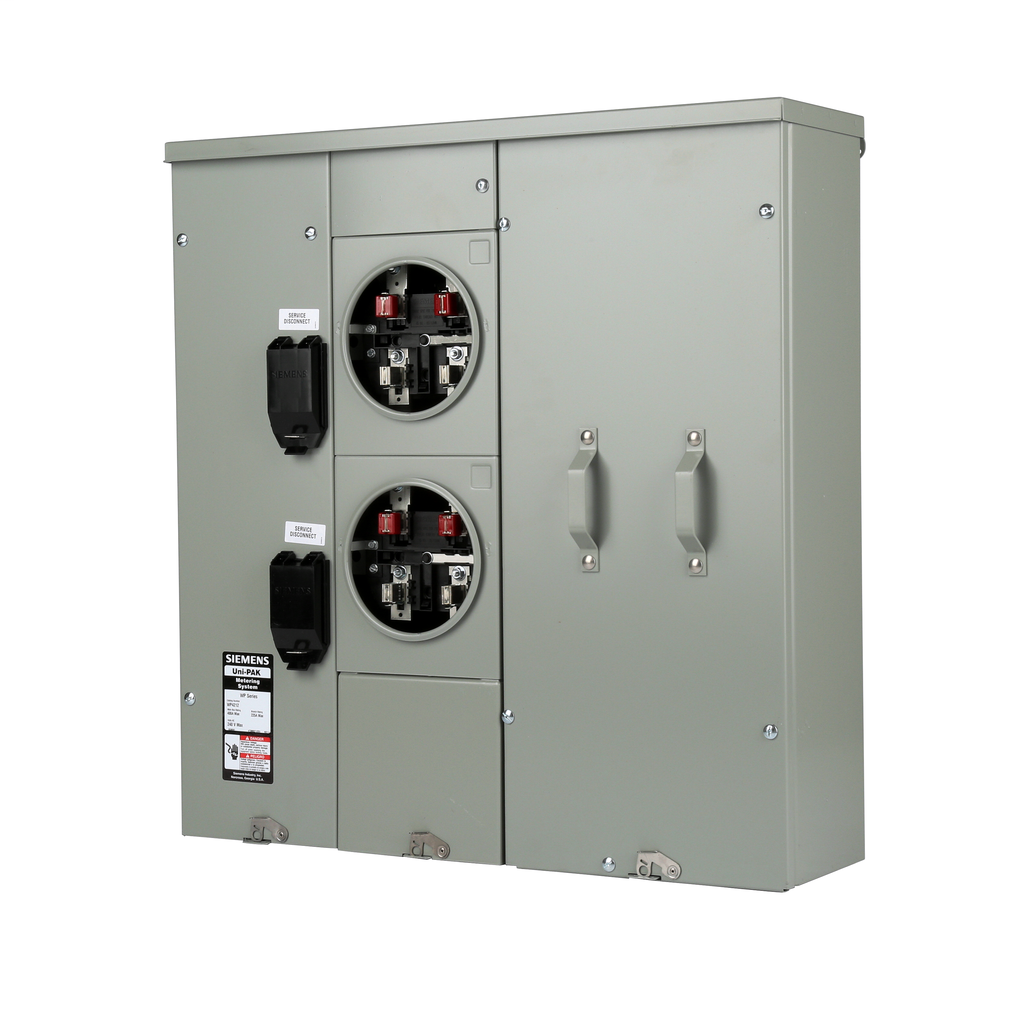

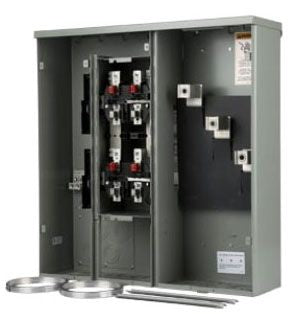

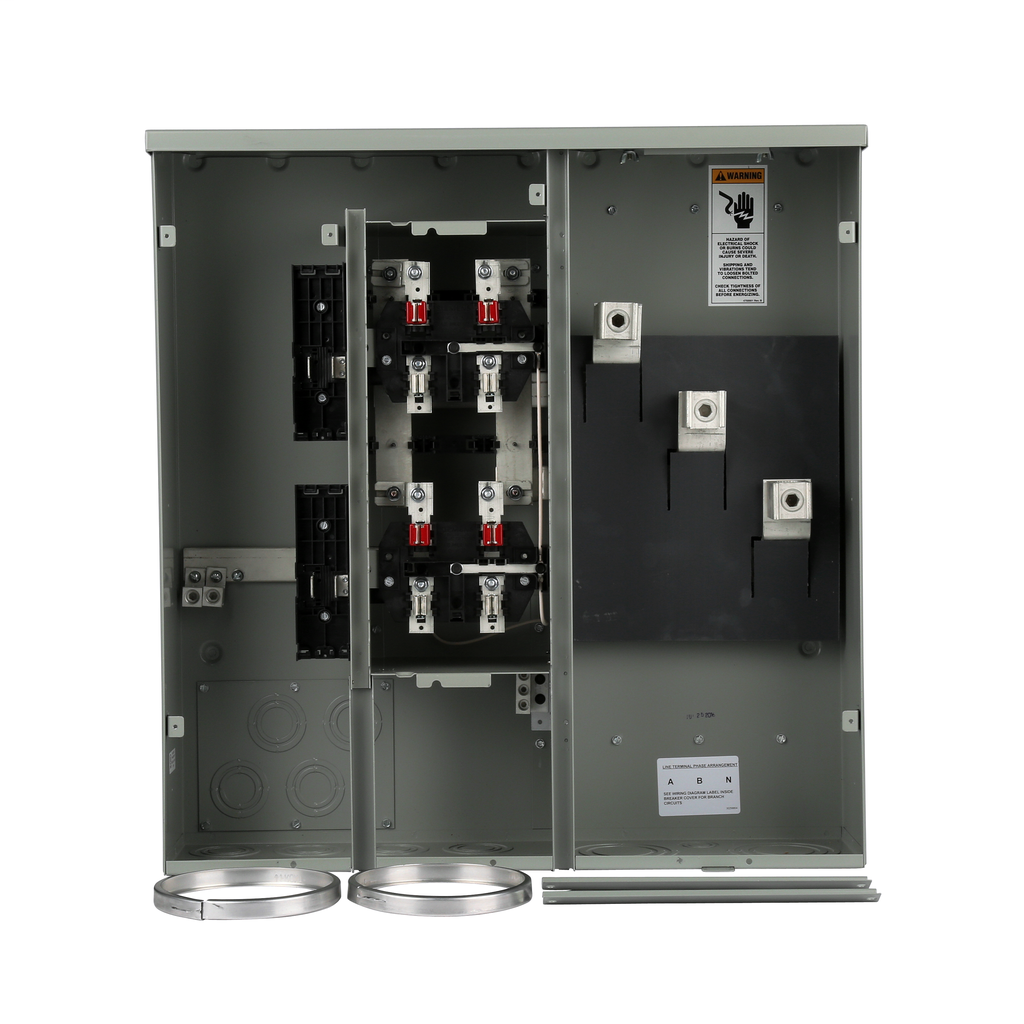

Siemens WP4212 2Pos 400A Meter Center

Product Description

The Siemens WP4212 is a 2-position meter center designed for commercial use. This equipment features a voltage rating of 120/240 V and a current rating of 400 amperes. It is ideal for small apartment buildings and professional settings.

• Two self-contained sockets with a current rating of 225 amperes.
• Constructed with a NEMA 3R rated enclosure, suitable for outdoor installations.
• Includes a factory/field installable 5th jaw kit for added flexibility.

Product Highlights

This meter center is compliant with UL standards and is designed for surface mounting.

Product Information

Standard Information

• Brand: Siemens
• MPN: WP4212

Technical Specifications

• Voltage Rating: 120/240 V
• Circuit Configuration: 1-Phase 3-Wire
• Enclosure Material: ANSI 61 Light Gray Electrodeposited Paint on Zinc Coated G90 Steel
• Approval: UL Listed
• Mounting Surface Size: 28.53 inches W x 7.56 inches D x 29.75 inches H
• Wire Size: 1/0 AWG to 750 KCMIL (Copper/Aluminum)
• Interrupt Rating: 100 Kiloampere
• Enclosure Type: Outdoor, NEMA 3R
