Siemens WMM32125RJB POWMOD WMM 125A 3G

Product Description

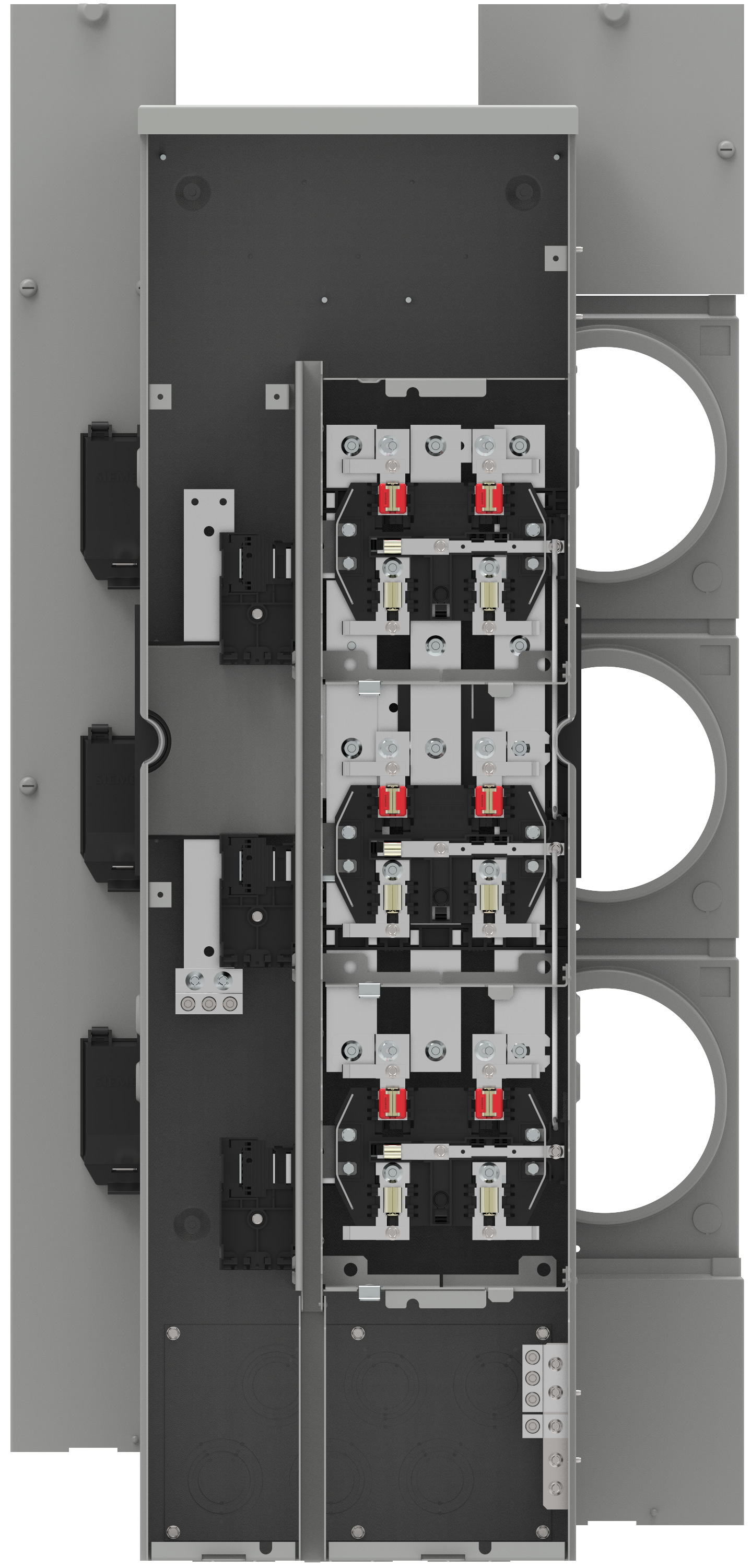

The Siemens WMM32125RJB POWMOD WMM 125A 3G 3PH IN 1PH OUT RL HB is a residential meter stack suitable for modular residential metering. It features a NEMA 3R enclosure and is designed for underground feed with a voltage rating of 120/208 VAC and 240/120 VAC. The meter stack has a 1200 A bus and a 125 A socket.

• Exclusive knockout plate offers flexibility when pulling wires to the stack
• New breaker supports keep breakers level and straight
• Moveable neutrals and grounds to save wire

Product Highlights

Siemens WMM32125RJB meter stack with NEMA 3R enclosure, 125A socket, and underground feed is ideal for residential and utility environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: WMM32125RJB
• Country of Origin: US

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: WMM32125RJB
• UPC Code: 040892147568
• Alternate Catalog Number: US2:WMM32125RJB
• Amperage Rating: 125 A
• Application: MODULARRESIDENTIALMETERING
• ARRA Compliant: C
• Breaker Type: QP/MP-T/QPH/HQP/MP-HT/MP-MT
• Buy American Compliant: C
• Cable Entry: THRU-BUS
• Catalog Number: WMM32125RJB
• Country of Origin: United States of America (the)
• Enclosure Type: NEMA 3R
• EU RoHS Indicator: C
• Harmonization Tariff Schedule Code: 8537109150
• Mounting: SIEMENSQuickRoll
• Mounting Type: Rail
• Number Of Cutouts: 6
• Number of Meter Sockets: 3
• Phase: 1/3 ph
• Series: WMM
• Socket Cover Style: Ringless
• Socket Jaws: 5
• Standard: UL67
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 67UL 489UL File No. E27100
• Sub Brand: POWERMOD
• Terminal: 5-JAW
• Type: 6-Cutout 3/4-Wire Type WMM Insulated
• UNSPSC: 39121102
• UPC 11: 04089214756
• UPC 12: 040892147568
• Bus Amps: 1200 A
• Feed Type: Underground
• Socket Amps: 125 A
• Voltage Rating: 120 to 208/240 to 120 V AC
• GTIN: 00040892147568
• BABA Compliant: No
• Sold as: EACH
• Maximum Amperage: 125 A
• Model: wmm52125RJB
