Siemens WMM22225RJ Powmod WMM 225A 2G 3

Product Description

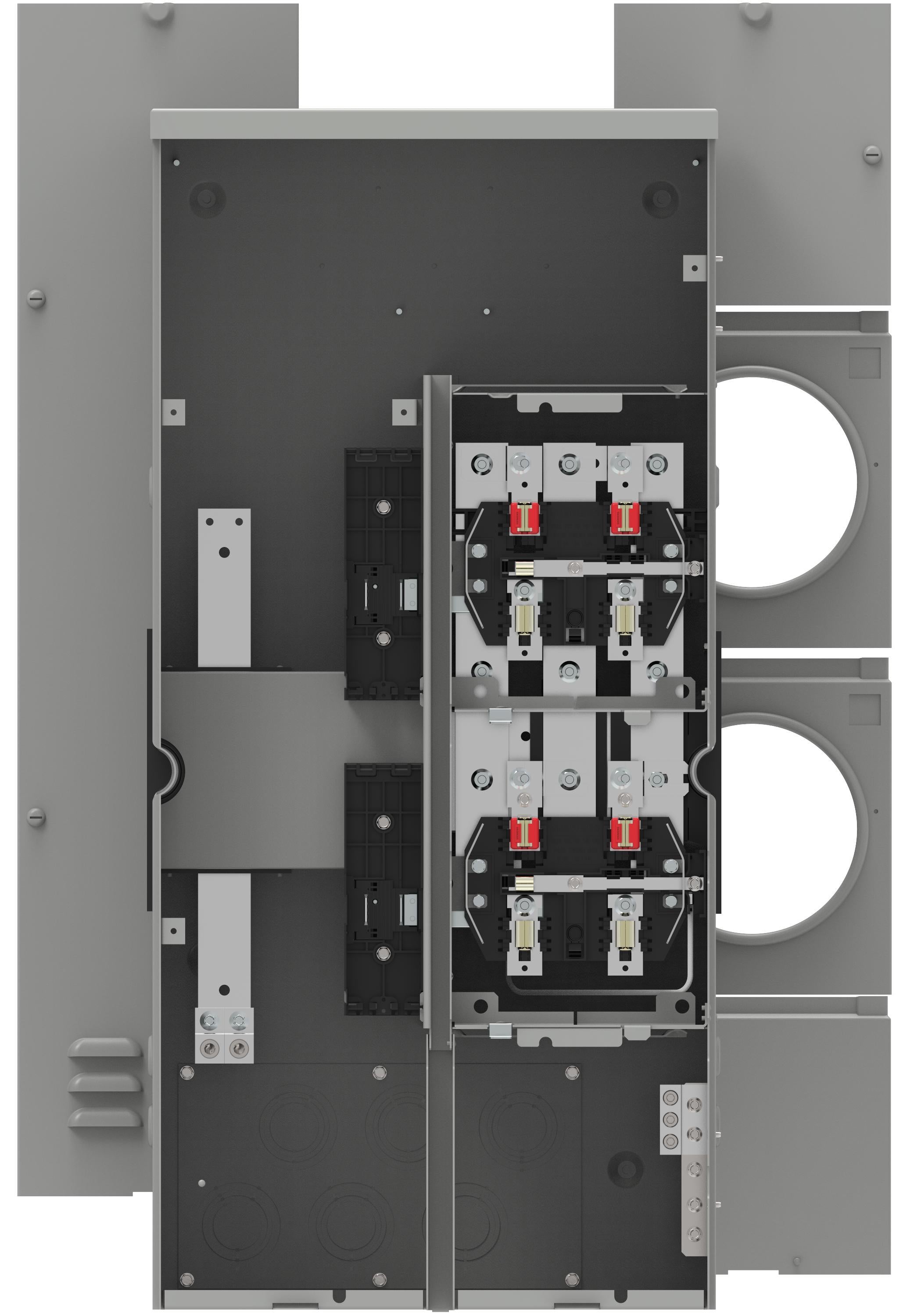

The Siemens WMM22225RJ Powmod WMM is a residential meter stack with a 3-Phase 4-Wire Incoming and 1-Phase 3-Wire Outgoing configuration. It features a 5 Jaws Ringless Type and provides 2 meter positions per stack, with a 225A maximum tenant breaker. Designed for outdoor use, this modular residential metering system is suitable for various applications.

• Residential Meter Stack
• 3-Phase 4-Wire Incoming
• 1-Phase 3-Wire Outgoing

Product Highlights

This Siemens meter stack is designed for residential metering applications, offering a reliable solution for distributing power to multiple tenants.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: WMM22225RJ
• Country of Origin: US

Technical Specifications

• Type: WMMRESIDENTIALMETERSTACK
• Brand: Siemens
• Voltage: 120/240 Volt
• Amperage: 225 Amp
• Enclosure: RINGLESS
• Sub Brand: POWERMOD
• Insulated?: Yes
• Cable Entry: THRU-BUS
• Applications: MODULARRESIDENTIALMETERING
• Mounting Type: SIEMENS QuickRoll
• Number of Phases: 3 Phase In/1 Phase Out
• Application: Garden Style, Meter Rise, High Rise, Residential and Outdoor Applications
• Breaker Type: QS/QSH/QSHH/HQS/HQSH/QP/MP-T/QPH/HQP/MP-HT/MP-MT
• Bus Amps: 1200 A
• Enclosure Type: NEMA 3R
• Feed Type: Underground
• Mfg Standards/Approvals: UL 67|UL File No. E27100
• Number of Meter Sockets: 2
• Phase: 1/3
• Series: WMM
• Socket Amps: 225 A
• Socket Cover Style: Ringless
• Socket Jaws: 5
• Voltage Rating: 120/208 VAC, 240/120 VAC
• Standard: UL-67
• Special Features: NO BYPASS, EXTRA JAW, RINGLESS
• Mounting Style: Modular
• Maximum Amperage: 225 A
• Model: WMM22225RJ
