Siemens UAT417-XGF Meter Mounting Equipment 200A Ringless Type SSHASP

Product Description

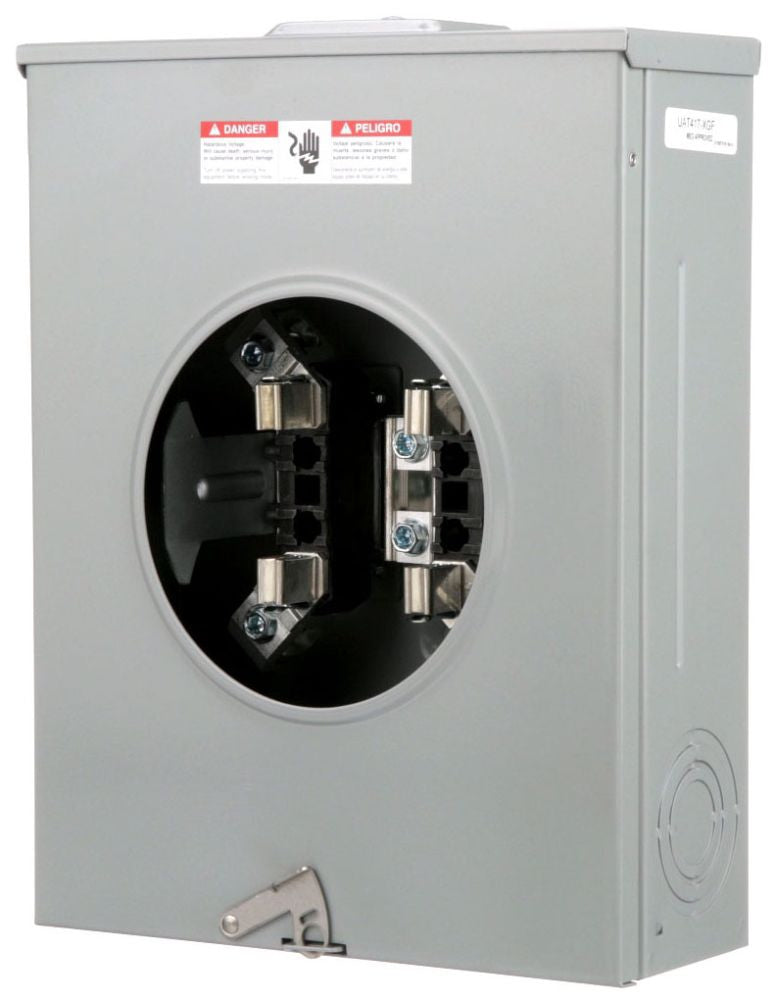

Siemens UAT417-XGF is a 200 Amp meter socket designed for overhead and underground applications. This unit features a ringless design suitable for residential settings. It is built with a NEMA three R enclosure, ensuring protection against weather elements. The product supports various wire sizes from six AWG to three hundred fifty KCMIL. The Siemens UAT417-XGF is ideal for reliable performance in both domestic and commercial applications.

• UL Listed for safe and dependable use.
• Compatible with single phase, three wire circuits.
• Constructed from sixteen gauge painted steel for durability.

Product Highlights

This meter socket is designed for easy installation and service access. It includes provisions for multiple knockouts for varied electrical connections.

Product Information

Standard Information

• Manufacturer: Siemens
• Type: Ringless

Technical Specifications

• Approval: UL
• Circuit Configuration: 1-Phase 3-Wire
• Enclosure: NEMA 3R
• Hub Type: 2.75 Inch RX Closing Plate
• Knockouts: 6 (1 Inch-2.5 Inch) and concentric knockouts
• Neutral Type: Quad Ground
• Number Of Jaws: 4
• Service Type: Overhead/Underground
• Size Dimensions: 11 inches x 4.5 inches x 14.8 inches
• Wire Size: 6 AWG to 350 KCMIL (Line/Load)
