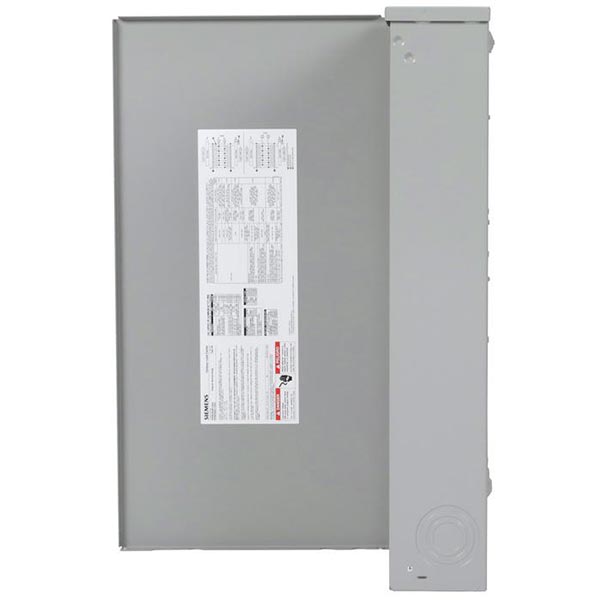

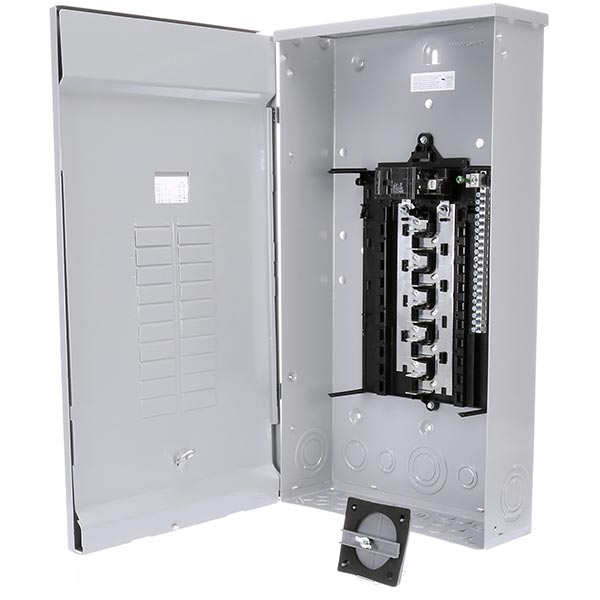

Siemens SNW2020B1100 Main Breaker Load Center, 20 Spaces / 20 Circuits, 100A

Product Description

The SIEMENS SNW2020B1100 is a low voltage plug-on neutral ready standard series assembled load center with a main breaker. It features 20 1-inch spaces allowing a maximum of 20 circuits. This is a 1-phase 3-wire system rated at 120/240V (100A) with a 22KAIC rating. The Nema Type 3R enclosure is designed for outdoor use.

• Plug-on neutral ready
• 20 1-inch spaces allowing max 20 circuits
• NEMA type 3R enclosure for outdoor use

Product Highlights

This Siemens load center is ideal for residential and light commercial electrical distribution. It features an aluminum bus and grey trim.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: SNW2020B1100
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: SNW2020B1100
• Brand: Siemens
• Manufacturer: Siemens
• Sub Brand: UL
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 100
• Application: RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
• Enclosure: TYPE3R
• Interrupt Rating: 22000 AMPS
• Phase: 1
• Special Features: GREYTRIM
• UPC: 804766703614
• GTIN: 00804766703614
• Item Type: PLUG-ONNEUTRALREADYSTANDARDSERIES
• Voltage Rating: 120
• Spaces / Circuits: 20 Spaces / 20 Circuits
• Wiring: 3-Wire
• Voltage: 120/240V
• Amperage: 100A
• Short Circuit Current Rating: 22KAIC
• Bus Material: Aluminum
• Enclosure Type: NEMA-3R
• Number of Circuits: 20
• Number of Spaces: 20
• Type: Main Breaker Load Center
• Maximum Amperage: 100 A
• Mfg Standards/Approvals: UL Listed
• Mounting Type: Surface
• Number of Phases: 1
• Interrupting Capacity: 22KAIC
• System: 1-Phase 3-Wire
