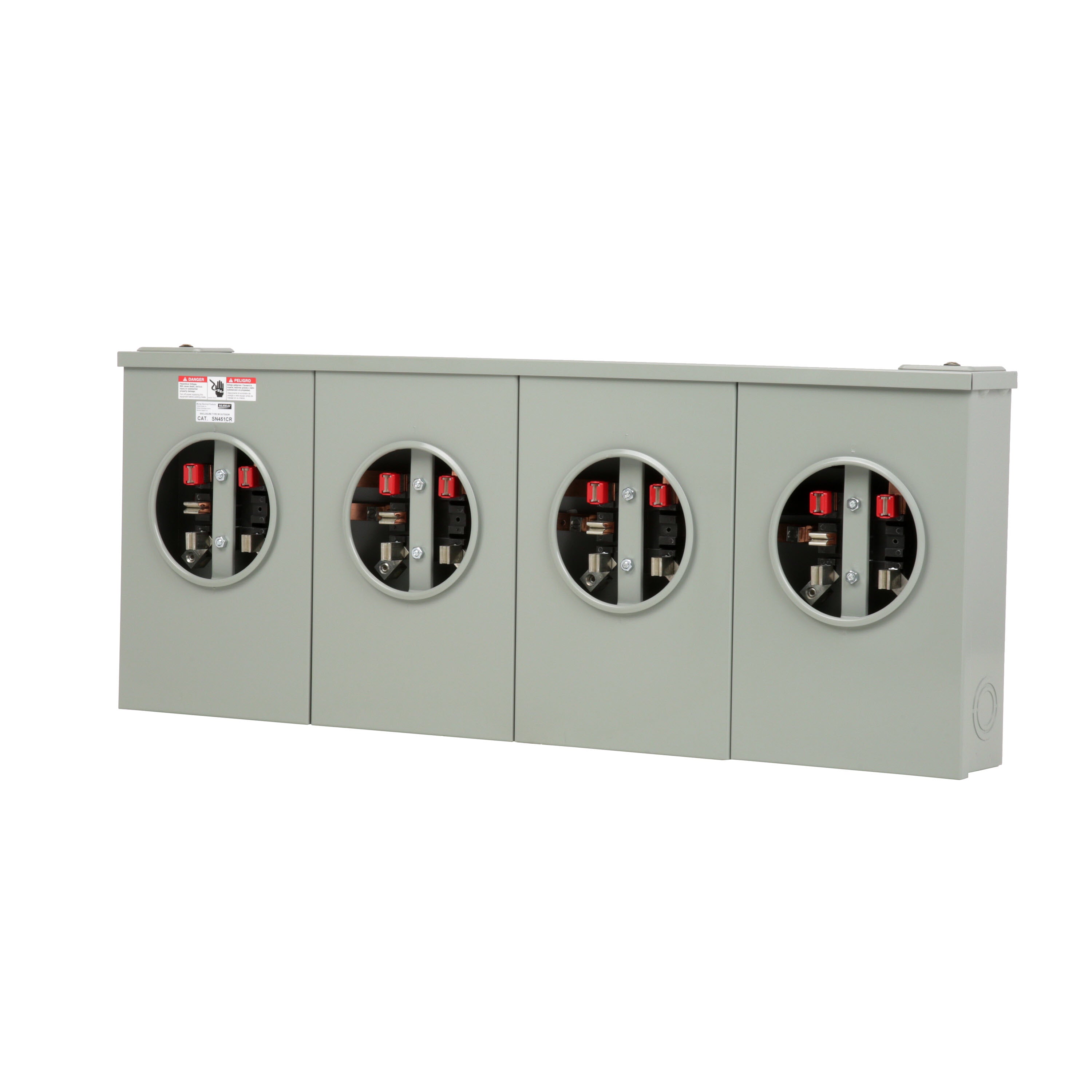

Siemens SN451CR meter socket 100A (4.900X17.400X41.300)

Product Description

The Siemens SN451CR is a low voltage Talon meter socket designed for residential enclosures and single-family metering. Rated at 300V and 100A, this meter socket is suitable for 1 or 3 phase systems. Siemens meter sockets set the standard for quality, design and workmanship.

• 6 AWG to 250 kcmil line lug, 8 to 2/0 AWG load lug
• Without bypass
• Residential Enclosures

Product Highlights

Residential meter socket with aluminum enclosure, designed for surface mounting and ease of installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: SN451CR
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 100
• Application: Residential
• Country of Origin: US
• Enclosure: Aluminum
• Mounting: SURFACE MOUNTING
• Operating Temperature: Average Ambient
• Phase: 1-3
• Special Features: 6 AWG to 250 kcmil line lug, 8 to 2/0 AWG load lug Without bypass
• Standard: UL
• Type: UAS8/9
• Voltage Rating: 300
• Wire Size: 6 AWG to 250 kcmil, 8 to 2/0 AWG
• Mounting Type: Surface
• Terminal Type: Line/Load Lug
• Enclosure Type: NEMA 3R
• Hub Type: RX Closing Plate
• Cover Type: Ring
• Number Of Cutouts: 12
• Cutout Size: 2X2.750,10X(1,1-1/4,1-1/2,2)
• Cable Entry: OH
• Terminal: 5 TERMINALS
• Maximum Amperage: 100 A
• Voltage: 240 VAC
