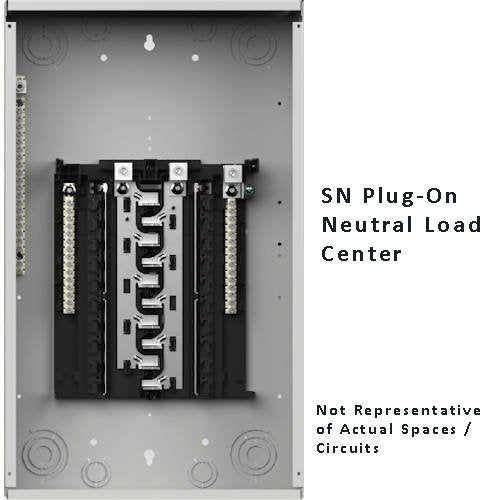

Siemens SN2040B1100 100A Main Breaker Load Center, 20 Spaces / 40 Circuits, 1 Phase 3 Wire 120/240V

Product Description

The Siemens SN2040B1100 is a 100 amp main breaker load center designed for residential use. It accommodates up to 40 circuits across 20 spaces. This unit operates on a single-phase, 3-wire system with a voltage rating of 120/240 volts. It features an aluminum bus and is housed in a NEMA type 1 enclosure suitable for indoor installations.

• 100 amp maximum load capacity
• Compatible with plug-on neutral breakers
• NEMA type 1 enclosure for indoor use

Product Highlights

This load center is geared towards efficiency and ease of installation. It includes labor-saving features designed for contractors.

Product Information

Standard Information

• Brand: Siemens
• Model Number: SN2040B1100

Technical Specifications

• Amperage Rating: 100 A
• Dimensions: 15.5 in W x 22.13 in H
• Enclosure Type: NEMA 1
• Interrupt Rating: 22 kAIC
• Number of Circuits: 40
• Number of Spaces: 20
• Voltage Rating: 120/240 VAC
• Wiring Configuration: 3-Wire
