Siemens SKB82.51U Direct Coupled Actuator 610 lbs Replacement MPN

Product Description

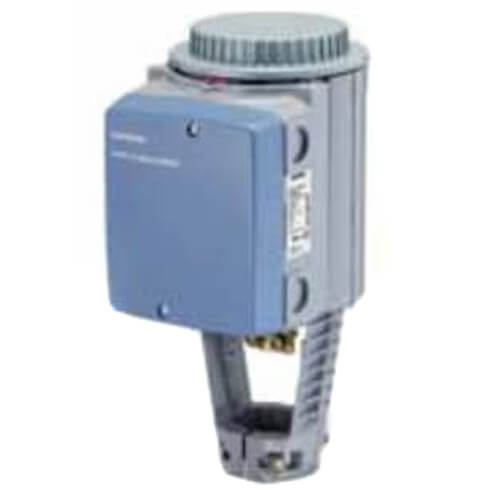

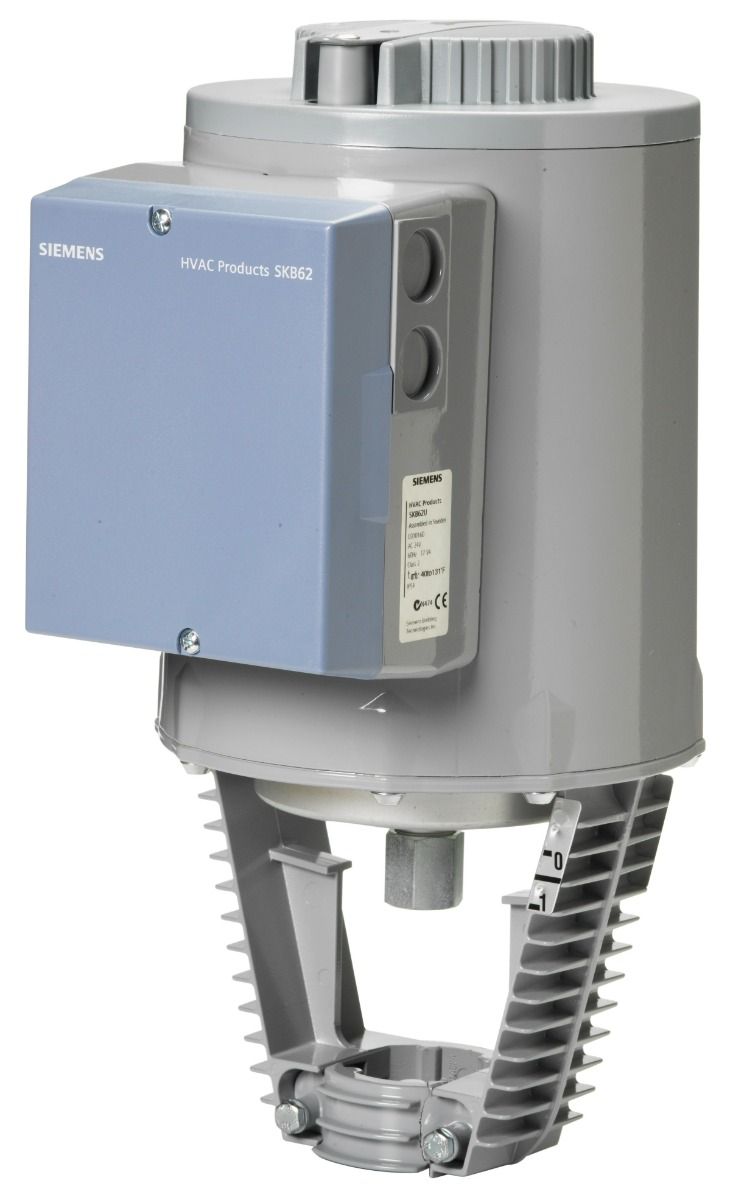

The Siemens SKB82.51U Direct Coupled Actuator is designed for efficient operation with standard valves. This actuator operates on a 24 VAC power supply and is suitable for liquid and steam service applications. It is ideal for use with Flowrite valves and provides reliable performance in HVAC systems.

• Direct-coupled installation simplifies setup.
• Spring return feature ensures fail-safe operation.
• Maintenance-free design enhances service longevity.

Product Highlights

This actuator offers a nominal force of 1000 lbf and an operating temperature range of 5°F to 130°F. It features a visual stroke indication and a manual override for ease of use.

Product Information

Standard Information

• Brand: Siemens
• MPN: SKB82.51U

Technical Specifications

• Power Consumption: 18 VA
• Operating Temperature: 5°F to 130°F (-15°C to 55°C)
• Housing: NEMA 1
• Stroke: 3/4 inches
• Actuator Type: Electrohydraulic
• Control Signal: Floating
• Fail Safe Mode: Spring Return
• Weight: 2 lbs
