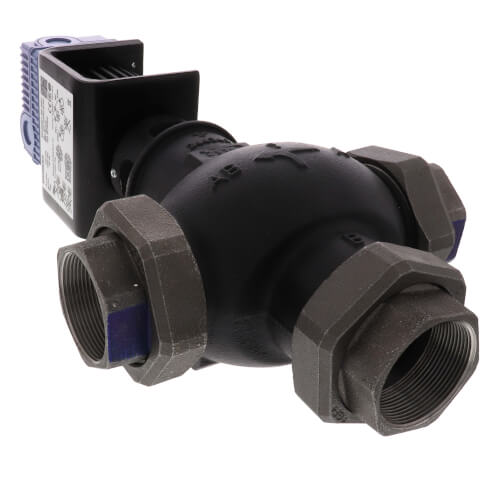

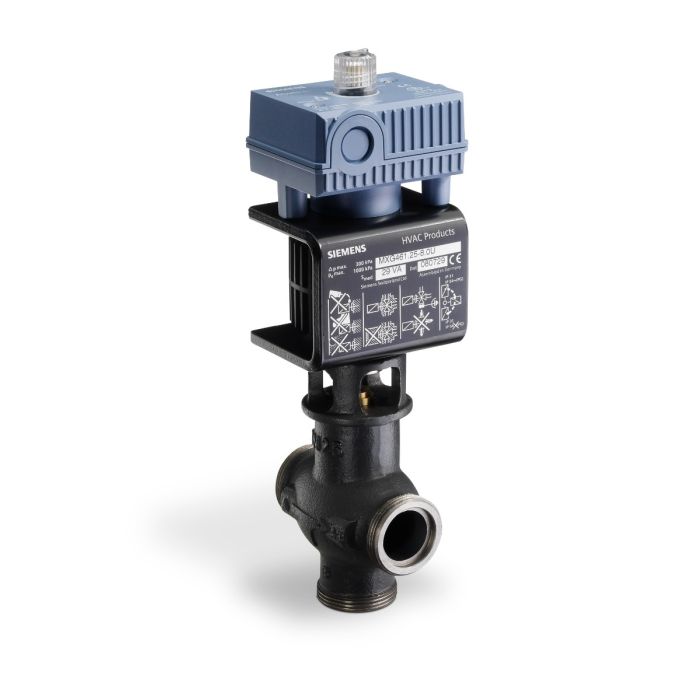

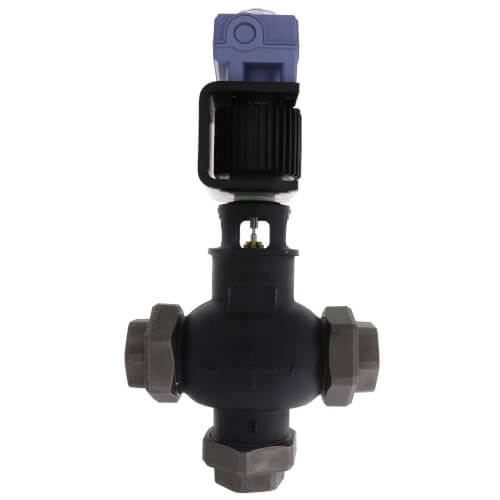

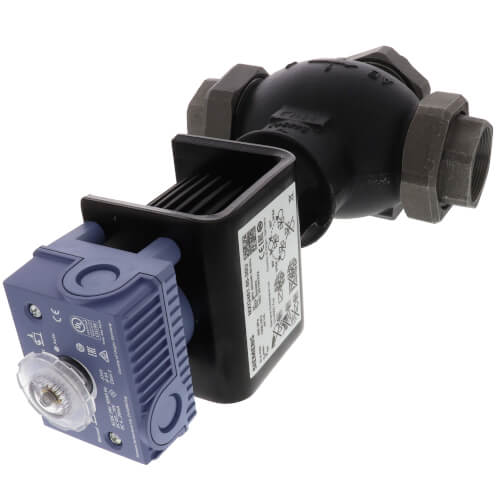

Siemens MXG461.50-30U Modulating Control Valve, 3 Way (2 in.)

Product Description

The Siemens MXG461.50-30U is a modulating control valve with a three-way configuration designed for HVAC applications. This valve features a two-inch flanged connection and provides a flow capacity of 35 Cv, suitable for hot and chilled water systems. Its robust construction includes a brass body and stainless steel trim, promoting durability and corrosion resistance.

• Fast positioning time under two seconds
• High-resolution stroke with a ratio of 1:1000
• Switch-selectable control signals, including 0 to 10 Vdc, 2 to 10 Vdc, or 4 to 20 mA

Product Highlights

This valve is ideal for process control, energy management, and fluid handling in industrial systems.

Product Information

Standard Information

• Brand: Siemens Building Technology
• Part Number: MXG461.50-30U

Technical Specifications

• Connection Size: 2 inches NPT
• Flow Capacity: 35 Cv
• Body Material: Brass
• Trim Material: Stainless Steel
• Operating Temperature: Up to 114 F (45 C)
• Close-Off Pressure: 45 psi
• Service Fluid: Water or water/glycol mixtures with a maximum of 50% glycol
• Control Signal Options: User-selectable linear or equal-percentage valve characteristics
