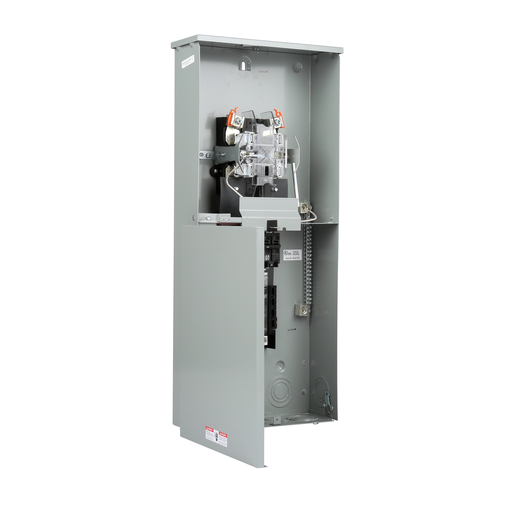

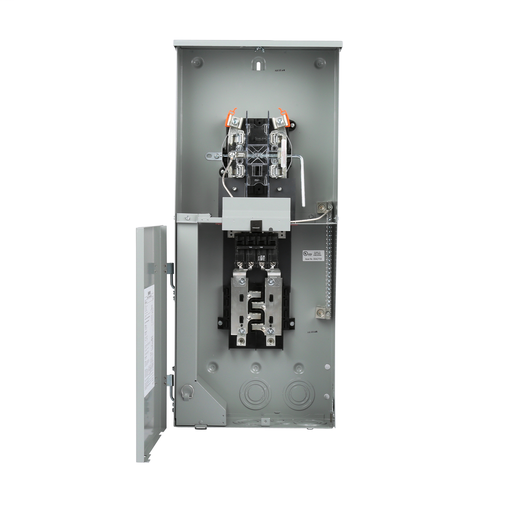

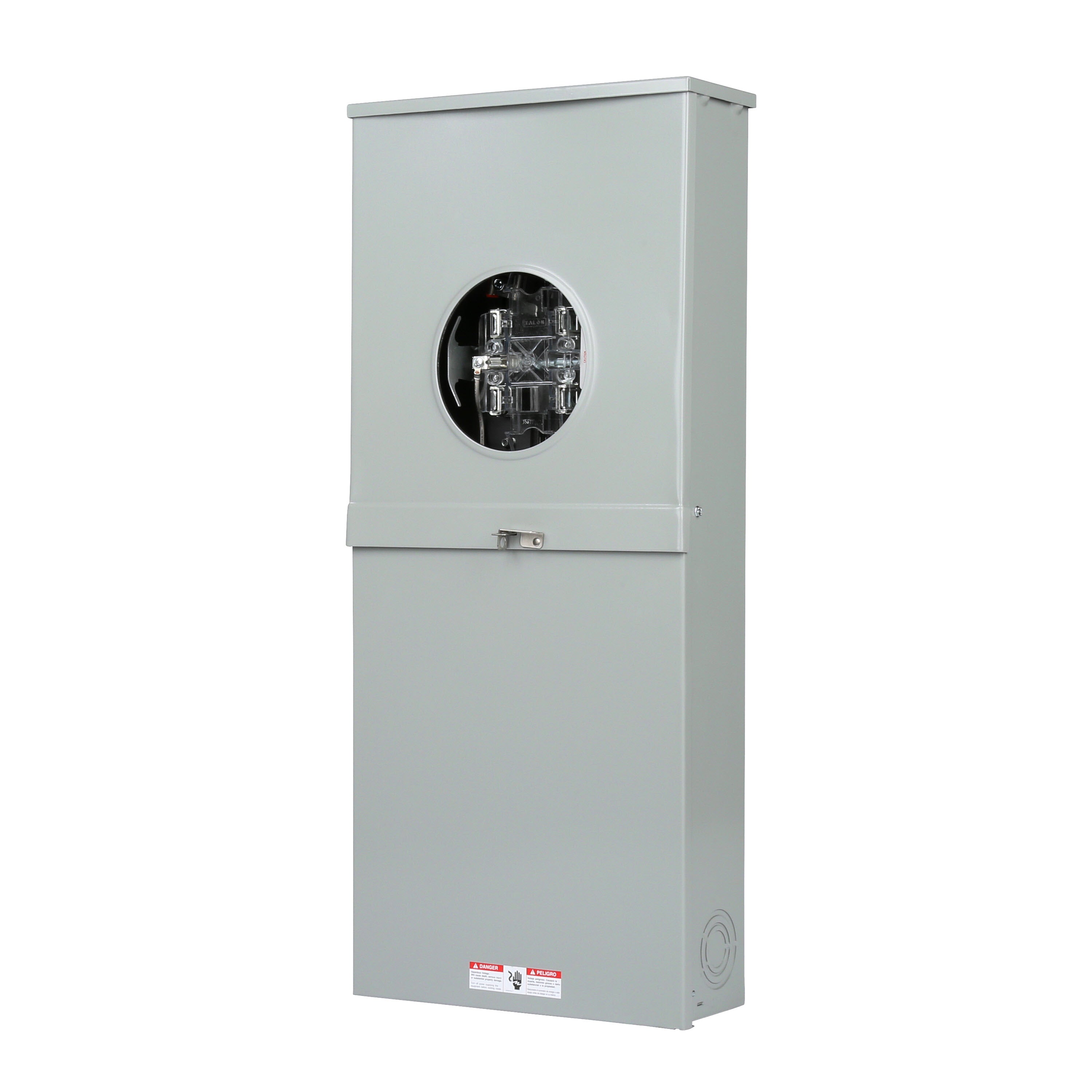

Siemens MC0816B1150JLT 150 Amp Loadcenter Combination Meter Socket (8 Spaces)

Product Description

Siemens MC0816B1150JLT is a 150 A loadcenter combination meter socket with a factory-installed main breaker and a 5-jaw meter socket for single-phase service. The unit provides eight 1-inch interior spaces supporting up to 16 circuits and is rated for 120/240 VAC with overhead or underground feed. It includes a ring-type cover, lever bypass socket, feed-through lugs, surface mount design, and measures 32.1 x 14.3 x 5.2 in.

• Factory-installed main breaker; 150 A rating for single-phase 120/240 VAC service
• Five-jaw meter socket with lever bypass and ring-type cover; RX top/HC bottom configuration
• Eight 1-inch interior spaces supporting up to 16 circuits, with feed-through lugs and surface mount installation

Product Highlights

150 A single-phase meter/loadcenter combination with 8 interior spaces, 5-jaw meter, lever bypass, and feed-through lugs

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MC0816B1150JLT

Technical Specifications

• Brand: Siemens
• MPN: MC0816B1150JLT
• Product Name: MC0816B1150JLT 150 Amp Loadcenter Combination Meter Socket
• Type: Meter load center - main disconnect combination
• Amperage Rating: 150 A
• Voltage Rating: 120/240 VAC
• Phase: Single-phase
• Meter Type: 5-jaw meter socket
• Interior Spaces: 8 (1-inch) spaces
• Maximum Circuits: 16 circuits
• Main Breaker: Factory-installed main breaker
• Feed Type: Overhead / Underground
• Cover Type: Ring-type cover
• Bypass: Lever bypass socket
• Lugs: Feed-through lugs
• Mounting Type: Surface
• Dimensions: 32.1 in H x 14.3 in W x 5.2 in D
• Interrupt Rating: 22 kA
• Standards/Approvals: ARRA Compliant; Buy American Act Compliant; RoHS Compliant; UL 67
• Cable Entry: Top/Bottom
• Configuration: RX top / HC bottom
• Pad Locking Provisions: Pad locking provisions on all devices
• Door Type: Side-hinged door removable by backing out one screw
• Load Wire Exit: Bottom or back exit only
• Application: Service entrance equipment; overhead and underground feed applications
• Category: Meter Socket Loadcenter Combinations
