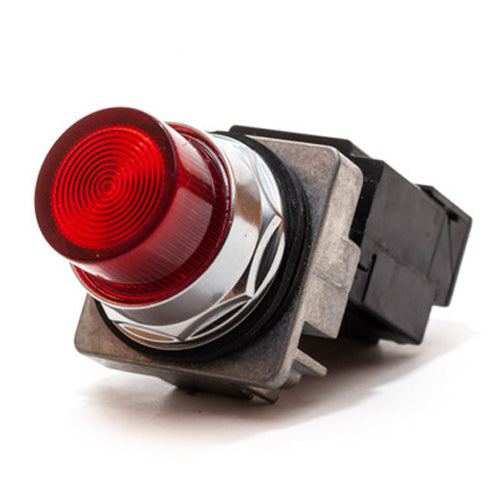

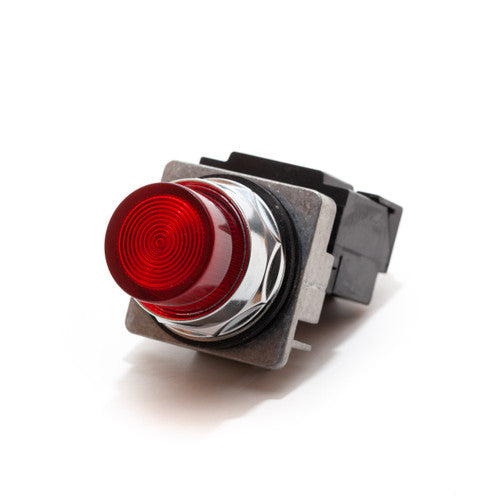

Siemens 52PL4E2XYP Pilot Light 120 V AC/VDC (30 mm)

Product Description

Siemens 52PL4E2XYP is a full-voltage pilot light designed for 120 V AC/VDC control and indication applications. The 30 mm panel-mount unit uses a super-bright LED lamp, features touchsafe terminals, and is rated for NEMA 3/4/4X/12/13 enclosures. The assembly includes the LED module, interchangeable plastic lenses and legend plates (ON, STOP) for panel indication and status signaling in industrial control panels.

• Full-voltage operation at 120 V AC/VDC with a super-bright LED lamp
• 30 mm panel-mount design with touchsafe terminals and plastic lenses
• Includes LED module, interchangeable lenses and ON/STOP legend plates; rated NEMA 3/4/4X/12/13

Product Highlights

Full-voltage 30 mm LED pilot light with touchsafe terminals, interchangeable plastic lenses, ON/STOP legends, and NEMA 3/4/4X/12/13 enclosure ratings.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PL4E2XYP

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 52PL4E2XYP
• Product Type: Pilot Light
• Input Voltage: 120 V AC/VDC
• Size: 30 mm
• Lamp Type: Super bright LED
• Lens Material: Plastic
• Terminal Type: Touchsafe
• Mounting Type: Panel mount (30 mm bezel)
• Enclosure Rating: NEMA 3/4/4X/12/13
• Includes: 52PL4D2XY LED, 52RA4S3 green lens, 52RA4S9 amber lens, 52NL11 ON legend, 52NL04 STOP legend
• UPC: 804766349447
• Catalog ID: SIE52PL4E2XYP
• UNSPSC: 39121534
