Siemens 52PA8A1 Heavy Duty Pushbutton, 30 mm

Product Description

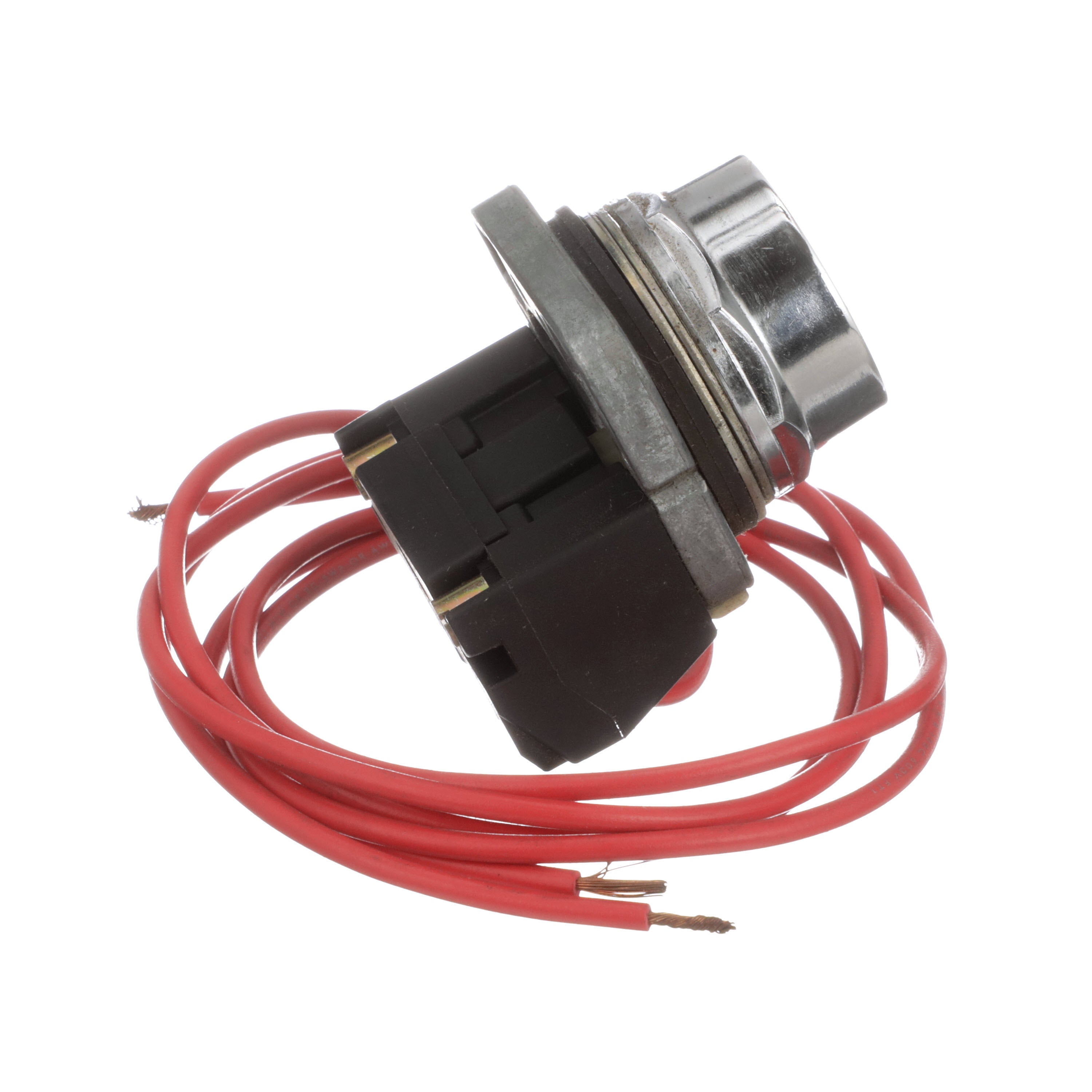

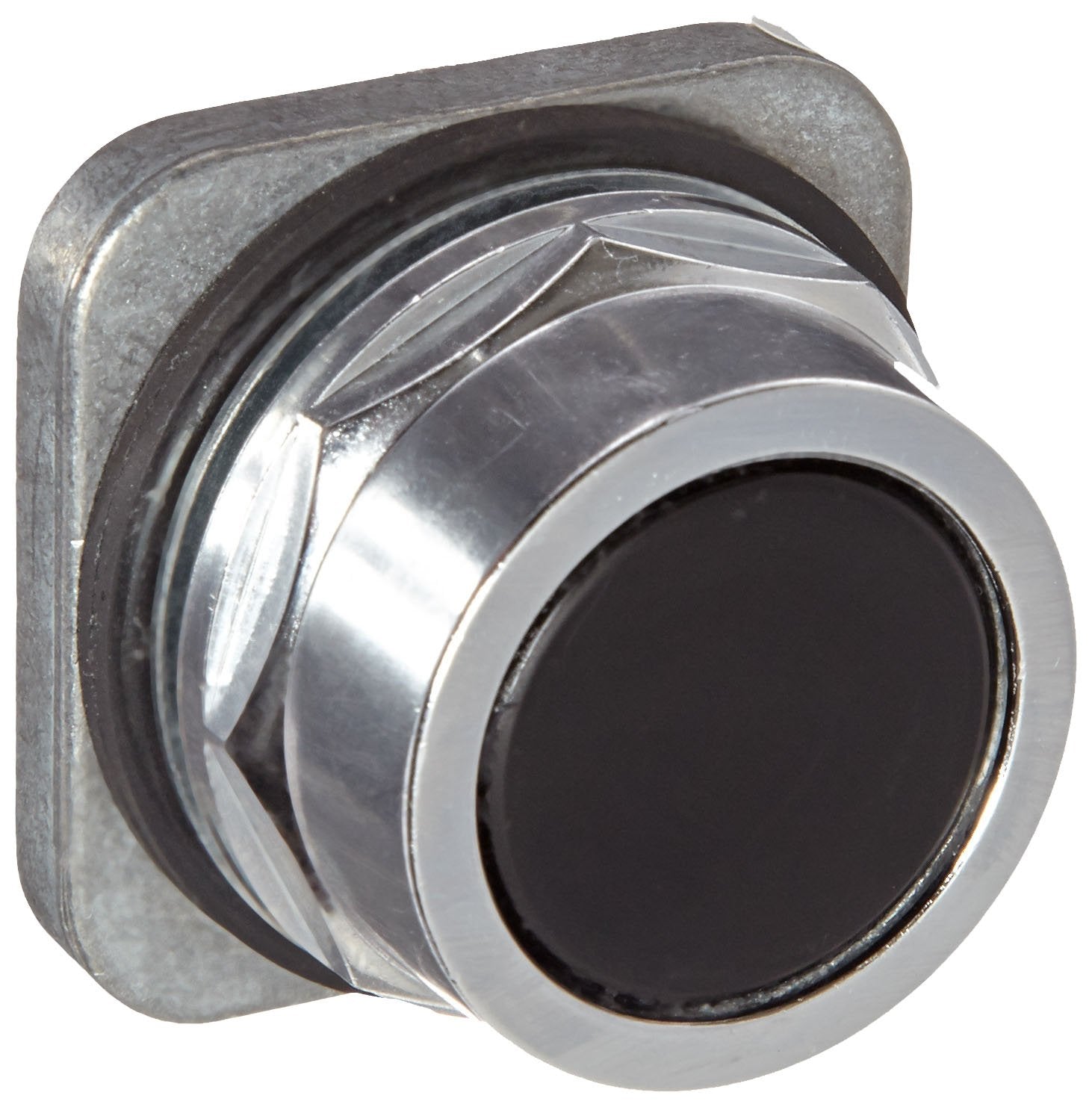

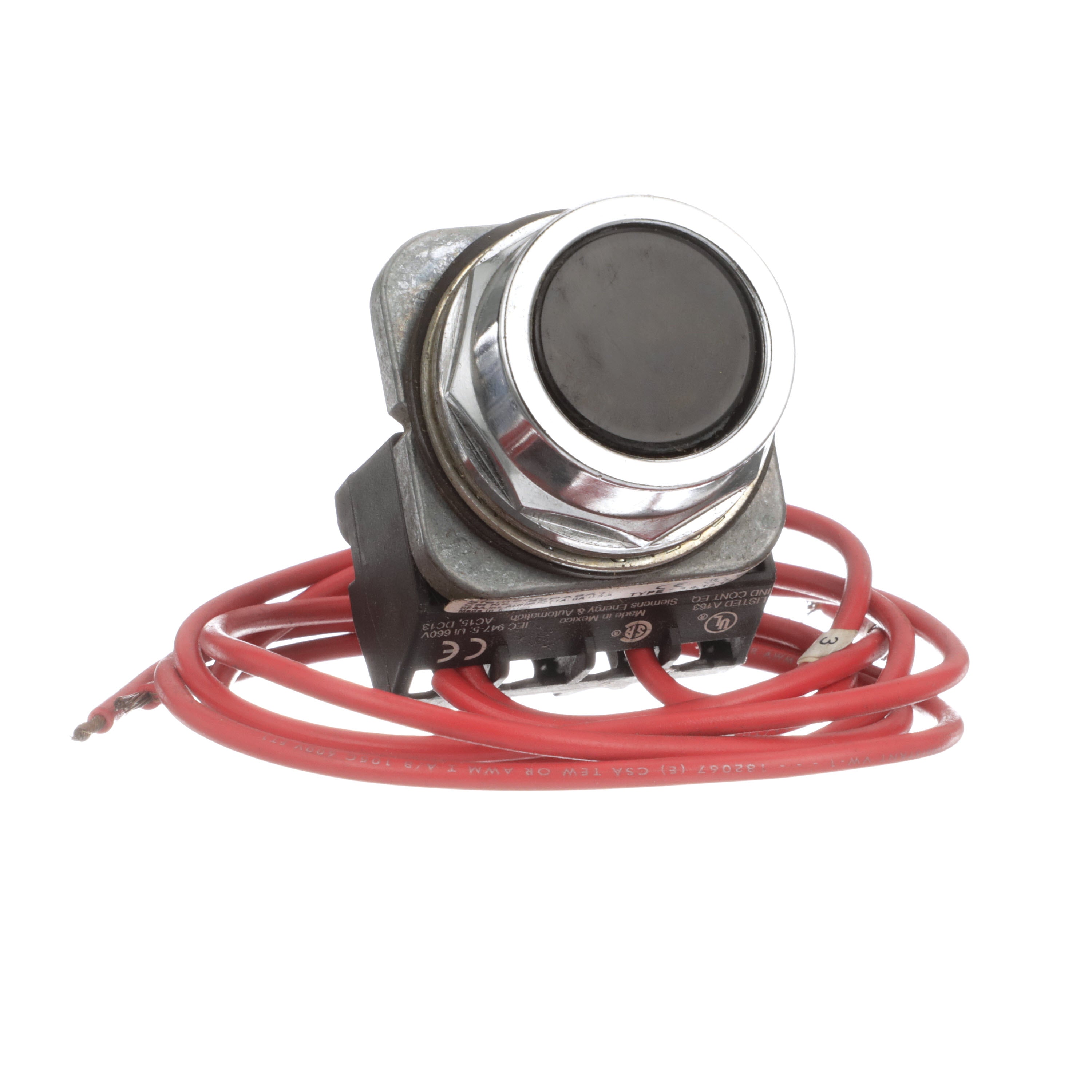

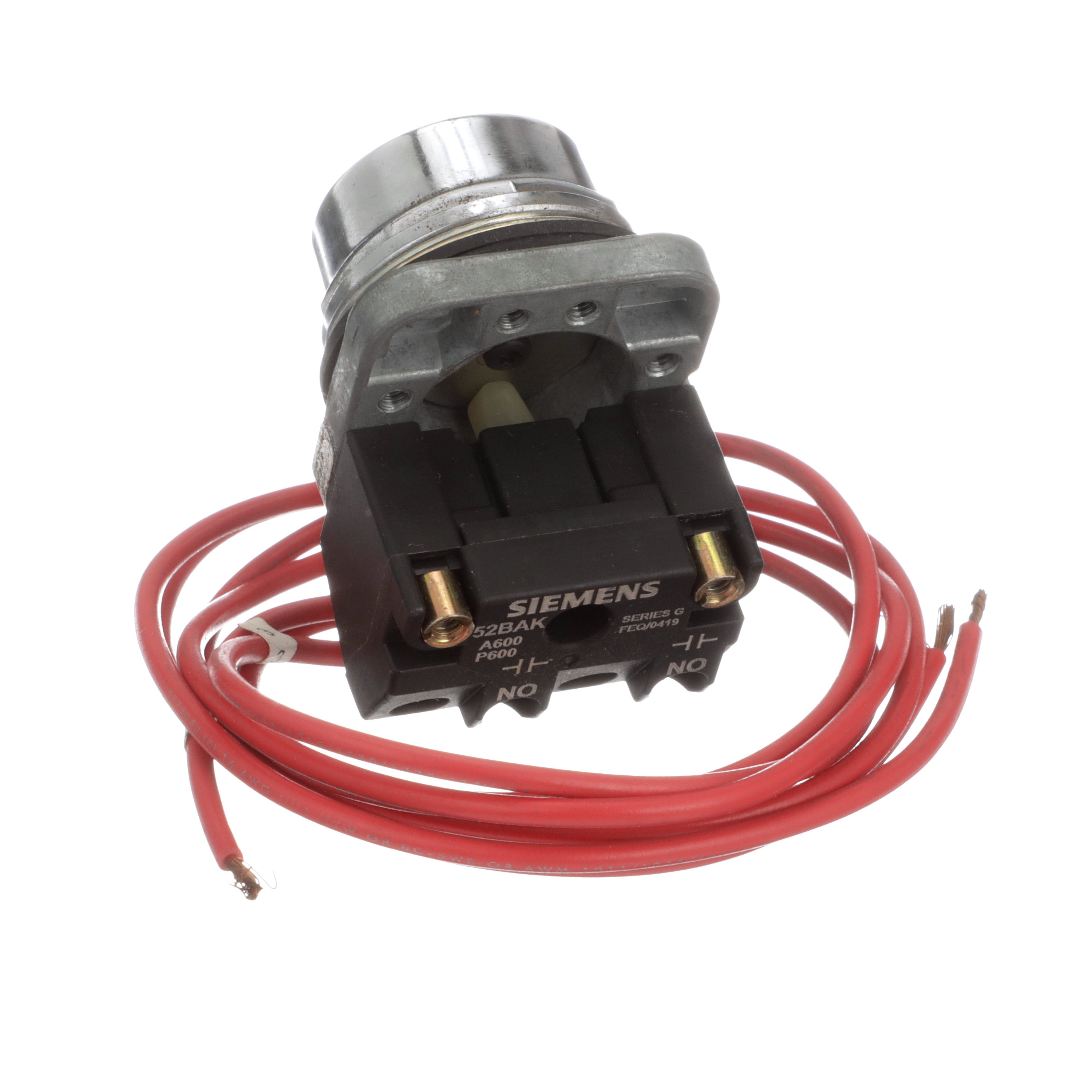

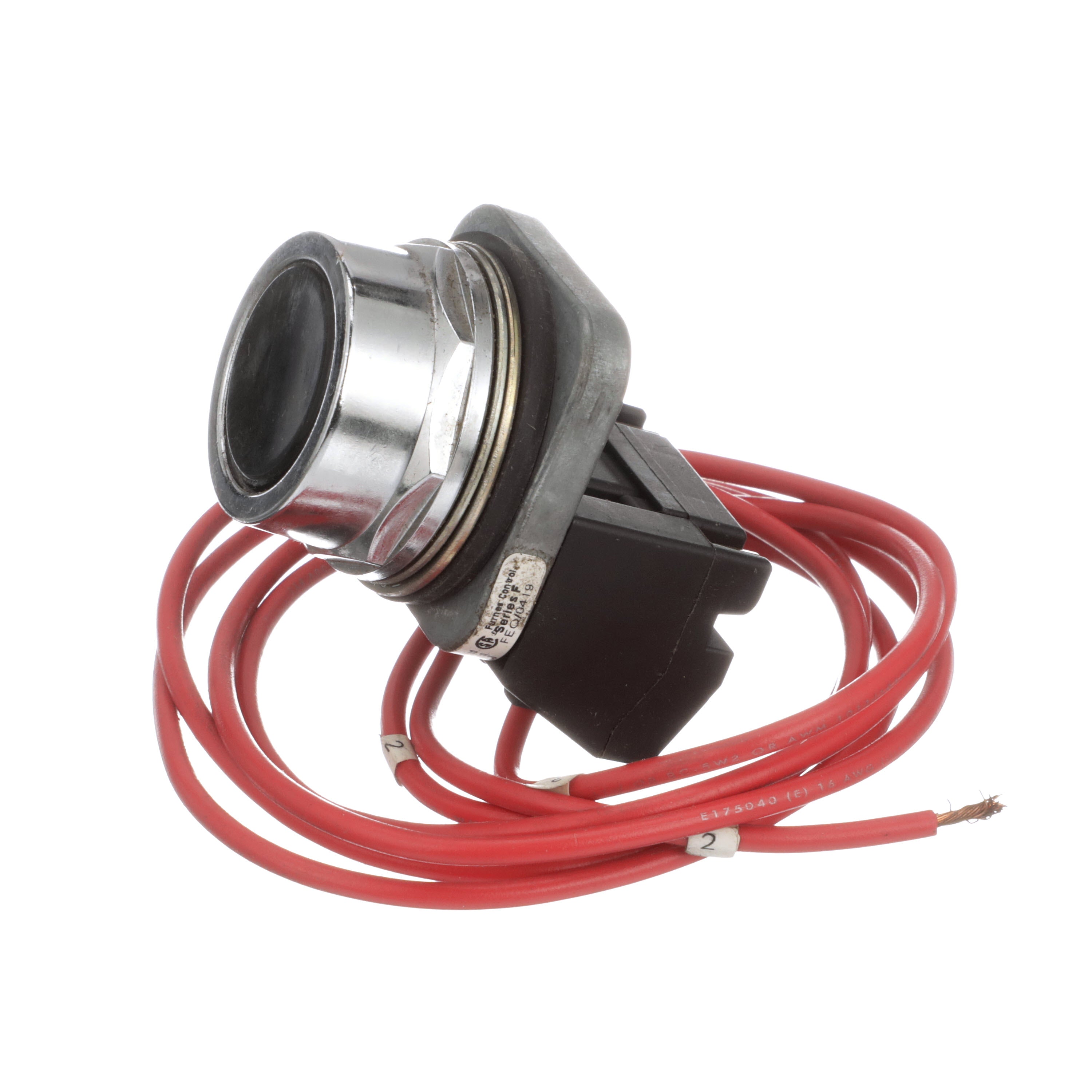

The Siemens 52PA8A1 heavy-duty 30 mm black, flat pushbutton operator with flush cap is for use with a pilot device. The metal enclosure provides strength and durability. Class 52 water and oil-tight rating ensures long life in demanding industrial applications. It meets NEMA Type 3, 4, 4X, 12, and 13 specifications.

• 30 mm black, flat pushbutton operator with flush cap for pilot device
• Metal enclosure for strength and durability
• Class 52 water and oil-tight for long life

Product Highlights

This heavy-duty pushbutton is UL Listed and CSA certified, suitable for controlling the starting and stopping of motors.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PA8A1
• Country of Origin: Germany

Technical Specifications

• Number of Positions: 2
• Series: Command 52
• Size: 30 mm
• Type: Non-Illuminated
• Application: For use with magnetic controllers to control the starting and stopping of motors
• Standard & Approvals: CSA Certified, UL Listed
• Bezel/Housing: Metal
• Color: Black
• Contact Mode: Momentary
• Enclosure Type: NEMA 1/3/3R/4/4X/12/13
• Finish: Polished Chrome
• Actuator: Flush Head
• Brand: Siemens
• Catalog Number: 52PA8A1
• Country of Origin: MX
• Manufacturer: Siemens
• Material: Metal
• Operator Type: Flush
• Standards: UL ListedCSA Certified
• UNSPSC: 39122216
• Part #: 52PA8A1
• Category: Pushbutton
• Model: 52PA8A1
