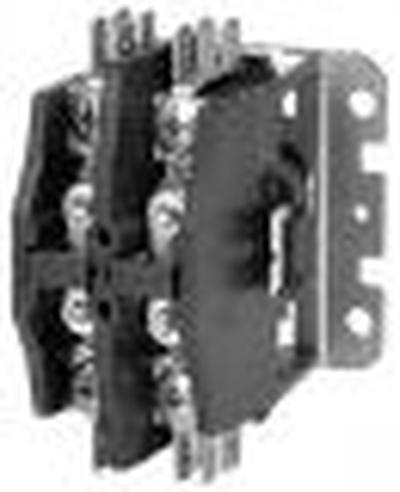

Siemens 45GG20AG Definite Purpose Contactor 600 Volt AC 2 Pole

Product Description

The Siemens 45GG20AG is a definite purpose contactor designed for reliable performance in various applications. It supports a power rating of six hundred volts AC and is suitable for non-reversing operations.

• Two poles with a current rating of forty amps
• Coil voltage range from one hundred ninety to two hundred twenty volts AC
• Open construction with standard NEMA approval

Product Highlights

The Siemens 45GG20AG is efficient in controlling electrical current through a robust design. It is ideal for applications that require dependable switching capabilities.

Product Information

Standard Information

• Manufacturer: Siemens
• UPC: 78308715828
• Status: NonStock

Technical Specifications

• Power Rating/Voltage: 600 Volt AC
• Current Rating: 40 Amp
• Coil Voltage: 190 to 220 Volt AC 50 Hertz, 208 to 240 Volt AC 60 Hertz
• Terminal Type: Screw
• Mounting Position: Vertical
• Overall Dimensions: 1.97 Inch Width x 2.46 Inch Depth x 3.19 Inch Height
• Enclosure: Open Construction
• UL Approval: Yes
