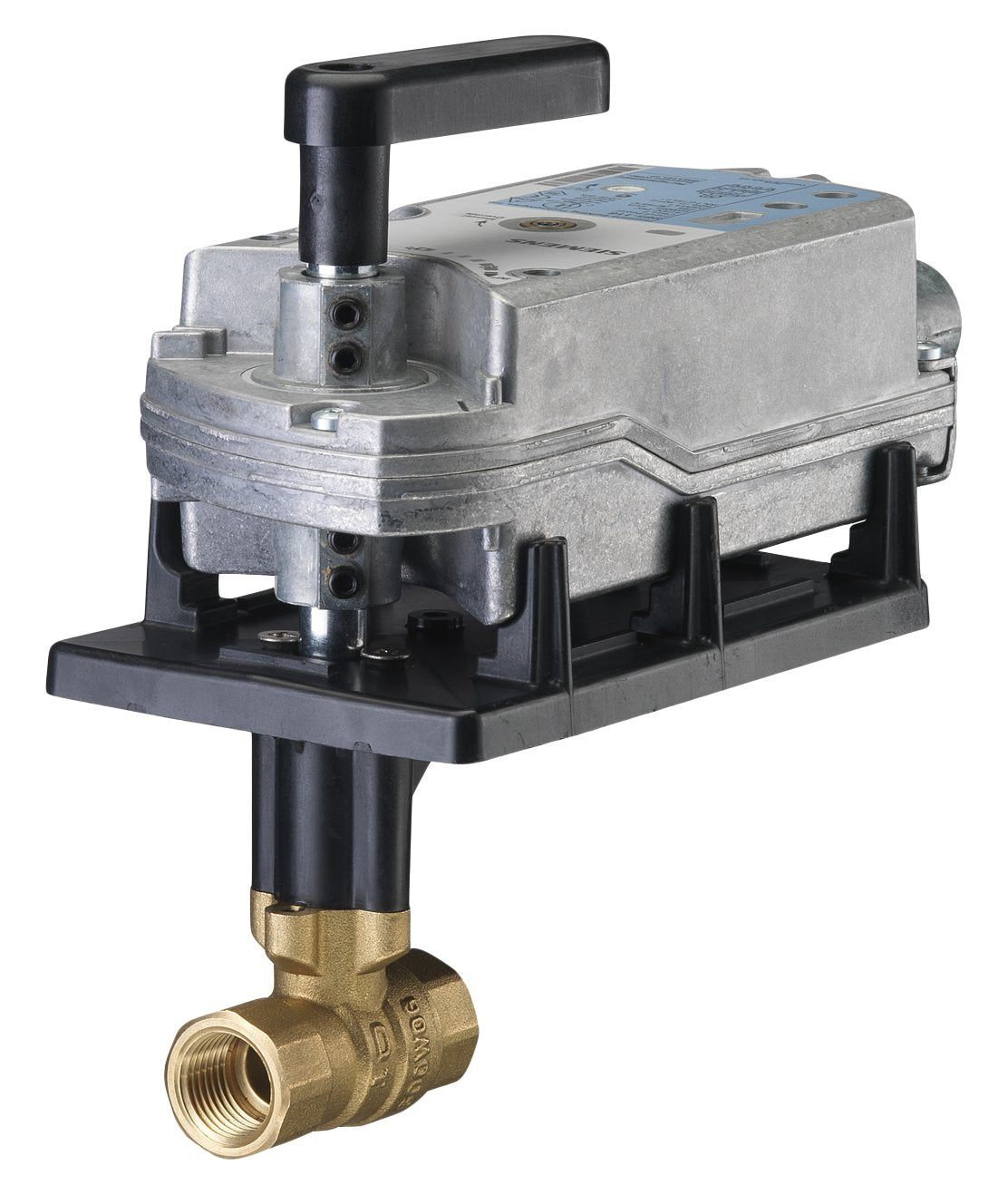

Siemens 171E-10316 Ball Valve Assembly 63 Cv

Product Description

The Siemens 171E-10316 Ball Valve Assembly is expertly designed to provide reliable and efficient flow control in HVAC systems. This assembly features a 1 inch NPT 2-way ball valve and comes equipped with a GMA121.1P actuator, making it suitable for a wide range of applications.

• High-performance chrome-plated brass ball and brass stem
• Robust 200 psi close-off pressure ensures tight sealing
• Fail-safe actuator enhances safety and reliability

Product Highlights

This ball valve is engineered for longevity and optimal performance, featuring ANSI Class IV leakage protection and a body rating of 600, making it ideal for commercial HVAC systems. It supports a maximum temperature of 250 degrees Fahrenheit and offers easy installation with its universal mounting plate.

Product Information

Technical Specifications

• Valve Type: 2-way
• Connection Size: 1 inch FNPT x FNPT
• Material: Brass
• Pressure Rating: 200 psi
• Flow Capacity: 63 Cv
• Actuator Type: Floating, Non-Spring Return
• Voltage: 24 VAC
• Torque: 44 lb-in
