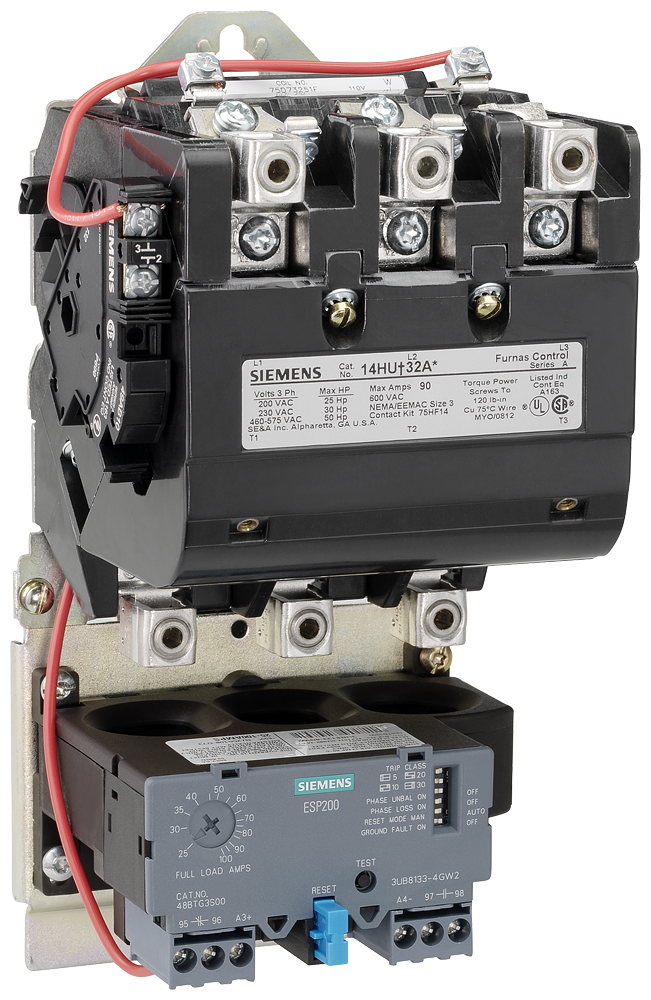

Siemens 14JUH32AF Starter,FVNR SZ4,50-2

Product Description

The Siemens 14JUH32AF is a non-reversing motor starter designed for heavy-duty applications. This three-phase starter operates at full voltage and features a solid-state overload relay. The overload relay has an amp range of fifty to two hundred amperes, making it suitable for various motor sizes. The coil is compatible with one hundred ten volts at fifty hertz and one hundred twenty volts at sixty hertz. This product is an open type and does not include an enclosure.

• Non-reversing design for reliable operation.
• Rated for motor power up to one hundred horsepower.
• CSA certified and UL listed for safety compliance.

Product Highlights

Ideal for industrial applications requiring a robust motor control solution.

Product Information

Standard Information

• Brand: Siemens
• Type: Class 14, Full Voltage Non-Reversing

Technical Specifications

• MPN: 14JUH32AF
• Size: NEMA 4
• Weight: 9 lb
• Length: 7.9 inches
• Width: 13.9 inches
• Height: 7.3 inches
• Voltage: 120 Volt
• Amperage: 135 Amp
• Operating Cycles: 5000000
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Country of Origin: Mexico
