Siemens 14BUB32AJ Starter, Fvnr Sz00, 0.7

Product Description

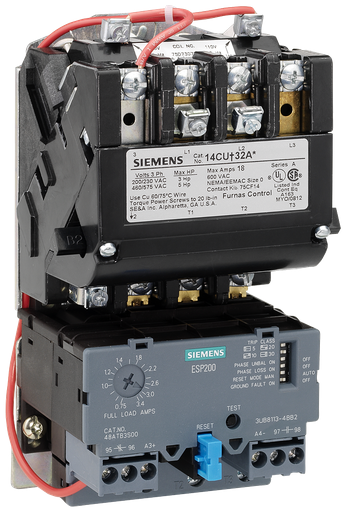

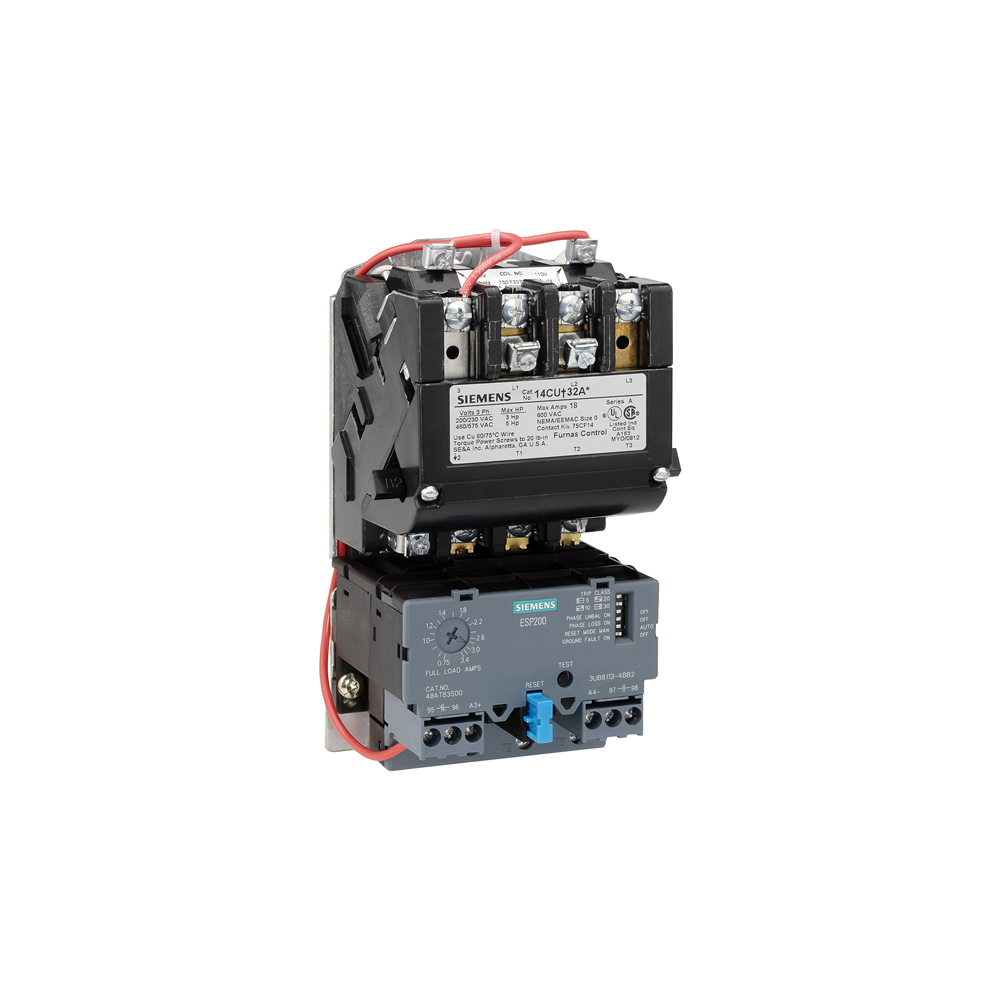

The Siemens 14BUB32AJ is a non-reversing motor starter, size 00, designed for three-phase full voltage applications. It features a solid-state overload relay with an OLR amp range of 0.75-3.4A and a 24VAC 50-60Hz coil. This non-combination type starter has an open enclosure.

• Non-reversing motor starter
• Solid-state overload relay
• Open enclosure

Product Highlights

The Siemens 14BUB32AJ motor starter is ideal for industrial applications requiring reliable motor control and overload protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14BUB32AJ
• Country of Origin: Mexico

Technical Specifications

• Type: Non-combination
• Coil: 24VAC 50-60Hz
• Enclosure: Open
• Size: 00
• Overload Relay: Solid-state
• OLR Amp Range: 0.75-3.4A
• Voltage: Three phase full voltage
• Reversing: Non-reversing
• Amperage: 9 Amp
• Motor Power: 1/2 hp at 200/208 VAC, 3/4 hp at 220/230 VAC, 1-1/2 hp at 460/480 VAC, 2 hp at 575/600 VAC
• Number of Phases: 3 Phase
• Number of Poles: 3 Pole
• Operating Cycles: 10000000
• Power Supply: 600 V
• Brand: Siemens
• Max HP at 200 V: 1/2
• Max HP at 230 V: 3/4
• Max HP at 460 V: 1 1/2
• Replacement Coil: 75D73070J
• Contact Kit (3 required): 75BF14
• Reset Type: Automatic/Manual/Remote
• Coil Voltage: 24V at 60/50Hz
• Frequency Rating: 60
• Operating Temperature: 104
• Wattage: 8.6
• Construction Standard: NEMA 600V AC
• UL Cont. Amps: 9A
• Hp 3-Phase 200V: 0.5 hp
• Hp 3-Phase 230V: 0.75 hp
• Hp 3-Phase 460V: 1.5 hp
• Hp 3-Phase 575V: 2 hp
• Auxiliary Contacts: (1) NO
