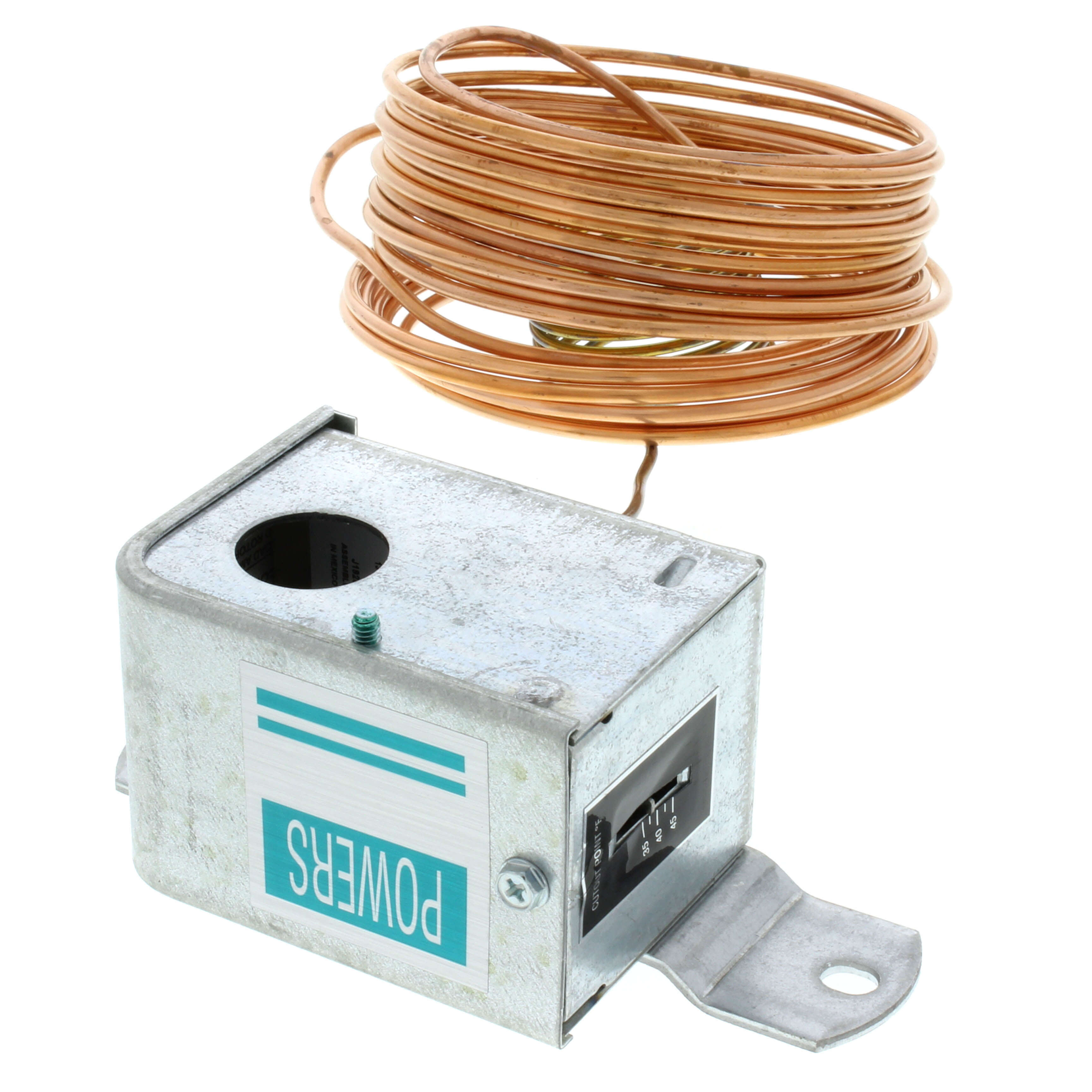

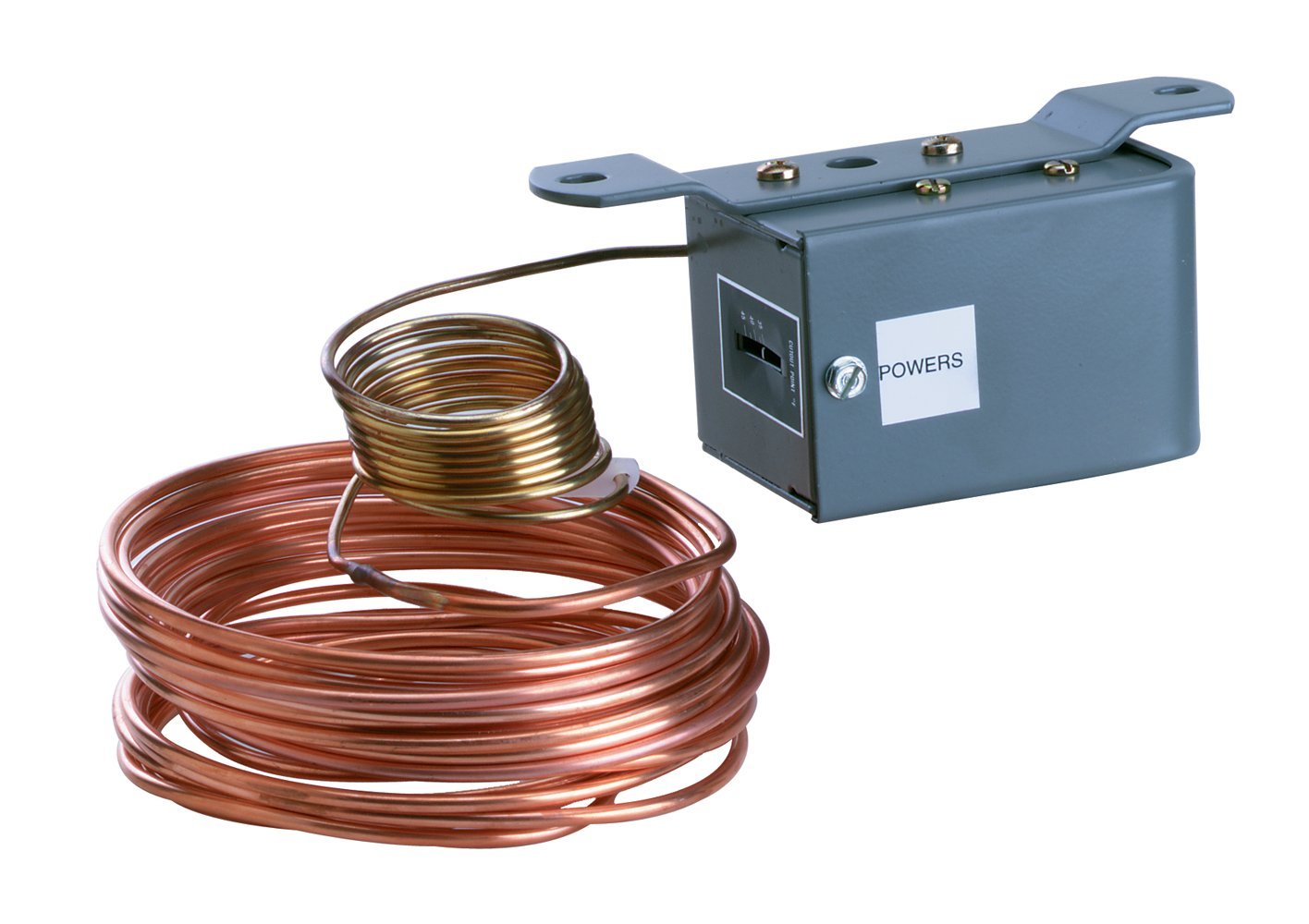

Siemens 134-1510 Electric Low Temperature Detection Thermostat SPDT, Automatic Reset

Product Description

The Siemens 134-1510 Electric Low Temperature Detection Thermostat is a remote bulb device with a Single-Pole Double-Throw (SPDT) switch. It automatically senses low temperatures to prevent freeze-up of hydronic heating coils, cooling coils, and liquid heating pipes.

• Temperature range: 35 to 45°F (2 to 7°C)
• Min differential: 12°F (6.7°C)
• Capillary length: 20 feet with a 1/8 inch bulb and 4 feet capillary

Product Highlights

The Siemens 134-1510 thermostat is ideal for low-temperature applications. It stops the supply fan motor when the temperature at the sensing element falls below the set point. It remains unaffected by ambient temperature if warmer than the set point.

Product Information

Standard Information

• Brand: Siemens
• MPN: 134-1510

Technical Specifications

• Weight: 1.7 lbs
• Temperature range: 35 to 45°F
• Differential: 12°F
• Capillary length: 20 feet
• Switch type: SPDT
• Voltage: 120-240V
• Mounting type: Horizontal
• Enclosure type: Galvanized/Steel
