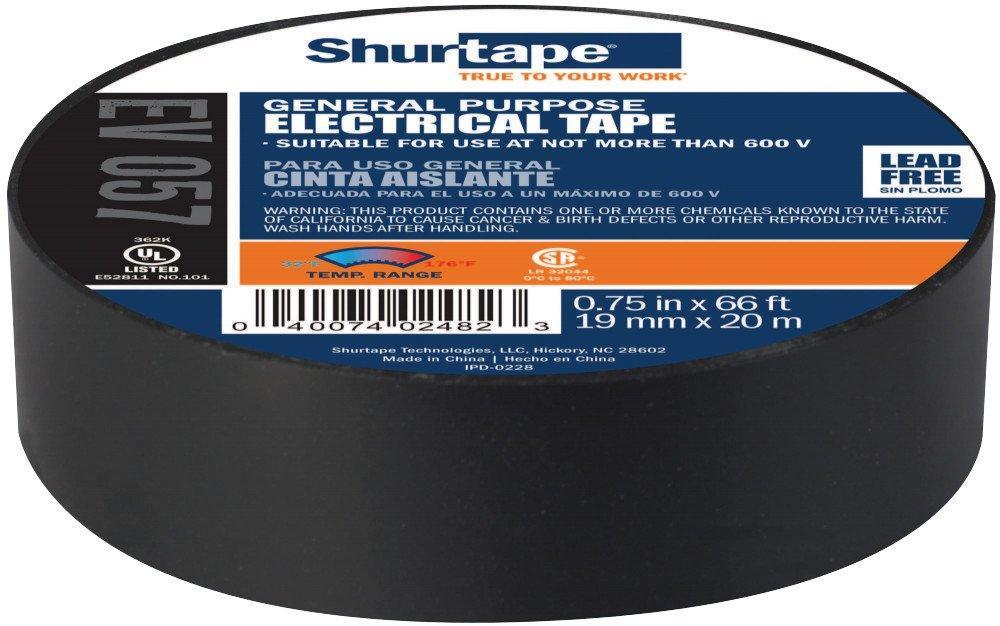

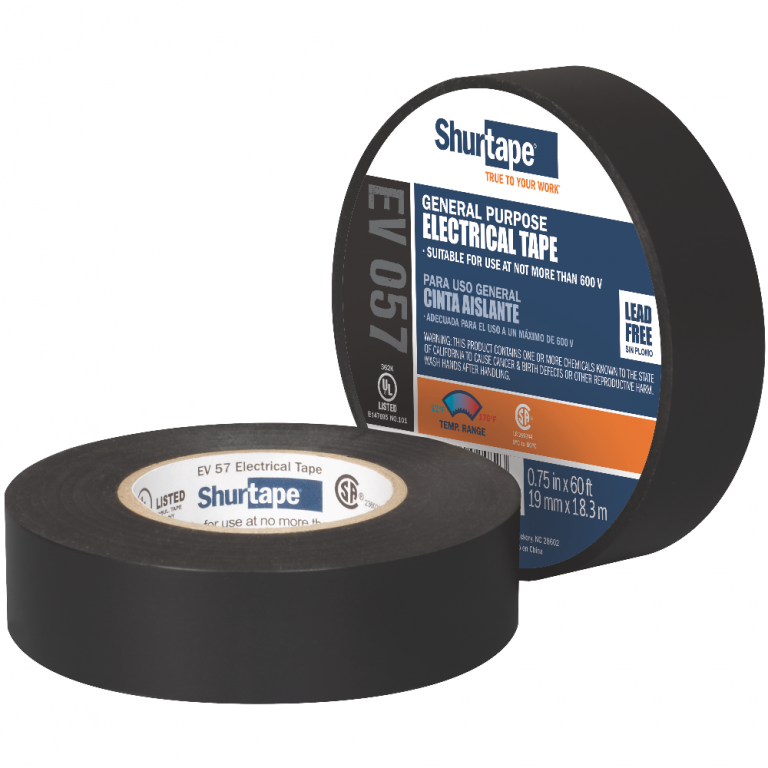

Shurtape EV 57 General Purpose Grade Electrical Tape

Product Description

The Shurtape EV 57 is a grade electrical tape with a thickness of 7.0 mils. It serves multiple mechanical and electrical purposes. This tape is UL Listed and CSA approved, making it reliable for various applications. It holds up well both indoors and outdoors, making it suitable for color-coding, phasing tasks, and more.

• 7.0 mil, general purpose grade electrical tape
• Resistant to UV, oils, acids, alkalies, corrosive chemicals, and water
• PVC backing for durability

Product Highlights

This electrical tape is designed for durability and flexibility, accommodating various applications.

Product Information

Standard Information

• Backing: Monomeric Polyvinylchloride (PVC)
• Adhesive: Non-corrosive, rubber-based

Technical Specifications

• Adhesion to Stainless Steel: 24 oz/in width / 2.63 N/10 mm
• Dielectric Breakdown: 9,100 V
• Dielectric Strength: 1,300 V/mil
• Elongation: 250%
• Service Temperature Range: 32 F to 176 F / 0 C to 80 C
• Tensile: 16 lbs/in width / 28.0 N/10 mm
• Thickness: 7.0 mils / 0.18 mm
• Tape Grade: General Purpose
• Standard Width: ¾ in / 19 mm
• Standard Length: 60 ft / 18.2 m, 66 ft / 20 m
• Applicable Standards: UL Listed, CSA 22.2
• Application: Mechanical and Electrical
• Material: Vinyl
