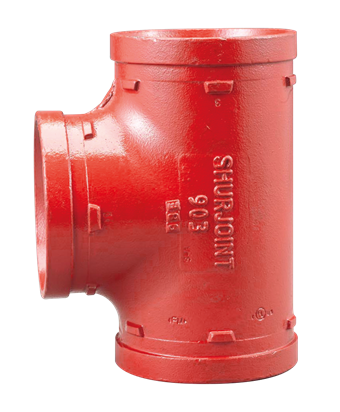

SHURJOINT SJT9038P Fire Tee Short Radius

Product Description

The SHURJOINT SJT9038P is a short radius tee fitting that serves fire protection needs as well as general service applications. It is crafted from ductile iron material compliant with ASTM A536 Grade 65-45-12. This product has grooved ends for easy connections, ensuring reliable performance in various settings.

• Suitable for fire protection and general service.
• Made from durable ductile iron.
• Features grooved ends for secure connections.

Product Highlights

This fitting provides essential connections for piping systems, particularly in fire safety setups. Its design promotes efficiency and reliability in service.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT9038P

Technical Specifications

• Series: Shurjoint
• Product Type: 903
• Shape: T-piece (90 degrees)
• Connection Type: Groove (fitting)
• Material: Ductile iron
• Material Quality: ASTM A536 Grade 65-45-12
• Surface Protection: Lacquered
• Nominal Diameter: DN 200
• Outer Pipe Diameter: 219.1 mm (8.63 inches)
• Length of Connection: 176 mm (6.93 inches)
• Working Length: 176 mm (6.93 inches)
• Main Colour Fitting: Orange
• Certifications: FM, LPCB, ULC, UL, VdS
