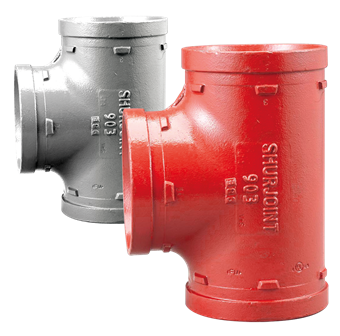

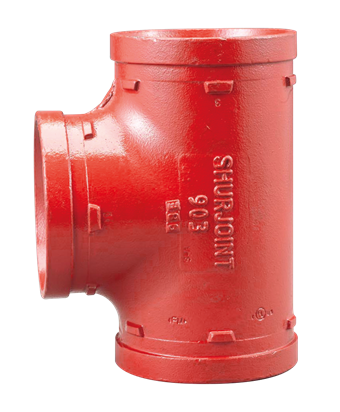

SHURJOINT SJT9033P Short Radius Tee for Fire Protection Applications

Product Description

The SHURJOINT SJT9033P is a short radius tee fitting, ideal for fire protection and general service uses. This fitting has a 90-degree angle and is made from ductile iron to meet ASTM A536 Gr. 65-45-12 standards. It includes grooved ends for strong connections.

• Designed for fire protection applications
• Constructed from durable ductile iron
• Grooved end connections for secure fittings

Product Highlights

The SJT9033P fitting is perfect for use in fire safety and plumbing systems.

Product Information

Standard Information

• Material: Ductile iron (ASTM A536 Gr. 65-45-12)
• Connection Type: Grooved

Technical Specifications

• Fitting Shape: T-piece (90 degrees)
• Nominal Diameter Connection 1: DN 80
• Outer Pipe Diameter Connection 1: 88.9 mm (3.5 inches)
• Length of Connection 1: 86 mm (3.39 inches)
• Weight: 4.41 lb
• Dimensions: 6.77 x 3.50 x 5.16 inches
• Color: Orange
• FM Quality Mark: Yes
• UL Quality Mark: Yes
• ULC Quality Mark: Yes
