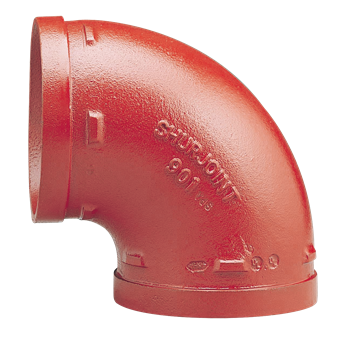

SHURJOINT SJT9012P 90-Degree Short Radius Elbow

Product Description

The SHURJOINT SJT9012P is a ninety-degree short radius elbow designed specifically for fire protection applications and general service. This fitting is made from ductile iron, adhering to ASTM A536 Gr. 65-45-12 standards. It features grooved ends, which enhance connectivity while maintaining compatibility with Shurjoint Model 7707 couplings. The elbow has a lacquered surface treatment and is colored orange.

• Designed for fire protection and general service applications.
• Constructed from ductile iron per ASTM A536 Gr. 65-45-12.
• Features grooved ends for secure connection.

Product Highlights

This elbow is suitable for various piping systems, ensuring efficient flow in tight spaces.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT9012P

Technical Specifications

• Angle: 90 degrees
• Connection 1: Groove
• Connection 2: Groove
• Nominal Diameter Connection 1: DN 50
• Nominal Diameter Connection 2: DN 50
• Outer Pipe Diameter Connection 1: 60.3 mm
• Outer Pipe Diameter Connection 2: 60.3 mm
• Material: Ductile iron per ASTM A536 Grade 65-45-12
• Bend Radius: 60.3 mm
• Length: 100.15 mm
• Max Operating Pressure at 20 °C: 20.1 bar
• Main Color Fitting: Orange
• Quality Marks: FM, LPCB, ULC, UL, and VdS certified
