SHURJOINT SJT77222515PE Model 7722 Mechanical Tee

Product Description

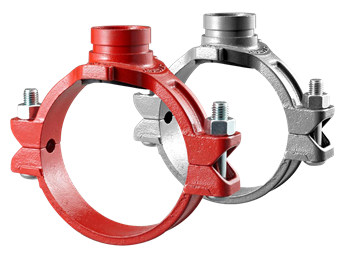

The SHURJOINT Model 7722 Mechanical Tee features a grooved-end branch outlet designed for mounting on pipes. It includes upper and lower segments made from ductile iron, EPDM rubber molded gasket, and plated track bolts and nuts. This mechanical tee is constructed to replace the need for welding or multiple fittings.

• Designed for fast installation on mid-pipe grooved-end branch outlets.
• Reduces labor by eliminating welding requirements.
• Durable construction with ductile iron housing and EPDM gasket.

Product Highlights

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT77222515PE

Technical Specifications

• Product Type: 7722E
• Shape: Tapping saddle
• Connection Type: Groove, Hole
• Sealing Material: EPDM
• Housing Material: Ductile Iron (ASTM A536 65-45-12)
• Nominal Diameter: DN 40
• Suitable for Pipe Diameter: DN 65
• Outer Pipe Diameter: 48.3mm
• Max Operating Pressure: 290 psi
• Min Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
• Width: 82mm
• Length of Connection: 79mm
• VdS Quality Mark: Yes
