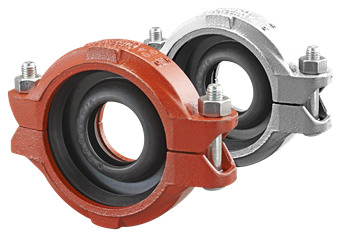

Shurjoint SJT770686PE Model 7706 8 x 6 Inch Reducing Coupling

Product Description

The Shurjoint Model SJT770686PE is an eight by six-inch reducing coupling, designed for effective reduction in piping systems. It eliminates the need for additional concentric reducers and couplings, simplifying installation. The coupling features a rubber gasket that prevents smaller pipes from slipping into larger ones during vertical setups. This product comprises two identical housing segments, an EPDM rubber gasket, and durable plated track bolts and nuts. The housing segments are finished with a protective coating to withstand environmental factors.

• Grooved end style connection for secure attachment.
• Constructed from ductile iron for strength.
• Designed with a painted finish for corrosion resistance.

Product Highlights

The product is suitable for various applications in plumbing and HVAC systems where pipe diameter reduction is necessary.

Product Information

Standard Information

• Brand: Shurjoint
• MPN: SJT770686PE

Technical Specifications

• Fitting Type: Reducing Coupling
• Size: Eight by six inches
• End Style: Grooved
• Material: Cast iron (ASTM A536 65-45-12)
• Sealing Material: EPDM rubber
• Operating Temperature: -29°F to 230°F
• Length: 2.09 inches
• Connection Type: Ribbing groove (both connections)
• Quality Marks: cULus Listed, FM Approved, LPCB Certified, VdS Approved, ULC quality mark, UL quality mark
