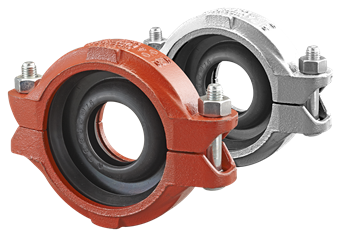

Shurjoint SJT7706215PE Reducing Coupling

Product Description

The Shurjoint model SJT7706215PE is a reducing coupling designed for direct reduction in piping runs, eliminating the need for extra fittings. It uses a rubber gasket to keep smaller pipes stable and prevent them from sliding into larger pipes during vertical installation.

• Direct reduction on piping runs.
• Includes EPDM rubber gasket.
• Composed of two housing segments with plated bolts and nuts.

Product Highlights

This reducing coupling is suited for various piping applications, allowing efficient transitions between pipe sizes.

Product Information

Standard Information

• Brand: Shurjoint
• MPN: SJT7706215PE

Technical Specifications

• Product Type: Reducing Coupling
• Shape: Straight, reducer
• Connection Type: Groove
• Material: Cast iron (ASTM A536 65-45-12)
• Sealing: EPDM
• Size: Two inches x one and one-half inches
• Min. Medium Temperature: Negative twenty-nine degrees Fahrenheit
• Max Medium Temperature: Two hundred thirty degrees Fahrenheit
