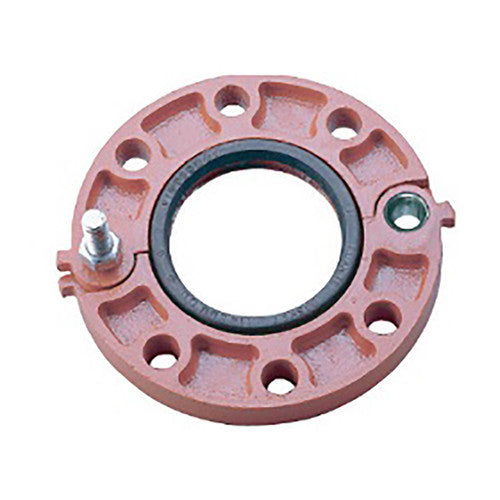

Shurjoint 7041 Grooved Flange Adapter ANSI Class 125/150

Product Description

The Shurjoint 7041 Grooved Flange Adapter offers a reliable connection to ANSI class 125/150 flanges. This adapter features a specially engineered gasket for seamless transition from grooved systems to flanged components. The design consists of two segments for quick and straightforward installation. The housing has a standard orange-painted finish.

• Direct connection to ANSI class 125/150 flanges
• Special gasket for transitioning from grooved to flanged systems
• Two-segment design for easy installation

Product Highlights

Product Information

Standard Information

• Flange adapter: ANSI Class 125/150
• Max working pressure: 300 PSI

Technical Specifications

• Gasket: Grade E EPDM
• Max temperature range: -30 degrees F to 230 degrees F
• Material: Ductile Iron per ASTM A536, Gr. 65-45-12
• Bolts: Plated hex per ASTM A307
• Potable water service: Up to 180 degrees F
• Suitable for: Acid water, chlorine water, deionized water, seawater, wastewater, dilute acids
• Not recommended for: Petroleum oils, mineral oils, solvents
• Warranty: 10 Year limited warranty
