Shoemaker Manufacturing SD34-14X4G-16 Spiral Pipe Diffuser Double Deflection

Product Description

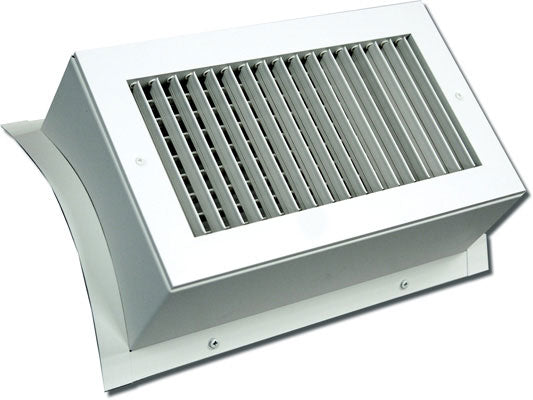

Shoemaker Manufacturing SD34-14X4G-16 is a spiral pipe transition-style double-deflection diffuser designed for surface mounting to spiral duct. It has an extruded aluminum surface-mount frame and a curved saddle to fit spiral radius, with a neoprene open-cell gasket for an airtight fit. Nylon bushings permit blade adjustment to enable 4-way airflow; front blades run parallel to the shortest dimension and back blades run parallel to the longest. Galvanized finish.

• Transition box style spiral mount with neoprene open-cell gasket for airtight surface mounting
• Extruded aluminum surface-mount frame with curved saddle to fit spiral radius and blade orientation for directional control
• Nylon bushings allow blade adjustment enabling 4-way airflow; galvanized finish

Product Highlights

Transition-style spiral pipe diffuser with extruded aluminum frame, neoprene gasket, adjustable blades for 4-way airflow, and galvanized finish.

Product Information

Standard Information

• Brand: SHOEMAKER MANUFACTURING
• Manufacturer Part Number: SD34-14X4G-16
