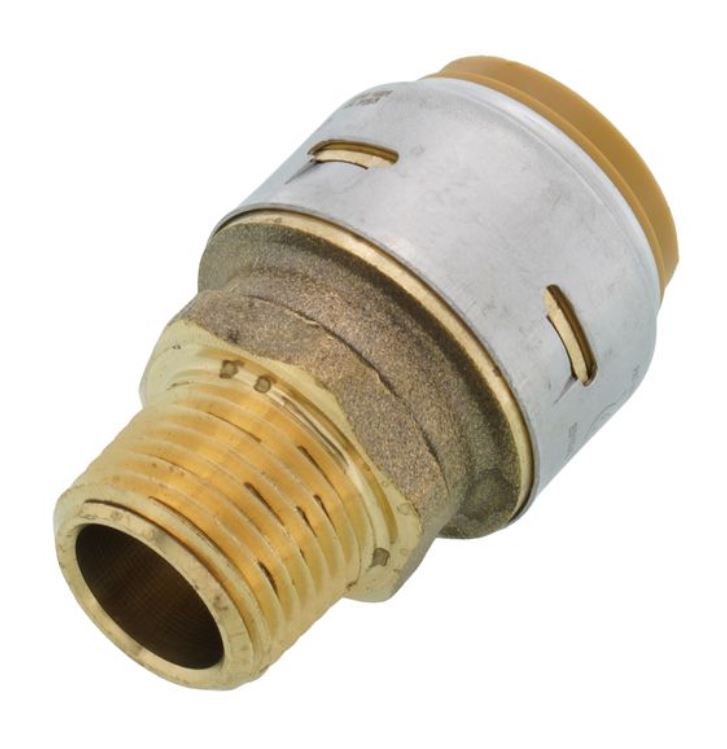

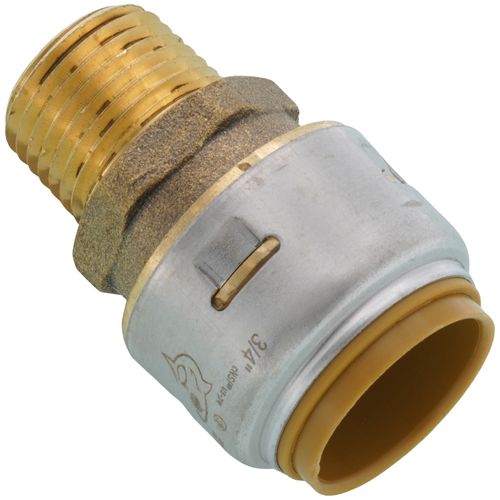

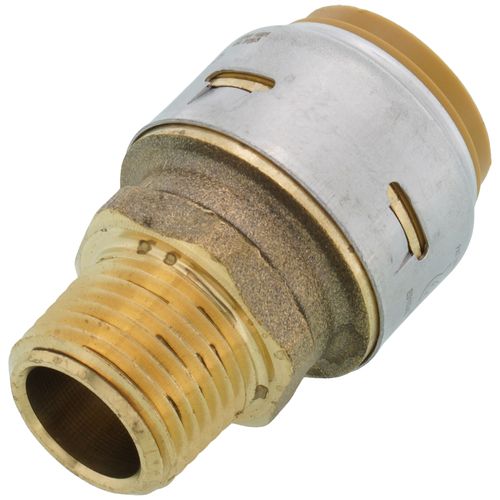

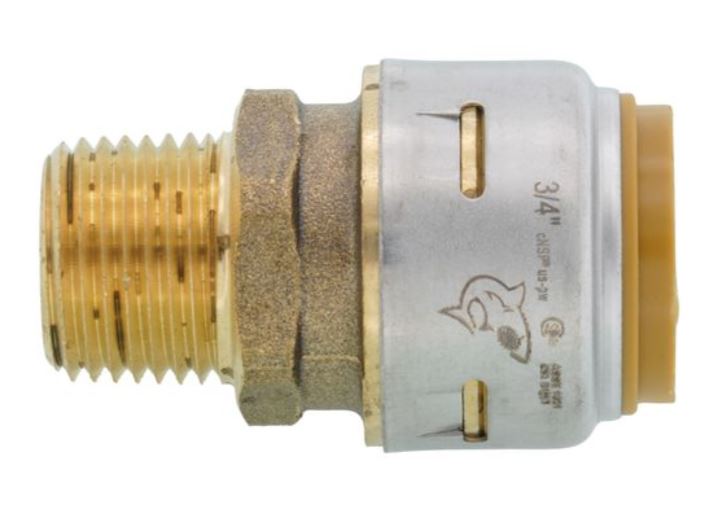

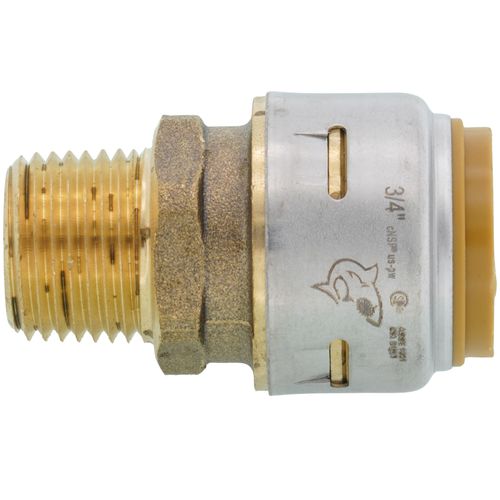

Sharkbite UR138 Max MNPT Bullnose Adapter (3/4 x 1/2)

Product Description

The SharkBite UR138 is a Max push-fit bullnose adapter that converts a 3/4-inch CTS push-fit connection to a 1/2-inch MNPT male thread. Constructed from dezincification-resistant (DZR) brass, it fits OD-controlled copper, CPVC, and PEX tubing and has a 1-1/8-inch insertion depth. Certified to ANSI/NSF-61 and IAPMO, it is rated to 200 psi and 200�F.

• Instant push-fit connection (no soldering) compatible with OD-controlled copper, CPVC, and PEX; 1-1/8" insertion depth
• DZR brass construction with integrated design (no loose components); approved for underground burial when wrapped with silicone wrap 25406A
• Certified to ANSI/NSF-61, IGC 188, and IAPMO; rated to 200 psi/200�F

Product Highlights

Max push-fit bullnose adapter 3/4 in to 1/2 in MNPT; DZR brass; 200 psi/200�F; ANSI/NSF-61 and IAPMO certified; 1-1/8 in insertion depth

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR138
• Country of Origin: Australia

Technical Specifications

• Brand: SharkBite
• MPN: UR138
• Type: Push-to-Connect Adapter
• Fitting Type: Bullnose Adapter
• Connection Side A: Push-Fit, 3/4 in (CTS)
• Connection Side B: Male National Pipe Thread (MNPT), 1/2 in
• Compatible Tubing: OD controlled copper, CPVC, PEX
• Material: DZR brass (lead-free)
• Insertion Depth: 1-1/8 in
• Maximum Pressure: 200 psi
• Maximum Temperature: 200 deg F (93 deg C)
• Standards Met: ANSI/NSF-61, IGC 188, IAPMO; meets UPC, IPC, cUPC
• Design: Integrated (no loose components)
• Underground Burial: Approved when wrapped with silicone wrap 25406A
• Pre-Applied Thread Sealant: No
• Dimensions: 2.1 in L x 1.3 in W
• Item Weight: 0.16 lb
• Country of Origin: Australia
