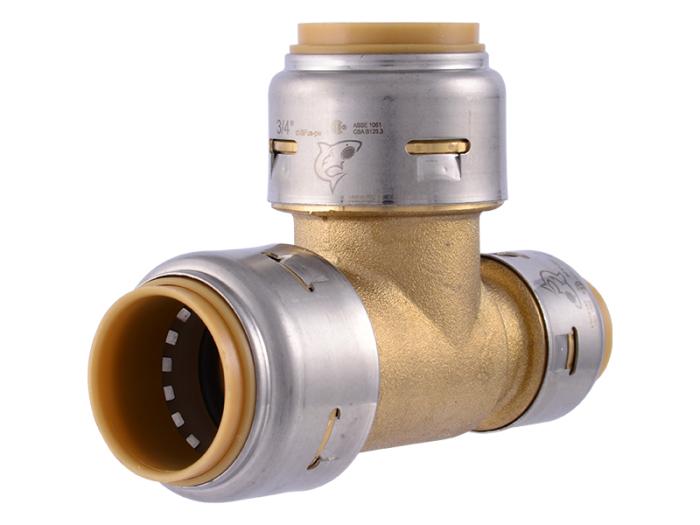

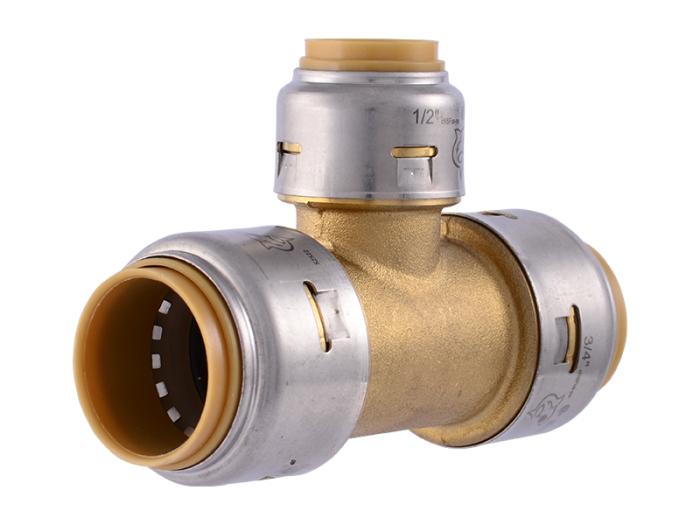

SHARK UR416 Max Push Reducing Tee

Product Description

The SHARK UR416 Max Push Reducing Tee is a fitting designed to connect different sizes of pipes. This fitting is compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipes. It features a push-fit connection requiring no soldering, gluing, or crimping, simplifying installation. The fitting is certified for a maximum pressure of 200 PSI and a maximum temperature of 200 degrees F.

• Connects multiple pipe types including PEX and copper
• Ideal for both underground and behind-the-wall applications
• Constructed from DZR lead-free brass

Product Highlights

This fitting is versatile, reliable, and easy to install, making it suitable for various plumbing tasks.

Product Information

Standard Information

• Brand: SHARK
• MPN: UR416

Technical Specifications

• Fitting Size: 1 inch x 1 inch x 3/4 inch
• PEX Size: 3/4 inch
• Material: DZR Brass
• Fitting System Compatibility: Push Fit
• Maximum Temperature: 200°F
• Maximum Pressure: 200 PSI
• Lead Free: Yes
• Insertion Depth: 1-1/8 inch
• Approvals & Listings: ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372
• Warranty: 25 Year
